$2,102.37The Story

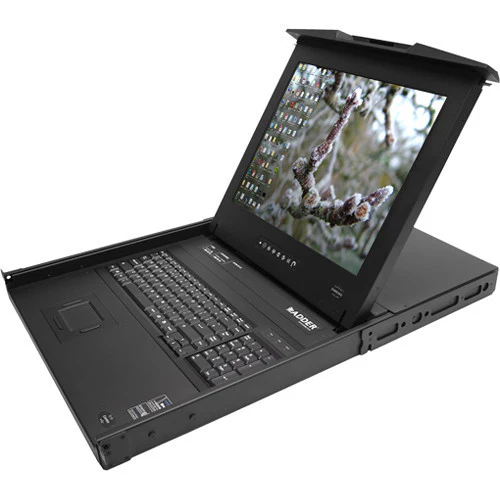

The AdderView RDX 5000IP is the complete server room solution with local and remote management. The 1 U keyboard tray is available in most keyboard language layouts and features a premium quality Samsung SXGA 1280 x 1024 TFT LCD panel with touch pad control and advanced OSD for device selection. Control 16 computers directly from the tray together with 4 secure IP users. Expand to support up to 256 computers using CATx 5000 switches.
Using Adder's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.
- Key Features
-
- 4 simultaneous IP users
- Multi-platform capability and connectivity
- Serial console server (SCS)
- RS232 port
- Configuration and extension
- Ecopulse circuitry
- Encryption and authentication
- Flexible screen scaling
- 4 simultaneous IP users

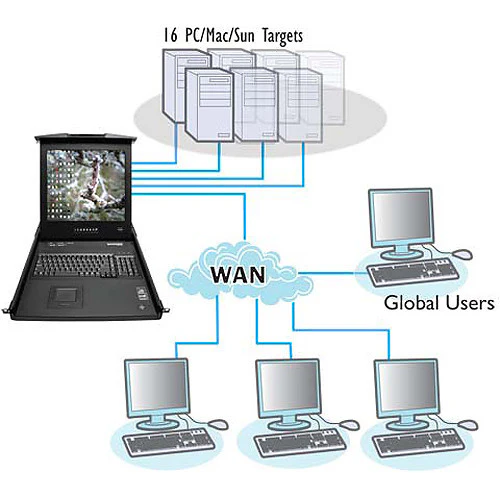

- It enables 4 simultaneous global users to connect via IP to any of the 16 connected computers.
- Serial console server (SCS)
- AdderView RDX can also be used as a serial console simply by attaching the CatX-Console computer access module. This gives you out of band access to command line interface (CLI) devices as well as console access to network switches.
- RS232 port
- Integrated RS232 gives you the ability to control other external devices such as power management devices.
- Configuration and extension
- The AdderView RDX 5000 enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch. A CATx5000 can be cascaded from the unit to enable control of 256 computers from 64 IP users.
- Ecopulse circuitry
- Ecopulse powers down unnecessary circuits when not required reducing power requirements. Over the life of the product this will save significant power.
- Encryption and authentication
- The enterprise grade integrated KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.
- Flexible screen scaling
- Adder solutions provide point-and-click screen scaling, so that users can quickly accommodate target devices running any size display with any aspect ratio. Adder solutions also allow users to easily override scaling if and when they require unscaled pixel-to-pixel mapping.
| General | |
|---|---|
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 19" |
| Native Resolution | 1280 x 1024 |
| Dimensions (WxDxH) | 23.2 in x 25.6 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 37.48 lbs |
| Input | |
|---|---|
| Type | Keyboard |
| KVM | |
|---|---|
| Type | KVM switch - 16 ports |
| Keyboard / Mouse Interface | PS/2, USB |
| Connectivity | |
|---|---|
| Interfaces | VGA Keyboard (PS/2) Keyboard (USB) |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC |
| Localization | United States |
| Power | |
|---|---|
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 95 �F |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The AdderView RDX 5000IP is the complete server room solution with local and remote management. The 1 U keyboard tray is available in most keyboard language layouts and features a premium quality Samsung SXGA 1280 x 1024 TFT LCD panel with touch pad control and advanced OSD for device selection. Control 16 computers directly from the tray together with 4 secure IP users. Expand to support up to 256 computers using CATx 5000 switches.
Using Adder's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.
- Key Features
-
- 4 simultaneous IP users
- Multi-platform capability and connectivity
- Serial console server (SCS)
- RS232 port
- Configuration and extension
- Ecopulse circuitry
- Encryption and authentication
- Flexible screen scaling
- 4 simultaneous IP users
- It enables 4 simultaneous global users to connect via IP to any of the 16 connected computers.
- Serial console server (SCS)
- AdderView RDX can also be used as a serial console simply by attaching the CatX-Console computer access module. This gives you out of band access to command line interface (CLI) devices as well as console access to network switches.
- RS232 port
- Integrated RS232 gives you the ability to control other external devices such as power management devices.
- Configuration and extension
- The AdderView RDX 5000 enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch. A CATx5000 can be cascaded from the unit to enable control of 256 computers from 64 IP users.
- Ecopulse circuitry
- Ecopulse powers down unnecessary circuits when not required reducing power requirements. Over the life of the product this will save significant power.
- Encryption and authentication
- The enterprise grade integrated KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.
- Flexible screen scaling
- Adder solutions provide point-and-click screen scaling, so that users can quickly accommodate target devices running any size display with any aspect ratio. Adder solutions also allow users to easily override scaling if and when they require unscaled pixel-to-pixel mapping.
| General | |
|---|---|
| Display Type | KVM console / TFT active matrix |
| Diagonal Size | 19" |
| Native Resolution | 1280 x 1024 |
| Dimensions (WxDxH) | 23.2 in x 25.6 in x 1.7 in |
| Height (Rack Units) | 1U |
| Weight | 37.48 lbs |
| Input | |
|---|---|
| Type | Keyboard |
| KVM | |
|---|---|
| Type | KVM switch - 16 ports |
| Keyboard / Mouse Interface | PS/2, USB |
| Connectivity | |
|---|---|
| Interfaces | VGA Keyboard (PS/2) Keyboard (USB) |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC |
| Localization | United States |
| Power | |
|---|---|
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 95 �F |
