4ms SCM Plus Clock Multiplier Eurorack Module (12 HP)
HomeStore

4ms SCM Plus Clock Multiplier Eurorack Module (12 HP)

4ms SCM Plus Clock Multiplier Eurorack Module (12 HP)

$95.83

Original: $319.44

-70%
4ms SCM Plus Clock Multiplier Eurorack Module (12 HP)—

$319.44

$95.83

The Story

4ms SCM+ Overview

Create dynamic clocking patterns that cycle through chaos with the 4ms SCM Plus, a clock multiplier with eight gate outputs and complex beat manipulation features in a 12HP Eurorack module. The SCM+ combines the functionality of the original Shuffling Clock Multiplier (SCM) with the SCM Breakout (SCMBO) with higher precision hardware.

The module features five slipped/shuffled/skipped clock outputs and three steady clock outputs (x1, x2, x8). The five knobs with CV control offer a variety of functions including rotate, slip, shuffle, skip, and PW. Additionally, a 4x Fast button with gate trigger multiplies all outputs by x4, while the Mute button and gate trigger stop all outputs. The SCM+ ships with a ribbon power cable and mounting screws.

Clocking Functions
  • Eight gate outputs, each multiplying up to x32
  • Five slipped/shuffled/skipped clock outputs and three steady clock outputs
  • Five knobs with CV jacks:
    • Rotate shifts multiply-by amount
    • Slip causes particular beats to land ahead in time
    • Shuffle selects which beats are affected by Slip
    • Skip omits certain beats in a pattern
    • Pulse Width controls width of output pulses
  • Resync trigger input resets the slip/shuffle/skip counters
  • 4x Fast button and gate jack increase multiply-by amount by a factor of four
  • Mute button and gate jack stop all outputs
Advanced Features
  • Save Clock feature restores last saved tempo when powering up
  • Clock Bus jumper allows module to receive tempo from other modules over the power bus
  • Free Run jumper allows unit to operate without an external clock
  • LED dimmer trimpot allows for custom LED brightness



Eurorack Ready
  • 12 HP Eurorack format module
  • Maximum Depth: 0.95" (24mm)
  • Includes power ribbon cable with 16-pin Eurorack power header
  • Power consumption: +12V: 52mA, -12V: 15mA

In the Box

  • 4ms SCM Plus Clock Multiplier Eurorack Module (12 HP)
  • Eurorack Ribbon Power Cable
  • Set of Mounting Screws
  • Limited 1-Year Manufacturer Warranty

Not in the Box

Additional Resources

    4ms SCM+Specs

    Key Specs
    Sound Generation
    Digital
    Maximum Polyphony
    Not Specified by Manufacturer
    Audio I/O
    No
    MIDI I/O
    No
    CV/Gate I/O
    8x 1/8" / 3.5 mm TS Gate Output
    5x 1/8" / 3.5 mm TS CV Input
    4x 1/8" / 3.5 mm TS Gate/Trigger Input
    Patch Points
    No
    Eurorack Current Consumption
    52 mA on +12 V Rail
    15 mA on -12 V Rail
    Horizontal Pitch
    12 HP
    General
    Item Type
    Eurorack Module
    Sound Generation
    Digital
    Keyboard
    No
    Expression Controls
    No
    Number of Pads
    No
    Display
    No
    Sounds
    Maximum Polyphony
    Not Specified by Manufacturer
    Built-In Effects
    Yes
    Built-In Speaker
    Yes
    Synthesis
    Oscillators
    No
    Mixer
    No
    Amplifiers
    No
    Envelopes
    No
    Filters
    No
    Sequencing & Recording
    Sequencer
    No
    Arpeggiator
    No
    Connectivity
    Audio I/O
    No
    Pedal Support
    No
    MIDI I/O
    No
    CV/Gate I/O
    8x 1/8" / 3.5 mm TS Gate Output
    5x 1/8" / 3.5 mm TS CV Input
    4x 1/8" / 3.5 mm TS Gate/Trigger Input
    Control Voltage Level
    Trigger In: +2.5 V
    Gate Out: 12 V
    CV In: 0 to +3.3 V
    CV In: -5 to +5 V
    Patch Points
    No
    Sync I/O
    No
    Network I/O
    No
    USB I/O
    No
    Media/Memory Card Slot
    No
    Audio Performance
    Included Software
    No
    Mobile App Compatible
    No
    Power
    Power Requirements
    Eurorack Power
    Eurorack Current Consumption
    52 mA on +12 V Rail
    15 mA on -12 V Rail
    Physical
    Color
    Black
    Horizontal Pitch
    12 HP
    Included Accessories
    No
    Packaging Info
    Package Weight
    0.39 lb
    Box Dimensions (LxWxH)
    5.7 x 4.8 x 3.2"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

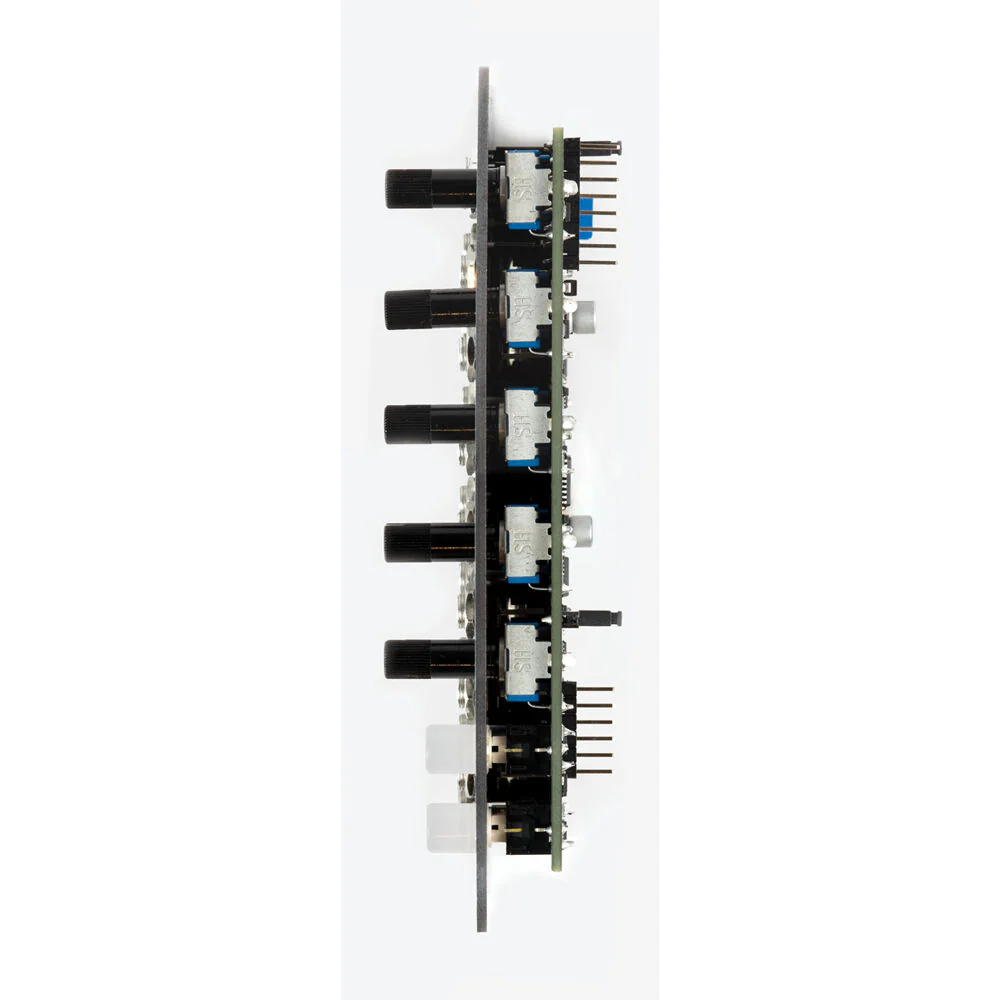

    4ms SCM Plus Clock Multiplier Eurorack Module (12 HP) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

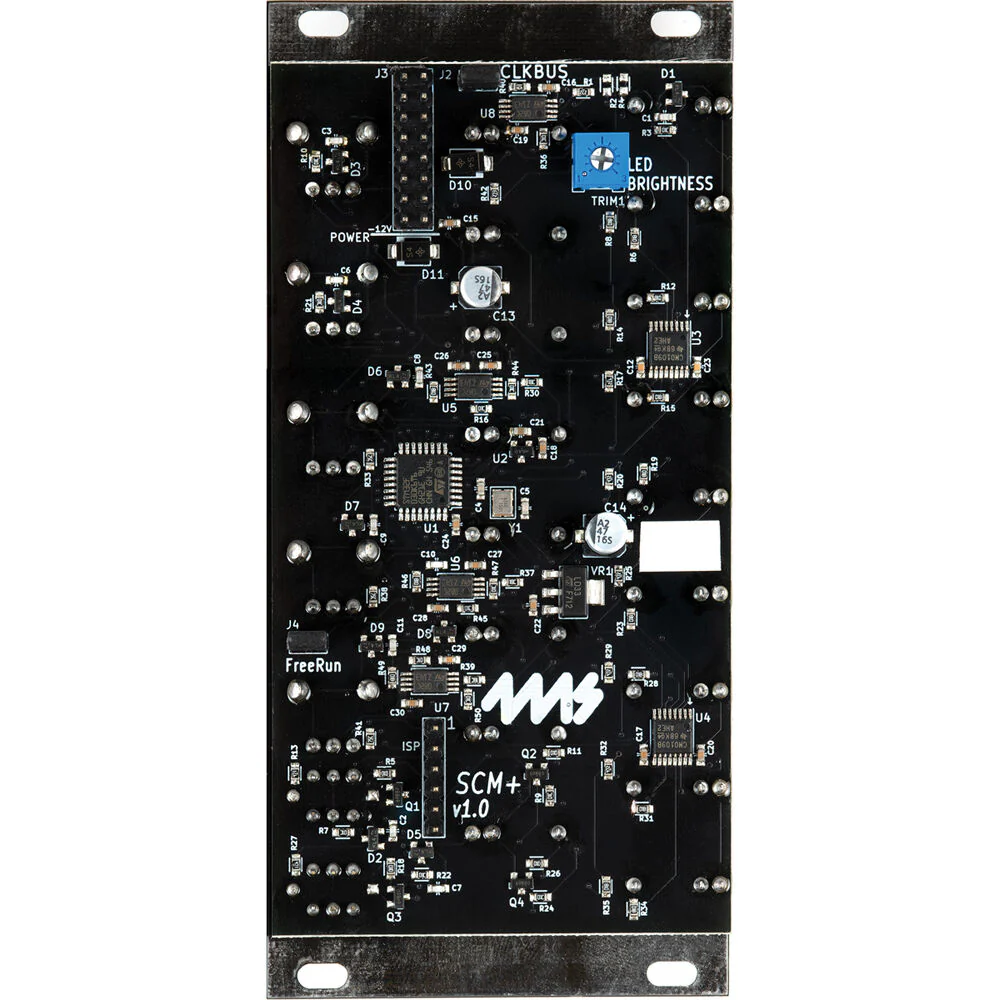

    4ms SCM Plus Clock Multiplier Eurorack Module (12 HP) - Image 3
