$331.66The Story
1010music 22 Overview
Deliver powerful sampling and audio mangling for Eurorack with the 1010 Music bitbox mk2, an intuitive sampler that adds recording, sample playback, clip launching, slicing, granular sounds, and musically intelligent looping capabilities to your Eurorack rig. With its integrated 3.5" touchscreen that's designed to simplify selecting, editing, and tweaking your samples, the bitbox mk2 allows you to tweak and save your configurations for future use.
You can stream large samples of up to 4GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. You can also download fxbox and synthbox firmware from the 1010 Music forum and install it on your bitbox mk2 to get three modules in one. Swap to the fxbox firmware to get effects processing, or the synthbox firmware to play with wavetable synthesis. The bitbox mk2 includes a 3.5mm to DIN MIDI adapter and a ribbon cable.
Sample Playback
- Play up to 24 polyphonic notes when your samples fit in the 64MB of internal memory or up to 8 larger samples streaming directly from the microSD card
- Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
- Stream long samples from the microSD card with a max sample size of 4GB, which can be many hours of audio
- Trigger samples with the touch screen, CV gate inputs, or MIDI input
- Use MIDI for polyphonic playback of samples or slices
- Use MIDI to control sample recording
- Control how samples start and stop by choosing from trigger, toggle, and gate launch modes
- Tweak playback through a variety of sample parameters, including start position, length, pitch, level, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping
Sample Recording
- Record samples from a stereo audio input pair
- Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
- Trigger recording via audio level threshold
- Create perfectly sized loops by setting the recording length
- Enable immediate playback after recording for live looping capabilities
- Make recordings up to four hours in length
- Store recorded samples as WAV files on the microSD card, then remove the card to transfer them to your computer
Sample Modes
- Trigger one shots or launch loops using sample mode
- Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
- Play time-synchronized loops with constant pitch time shifting in clip mode

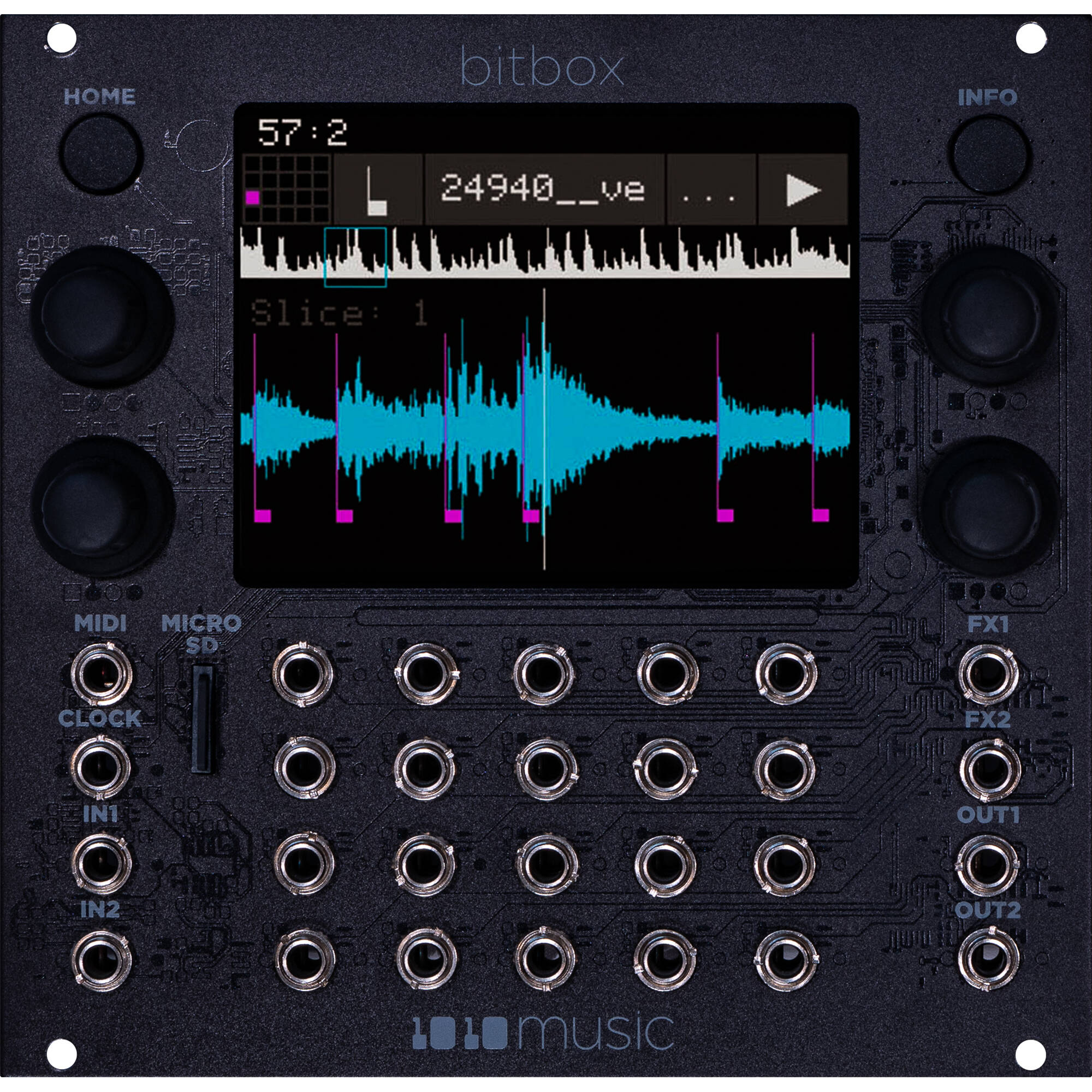

- Skip between slices of a WAV using slicer mode
- Create rich textures and other worldly sounds with granular mode
External Control and Synchronization
- Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
- Trigger each pad independently through a dedicated gate input
- Use MIDI to trigger pads via a note per pad
- Play a single or multisample pad pitch, shifted using MIDI notes or CV
- Trigger different sample slices using MIDI notes or CV
- Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
- Quickly set up MIDI modulation using Learn mode?no need to look up CC numbers
Module Features

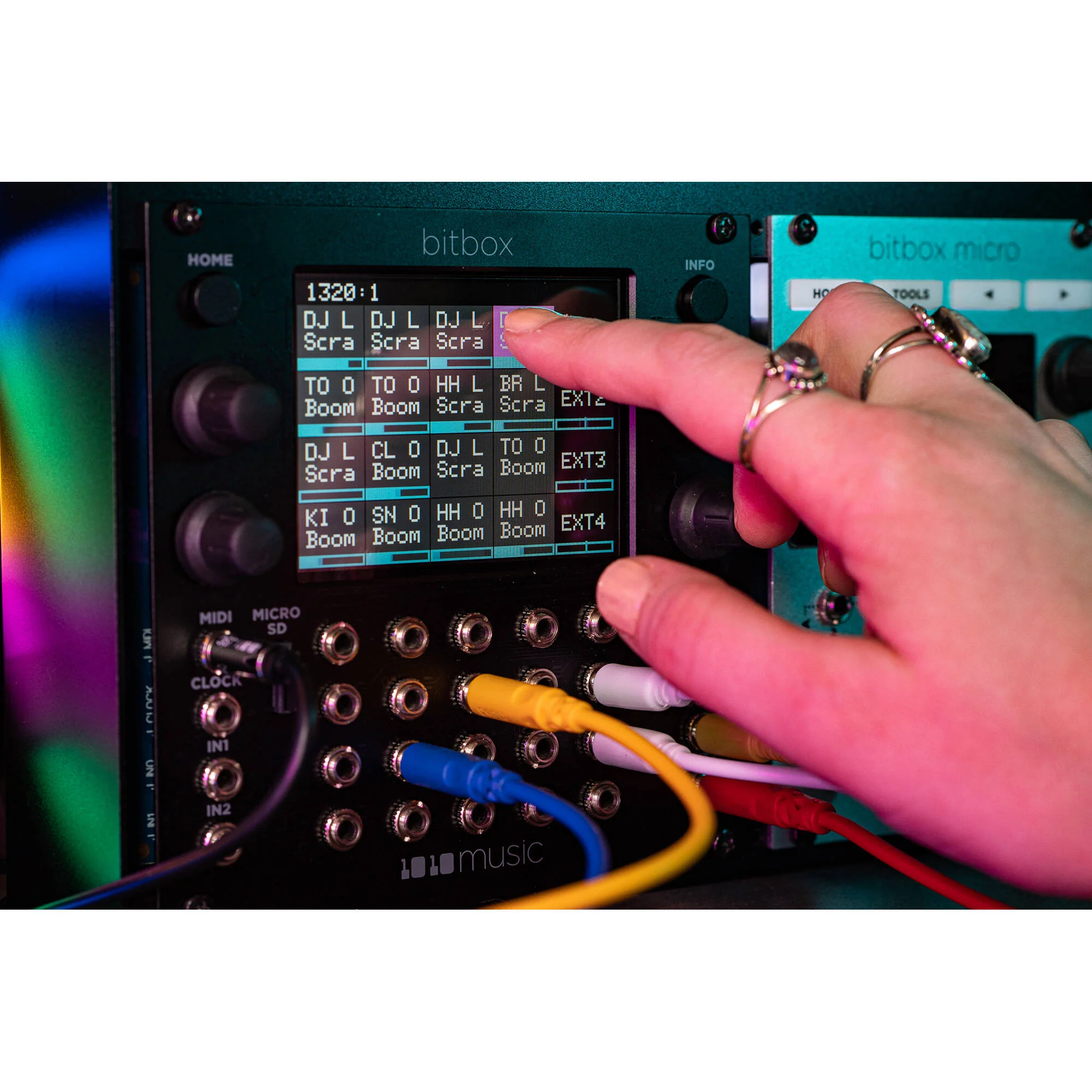

- Use the 3.5? diagonal touch screen to intuitively explore the features of the module
- Get more creative with double the processing power of the original bitbox
- Fill out your sound with reverb and delay
- Import or export WAV files with your Mac or PC using a microSD card
- Save and recall multiple presets
- Increase your capacity with larger microSD cards
- Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would
UPC: 857665007277

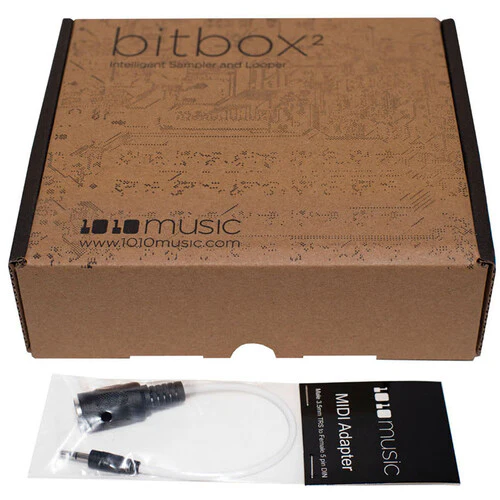

Items Included
- 1010music bitbox mk2 Intuitive Sampling Module for Eurorack (26 HP, Black)
- microSD Card
- Ribbon Power Cable
- 3.5mm TRS to Female 5-Pin DIN (Type-B)
- Limited 1-Year Manufacturer Warranty
Not Included
-
Eurorack CasesEssential
Additional Resources
1010music 22 Specs
Key Specs
| Sound Generation |
Digital
|
| Audio I/O |
2x 1/8" / 3.5 mm TRS Line/Modular/Eurorack Input
4x 1/8" / 3.5 mm TRS Main/Modular/Eurorack Output |
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Type-B Input or Output
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS CV Input
16x 1/8" / 3.5 mm TS Gate Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
400 mA on +12 V Rail
0 mA on -12 V Rail 0 mA on +5 V Rail |
| Horizontal Pitch |
30 HP
|
General
| Item Type |
Eurorack Module
|
Kit Components
| Sound Generation |
Digital
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| AD/DA Conversion |
24-Bit / 48 kHz
|
Sounds
| Sampling Formats |
PCM, WAV - 44.1, 48, 96 kHz / 16, 24, 32-Bit
|
| Maximum Sample Length |
4 Hours per Sample
|
| Built-In Effects |
Delay
Reverb |
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
16x Fixed (Sample)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
16x Assignable Envelope Generator: Attack, Decay, Sustain, Release
|
| Filters |
Number of Filters: 1 per Voice
Characteristic: Digital Type: Low-Pass, High-Pass |
| LFOs |
Number of LFOs: 1 per Voice
Waveforms: Sine, Sawtooth, Reverse Sawtooth, Square, Triangle, Random, Noise |
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC
|
Connectivity
| Audio I/O |
2x 1/8" / 3.5 mm TRS Unbalanced Mono Line/Modular/Eurorack Input
4x 1/8" / 3.5 mm TRS Unbalanced Mono Main/Modular/Eurorack Output |
| MIDI I/O |
1x 1/8" / 3.5 mm TRS Type-B Input or Output
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS CV Input
16x 1/8" / 3.5 mm TS Gate Input |
| Patch Points |
No
|
| Sync I/O |
1x 1/8" / 3.5 mm TS Clock Input or Output
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
400 mA on +12 V Rail
0 mA on -12 V Rail 0 mA on +5 V Rail |
Physical
| Horizontal Pitch |
30 HP
|
| Included Accessories |
microSD Card, USB Cable
|
| Dimensions |
5.3 x 5 x 1.8" / 13.5 x 12.7 x 4.6Â cm
|
Packaging Info
| Package Weight |
0.76 lb
|
| Box Dimensions (LxWxH) |
6.55 x 5.65 x 1.95"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
