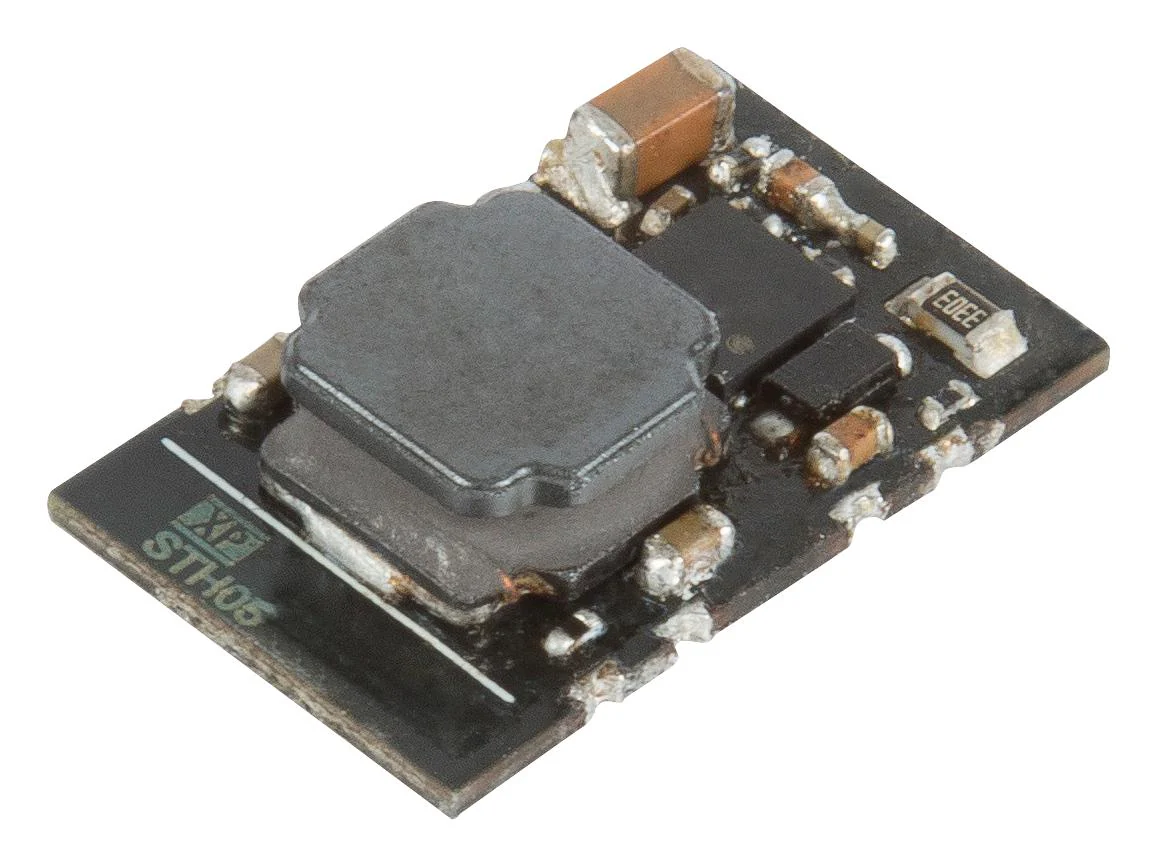

XP Power STH0548S12 Non Isolated POL DC/DC Converter ITE 1 Output 6 W 12 V 500 mA Fixed Adjustable

The STH05 series is a low cost DC to DC buck regulators in a SMD-10 package. Based on SMD technology and high levels of automation the series offers many features including voltage trimming, remote on/off, continuous short circuit protection, regulation and high efficiency.

• Wide input voltage range
• Non-isolated
• Output voltage trim ±10%
• Class B conducted and radiated emissions with external components
• No heatsink required
• Full load to +60°C
• Dimension is 0.77" x 0.47" x 0.39" (19.5mm x 11.8mm x 5.0 mm)

Product details

Power Supply Approvals	ITE
No. of Outputs	1 Output
Output Power Max	6W
Output Voltage Nom.	12V
Output Current Max	500mA
DC / DC Converter Output Type	Fixed, Adjustable
DC / DC Converter Mounting	Surface Mount Device
Input Voltage DC Min	17V
Input Voltage DC Max	72V
DC / DC Converter Type	Surface Mount DIP
Depth	19.5mm
Width	11.8mm
Height	5mm
Product Range	STH Series

Other details

Brand	XP POWER
Part Number	STH0548S12
Quantity	Each
Technical Data Sheet EN
