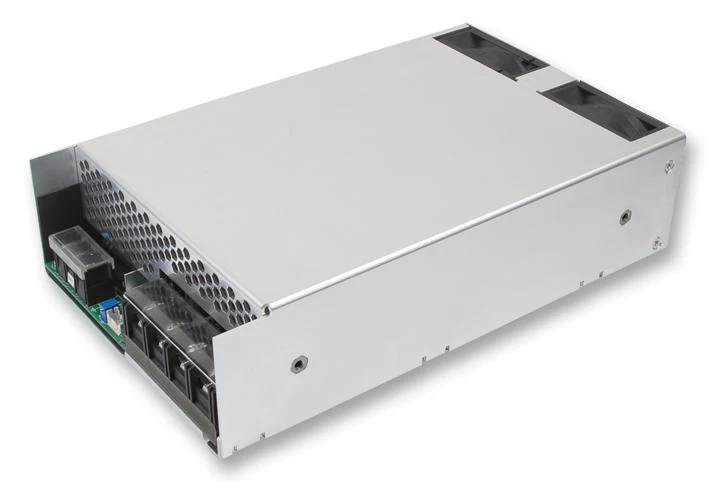

-70%XP Power SHP1000PS28 AC/DC Enclosed Supply (PSU) ITE 1 Outputs 1.013 kW 28 VDC 36 A—
$956.51
$286.95The Story
SHP1000 series 1kW forced-air cooled chassis mount AC-DC power supply with industrial electronics and ITE approvals. It is forced air cooled via integral multi voltage level fan which is load dependent. 5VDC/1A standby supply which can be utilised with the signals and control features of the unit to provide detection of loss of AC input and remote on/off control. Multiple units can used in parallel via the current share facility, providing higher power solutions. Low earth leakage current, and conducted EMC compliance to Class B also simplify higher power system design. Safety approvals are IEC60950-1:2005 Ed 2 / IEC62368-1:2014, UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017, SEMI F47.
- Rugged industrial construction, screw terminals
- Variable fan speed for noise reduction
- AC OK, remote on/off and active current share
- 3 year warranty
- Output voltage is 28V (V1), input frequency is 47-63Hz
- Output current is 36A (<180 VAC), 43A (>180 VAC)
- Standby supply is 5V/1A, output power is 1013W (<180VAC), 1200W (>180VAC)
- Input voltage is 85-264VAC, derate output power 10% <90VAC, 85% typical efficiency
- Overvoltage/overload protection, overtemperature protection, short circuit protection
- Operating temperature is -20°C to 70°C, derate linearly from 50°C at 2.5%/°C to 50% at 70°C
Other details
| Brand | XP POWER |
| Part Number | SHP1000PS28 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Notes & Articles EN | |
| CAD Multiple Formats EN | |
| Certificate of Conformity EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
