$44.87
Original: $149.57

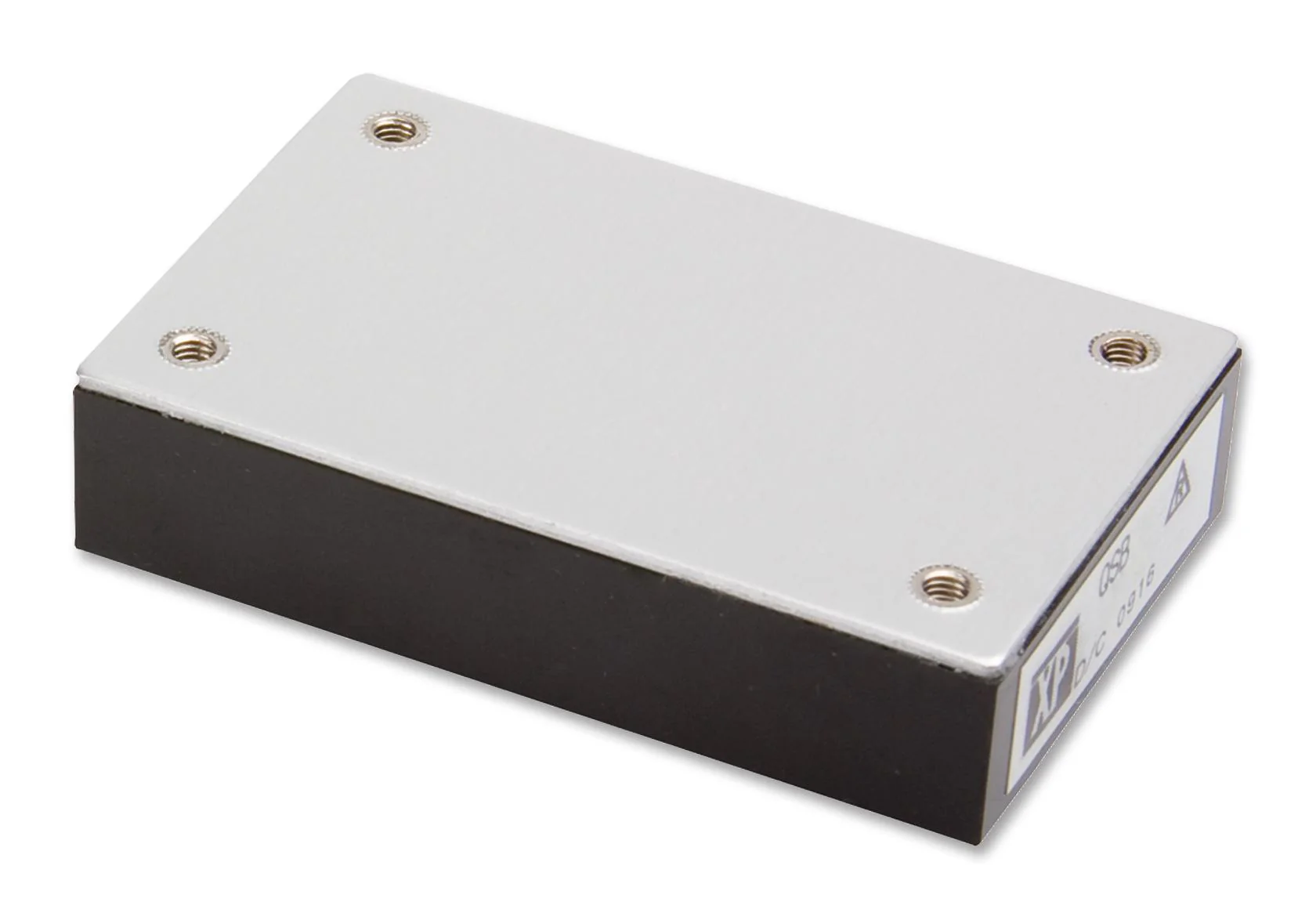

-70%XP POWER QSB7548S12 Isolated Through Hole DC/DC Converter, Base Plate Cooled, ITE, 4:1, 75 W, 1 Output, 12 V, 6.25 A—
$149.57
$44.87The Story
- Wide 4:1 Input Range
- Industry Standard Package, 1/4 Brick
- Operating Temperature -40°C to 100°C
- High Power Density
- Base Plate Cooled
- Remote On/Off & Remote Sense
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Power Management, DC, DC Converters
Product details
| Power Supply Applications: ITE |
| Input Ratio: 4:1 |
| Output Power Max: 75W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 12V |
| Output Current - Output 1: 6.25A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Regulated |
| Isolation Voltage: 1.5kV |
| DC / DC Converter Type: Quarter Brick |
| Input Voltage DC Nom: 48V |
| DC / DC Converter Output Type: Fixed, Adjustable |
| Width: 36.8mm |
| Height: 12.7mm |
| Depth: 57.9mm |
| Input Voltage DC Min: 18V |
| Input Voltage DC Max: 75V |
| Product Range: QSB75 Series |
Other details
| Brand | XP POWER |
| Part Number | QSB7548S12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
