XP POWER IH2405D Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, DIP, 1:1, 2 W, 2 Output, 5 V
HomeStore

XP POWER IH2405D Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, DIP, 1:1, 2 W, 2 Output, 5 V

XP POWER IH2405D Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, DIP, 1:1, 2 W, 2 Output, 5 V

$4.50

Original: $15.01

-70%
XP POWER IH2405D Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, DIP, 1:1, 2 W, 2 Output, 5 V—

$15.01

$4.50

The Story

Product Overview

  • Dual Output
  • SIP or DIP Package
  • 1000 VDC Isolation
  • Optional 3000-6000 VDC Isolation
  • MTBF <gt/>1.1 MHrs
  • 40 °C to +85 °C Operation

Applications

Power Management, Industrial, Safety

Product details

Technical Specifications

Power Supply Applications

ITE

Input Ratio

1:1

No. of Outputs

2 Output

Output Current - Output 1

200mA

Output Current - Output 2

200mA

Isolation Voltage

1kV

DC / DC Converter Output Type

Fixed

Height

6.88mm

Input Voltage DC Min

21.6V

Product Range

IH Series

DC / DC Converter Type

DIP

Output Power Max

2W

Output Voltage - Output 1

5V

Output Voltage - Output 2

-5V

Output Regulation

Unregulated

Input Voltage DC Nom

24V

Width

10.16mm

Depth

20.32mm

Input Voltage DC Max

26.4V

SVHC

No SVHC (15-Jan-2018)

Other details

Brand XP POWER
Part Number IH2405D
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

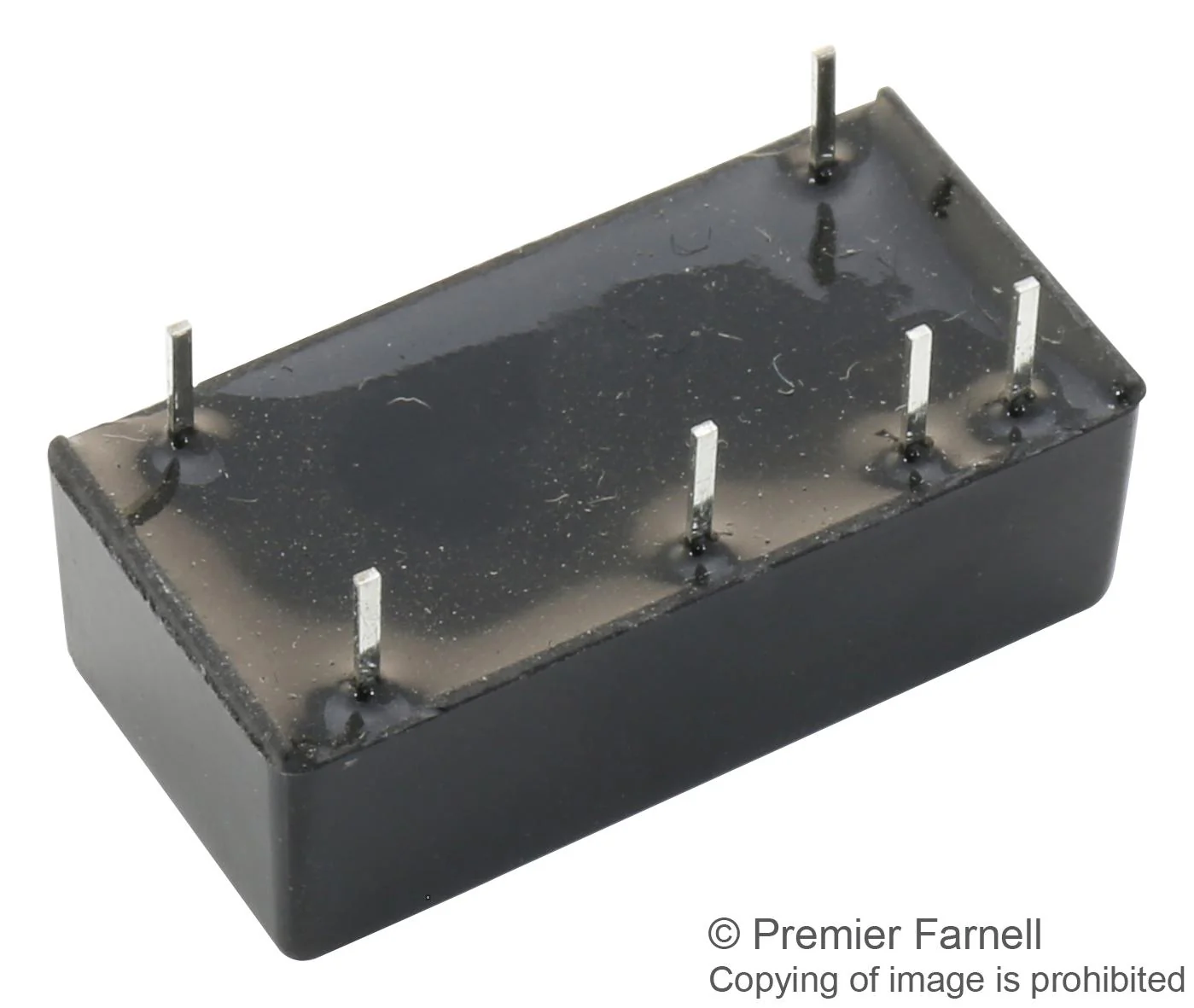

XP POWER IH2405D Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, DIP, 1:1, 2 W, 2 Output, 5 V - Image 2
