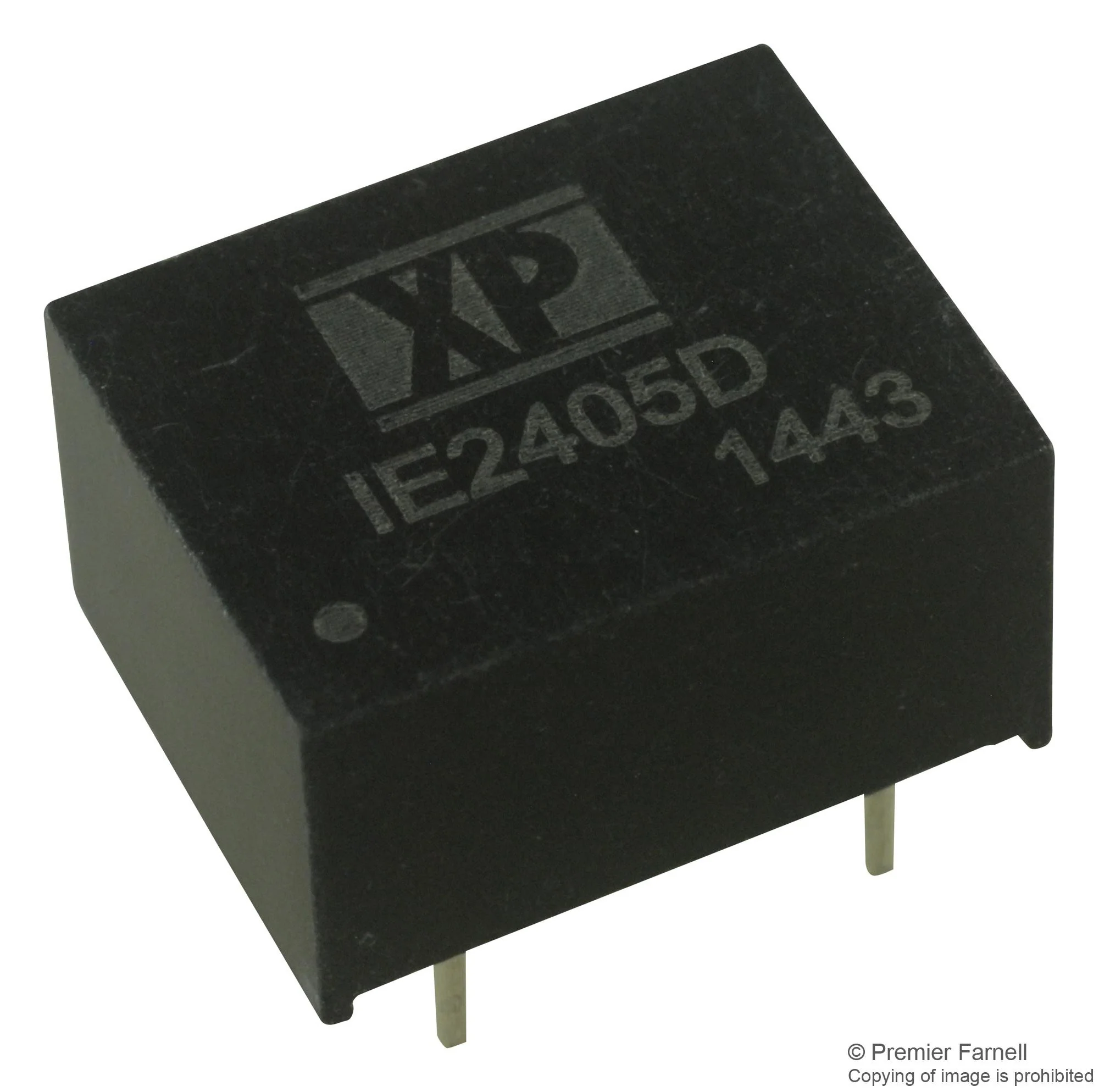

-70%XP POWER IE2405D 1 Watt DIP Dual Output DC/DC Converter, Input 24V, Output �5V/200mA—
$8.63
$2.59The Story
- Low cost
- Industry standard pin-out
- 1 kVdc isolation
- -40 �C to +85�C @ full load
- UL94V-0 material
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 21.6V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 12.7mm |
| Width | 10.14mm |
| Product Range | IE Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 26.4V |
| Output Current - Output 1 | 200mA |
| Height | 6.86mm |
Other details
| Brand | XP POWER |
| Part Number | IE2405D |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
