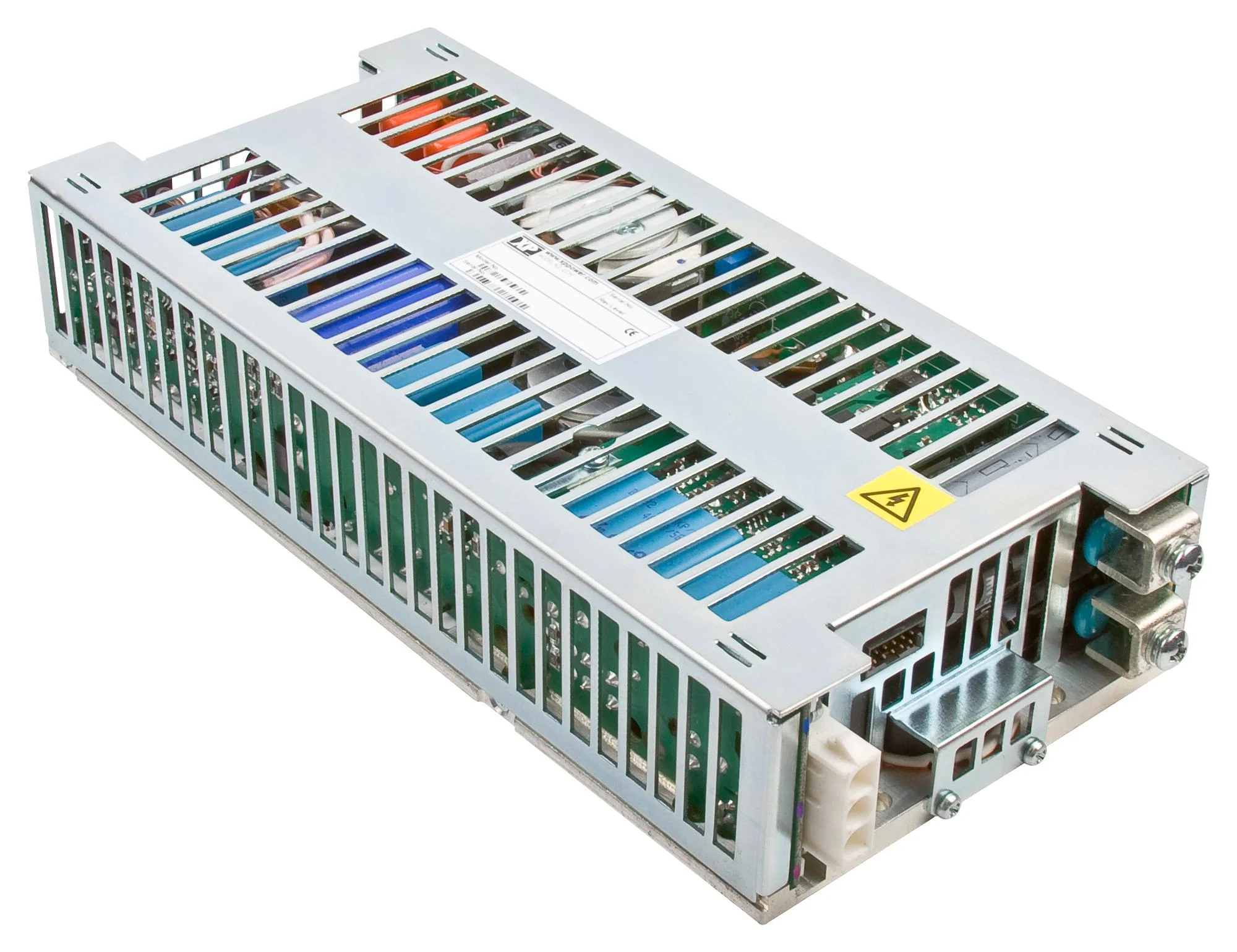

XP POWER CCH600PS48 AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 603 W, 48 VDC, 12.5 A

CCH600 series is baseplate cooled, enclosed, chassis mount AC-DC power supply. A rugged, baseplate cooled AC-DC power supply in an enclosed chassis mount case with industrial and MIL-STD 461E EMC compliance. Features include a 5V 0.5A standby output, current sharing and remote monitoring for over temperature and power fail, an inhibit function also allows remote switching to control the output on/off. The baseplate cooling enables the CCH600 to operate in conditions requiring a sealed enclosure with the heat transferred out through the equipment casing. Safety approvals are IEC60950-1 CB report, UL60950-1, EN60950-1, IEC62368-1, EN62368-1.

• 3 year warranty
• Robustly protected for overtemperature, overvoltage, overload and short circuit
• Output power is 603W
• Output voltage is 48VDC
• Output current is 12.5A
• Input voltage is 90-264VAC
• Input frequency is 47-400Hz (safety approvals cover frequency 47-63Hz)
• Continuous, approximately constant current short circuit protection
• Efficiency is 89% typical
• Operating temperature is -40?C to +85?C baseplate
