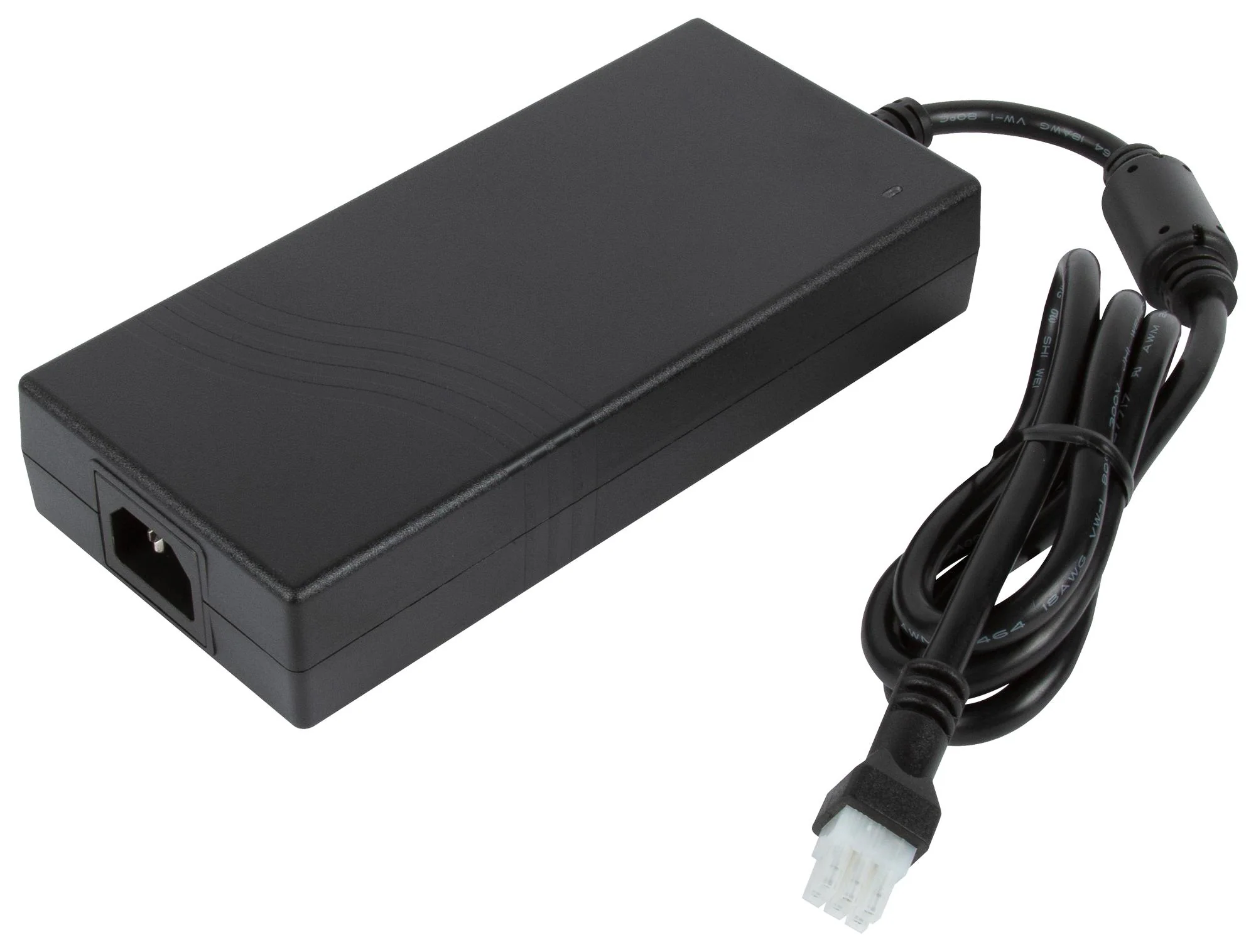

-70%XP Power AQM300PS24 AQM300PS24 AC/DC Supply Medical 1 Output 300 W 24 VDC 12.5 A—
$338.61
$101.58The Story
AQM300PS24 is an AQM3000 series 300W convection cooled AC to DC power supply. This extremely high power density AQM300 series of medical external power supplies is fully approved to international medical safety standards. It has been designed with very high efficiency and low standby power, enabling it to meet the latest environmental legislation. The use of new technology allows the volume to be typically half that of a traditional design. The unit has a fully sealed enclosure complying with IP22 and a smooth surface finish making it easier to keep clean in a clinical setting. It features overshoot, overload protection, overvoltage protection and short circuit protection. Approved by UL (ANSI/AAMI ES 60601-1), CSA (CSA C22.2 No. 60601-1). Applications includes healthcare, home healthcare and medical diagnostics.
- 24V output voltage, 12.5A output current, 5% total regulation and 92.8% efficiency
- Class I version, ensure versatility for both hospital and non hospital applications
- Desktop GaN AC to DC power supply for medical (2 x MOPP) applications
- Medical safety and home healthcare approvals
- Energy efficiency level VI
- 4th edition medical EMC, IP22 environmental rating
- <0.15W standby power, 0°C to 60°C operation
- Low earth leakage current
- 3 year warranty, input voltage range from 85VAC to 264VAC
- Dimension is 183mm x 85mm x 35mm
Other details
| Brand | XP POWER |
| Part Number | AQM300PS24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
