Original: $763.62
-70%$763.62
$229.09The Story

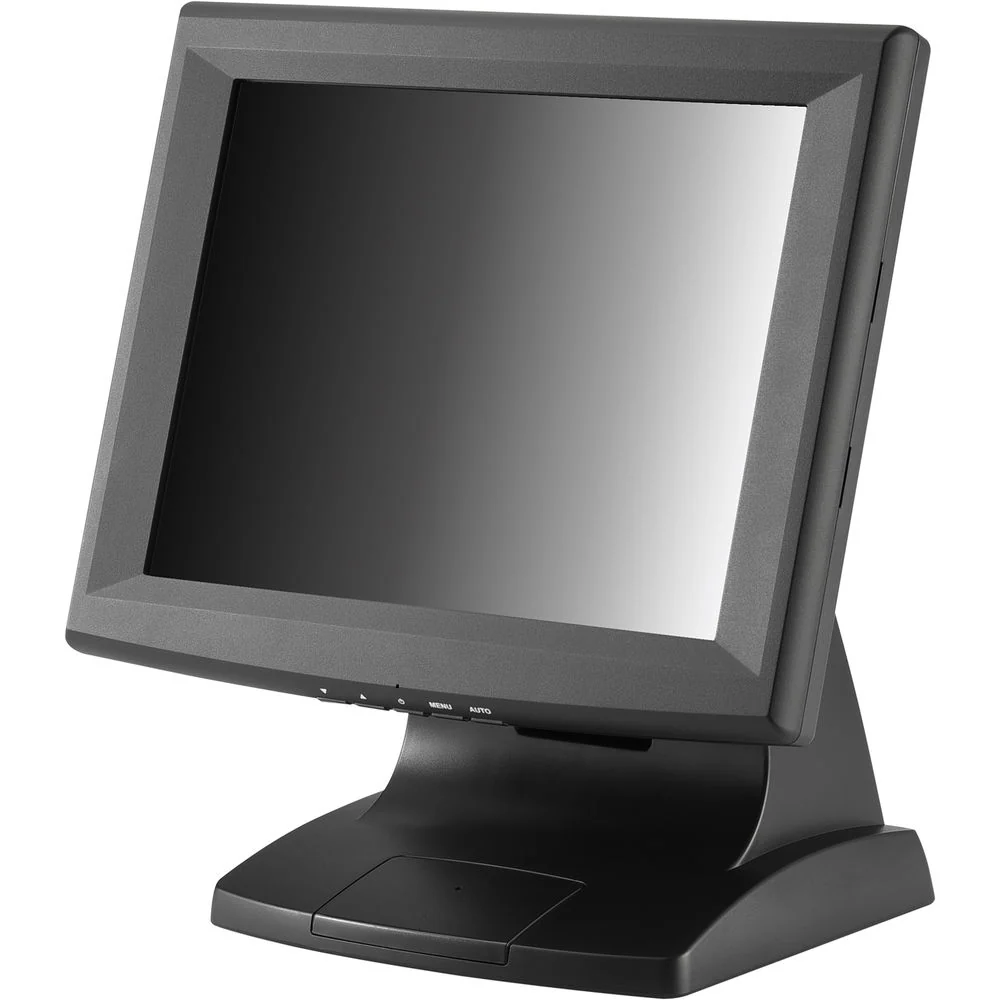

The 12.1" Touchscreen LED XGA Monitor from Xenarc is a portable display monitor suitable for use in transportation, system integration, point-of-sale and data monitoring applications. Its 12.1" LED-backlit LCD 5-wire resistive touchscreen features a brightness of 500 cd/m², and multi-monitor touchscreen support. The touchscreen is coated with an anti-glare coating.

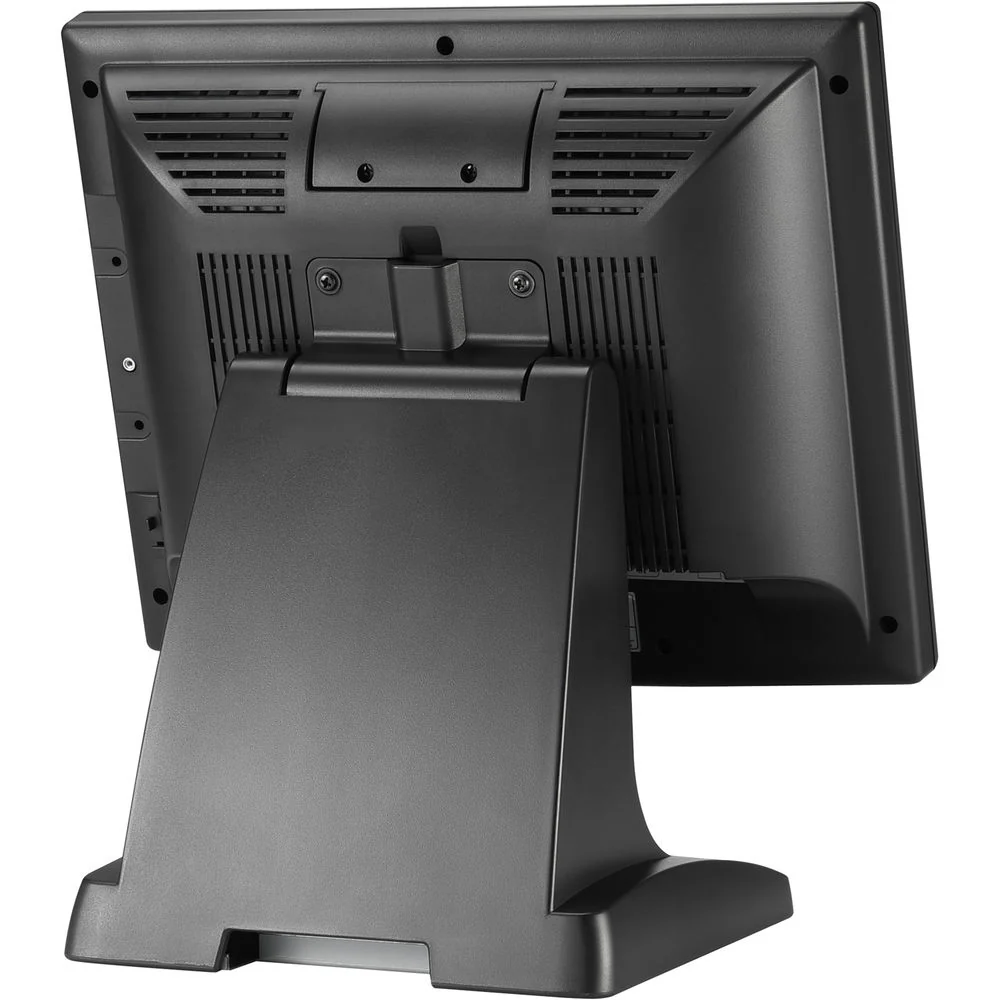

The 1024 x 768 resolution and the 4:3 aspect ratio make the screen easily readable. High performance image and video signal processing, and advanced image-scaling and shaping (AISS) are additional advanced features included in this display monitor, along with 'auto power-on' when a signal is detected. The monitor can be wall-mounted with the 75 x 75mm VESA hole pattern, and a removable desk stand is included.
| Screen Size (Diagonal) | 12.1" |
| Resolution | 1024 x 768 |
| Supported Display Resolutions | Maximum: 1024 x 768 Minimum: 640 x 480 |
| Panel Type | LCD |
| Brightness | 500 cd/m² |
| Viewing Angle (H x V) | 160 x 140° |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 700:1 |
| Response Time | 26 ms |
| Backlighting Technology | LED |
| Input Ports | 1 x DVI Video 1 x 15-Pin VGA Video |
| Output Ports | None |
| USB Ports | 1 x USB (Version Unspecified) |
| Ethernet Ports | None |
| Digital Media Slot | None |
| TV Tuner | No |
| HDCP Support | No |
| Lighting Lifespan | 55000 Hours |
| Touchscreen Technology | Resistive |
| Surface Treatment | Anti-Glare |
| Built-In Speakers | None |
| Power Consumption | Typical: 20.0 W |
| DC Input Power | 12 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
| Certifications | CE, FCC, RoHS, as per Manufacturer |
| Wall Mounting | 75 x 75mm |
| IP Rating | IP54 |
| Lock Slot | No |
| Dimensions | 12.4 x 10.0 x 2.7" / 315.0 x 255.0 x 67.7Â mm (without Stand) |
| Weight | 7.67Â lb / 3.48Â kg (with Stand) 5.55Â lb / 2.52Â kg (without Stand) |
| Package Weight | 11.21 lb |
| Box Dimensions (LxWxH) | 17.2 x 16.1 x 10.4" |
In the Box
- Xenarc 12.1" Touchscreen LED XGA Monitor
- Monitor Stand
- AC Adapter
- Connection Cable
- Limited 2-Year Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The 12.1" Touchscreen LED XGA Monitor from Xenarc is a portable display monitor suitable for use in transportation, system integration, point-of-sale and data monitoring applications. Its 12.1" LED-backlit LCD 5-wire resistive touchscreen features a brightness of 500 cd/m², and multi-monitor touchscreen support. The touchscreen is coated with an anti-glare coating.
The 1024 x 768 resolution and the 4:3 aspect ratio make the screen easily readable. High performance image and video signal processing, and advanced image-scaling and shaping (AISS) are additional advanced features included in this display monitor, along with 'auto power-on' when a signal is detected. The monitor can be wall-mounted with the 75 x 75mm VESA hole pattern, and a removable desk stand is included.
| Screen Size (Diagonal) | 12.1" |
| Resolution | 1024 x 768 |
| Supported Display Resolutions | Maximum: 1024 x 768 Minimum: 640 x 480 |
| Panel Type | LCD |
| Brightness | 500 cd/m² |
| Viewing Angle (H x V) | 160 x 140° |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 700:1 |
| Response Time | 26 ms |
| Backlighting Technology | LED |
| Input Ports | 1 x DVI Video 1 x 15-Pin VGA Video |
| Output Ports | None |
| USB Ports | 1 x USB (Version Unspecified) |
| Ethernet Ports | None |
| Digital Media Slot | None |
| TV Tuner | No |
| HDCP Support | No |
| Lighting Lifespan | 55000 Hours |
| Touchscreen Technology | Resistive |
| Surface Treatment | Anti-Glare |
| Built-In Speakers | None |
| Power Consumption | Typical: 20.0 W |
| DC Input Power | 12 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
| Certifications | CE, FCC, RoHS, as per Manufacturer |
| Wall Mounting | 75 x 75mm |
| IP Rating | IP54 |
| Lock Slot | No |
| Dimensions | 12.4 x 10.0 x 2.7" / 315.0 x 255.0 x 67.7Â mm (without Stand) |
| Weight | 7.67Â lb / 3.48Â kg (with Stand) 5.55Â lb / 2.52Â kg (without Stand) |
| Package Weight | 11.21 lb |
| Box Dimensions (LxWxH) | 17.2 x 16.1 x 10.4" |
In the Box
- Xenarc 12.1" Touchscreen LED XGA Monitor
- Monitor Stand
- AC Adapter
- Connection Cable
- Limited 2-Year Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
