-70%WURTH ELEKTRONIK 7443320068 Surface Mount Power Inductor, WE-HCC Series, 680 nH, 26 A, 38 A, Shielded, 0.072 ohm—
$3.96
$1.19The Story

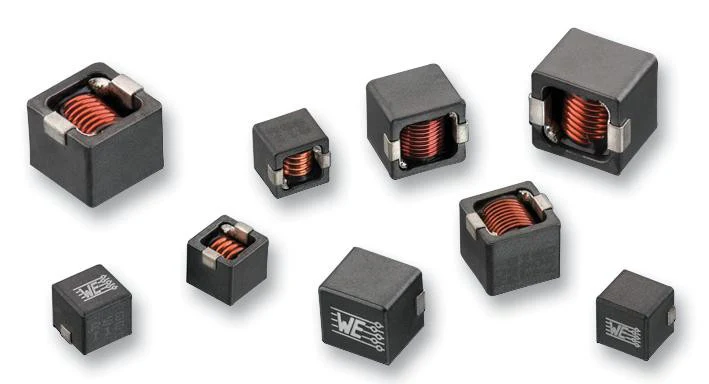

This is a Surface Mount Power Inductor, WE-HCC Series, 680 nH, 26 A, 38 A, Shielded, 0.072 ohm product from WURTH ELEKTRONIK with the model number 7443320068
Product details
| Product Range | WE-HCC Series |
| Inductance | 680nH |
| RMS Current (Irms) | 26A |
| Saturation Current (Isat) | 38A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.072ohm |
| Power Inductor Case | 12.1mm x 11.4mm x 9.5mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 7443320068 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
