Wooden Camera A10024 Overview

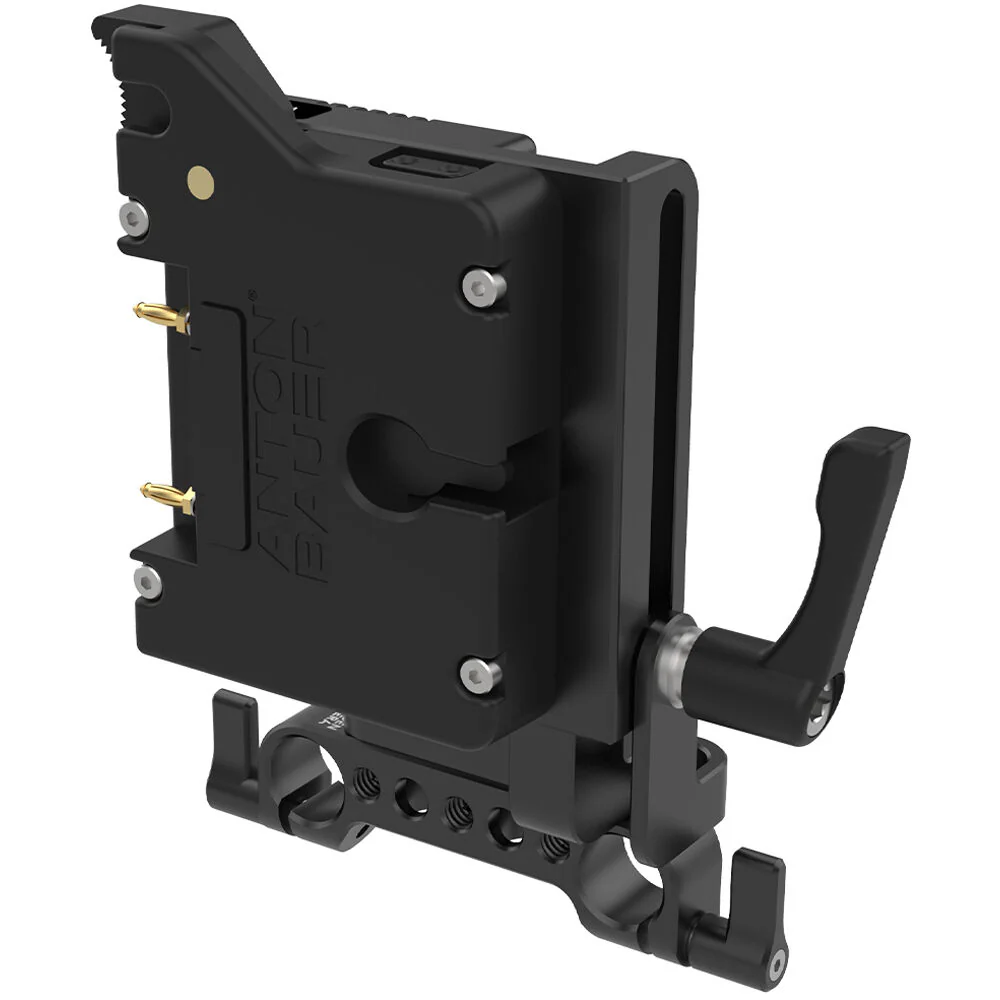

Add a professional, high-capacity battery plate to power your Blackmagic Pocket Cinema Camera 6K Pro rig with this compact Micro Battery Slide Pro from Wooden Camera. It supports one Gold mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using a 2-pin LEMO-type connector cable. With the camera's L-series battery in place, hot swapping is supported.
The battery slide mounts onto optional 15mm rods using its integrated 15mm LWS rod clamp. It also features two 5.8V D-Tap outputs for powering accessories. Each D-Tap accessory output features a digital fuse that monitors the D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.
Gold mount battery
In the Box
- Wooden Camera Micro Battery Slide Pro for Blackmagic Pocket Cinema Camera 6K Pro (Gold Mount)
- 2-Pin LEMO-Type Power Cable
Wooden Camera A10024 Specs
| Power Output | D-Tap: VDC at 5.8 A |
| Camera Power Method | Connector |
| Inputs/Outputs | 1 x LEMO 2-Pin 2 x D-Tap |
| Plate Front / Battery Mount | Gold Mount |
| Plate Rear Mount | 15 mm Rod Clamp |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Dimensions | 5.7 x 4.5 x 1.6" / 14.5 x 11.5 x 4Â cm |
| Weight | 11.1Â oz / 315Â g |
| Package Weight | 1.09 lb |
| Box Dimensions (LxWxH) | 6.5 x 4.3 x 4.3" |
Wooden Camera A10024 Reviews
