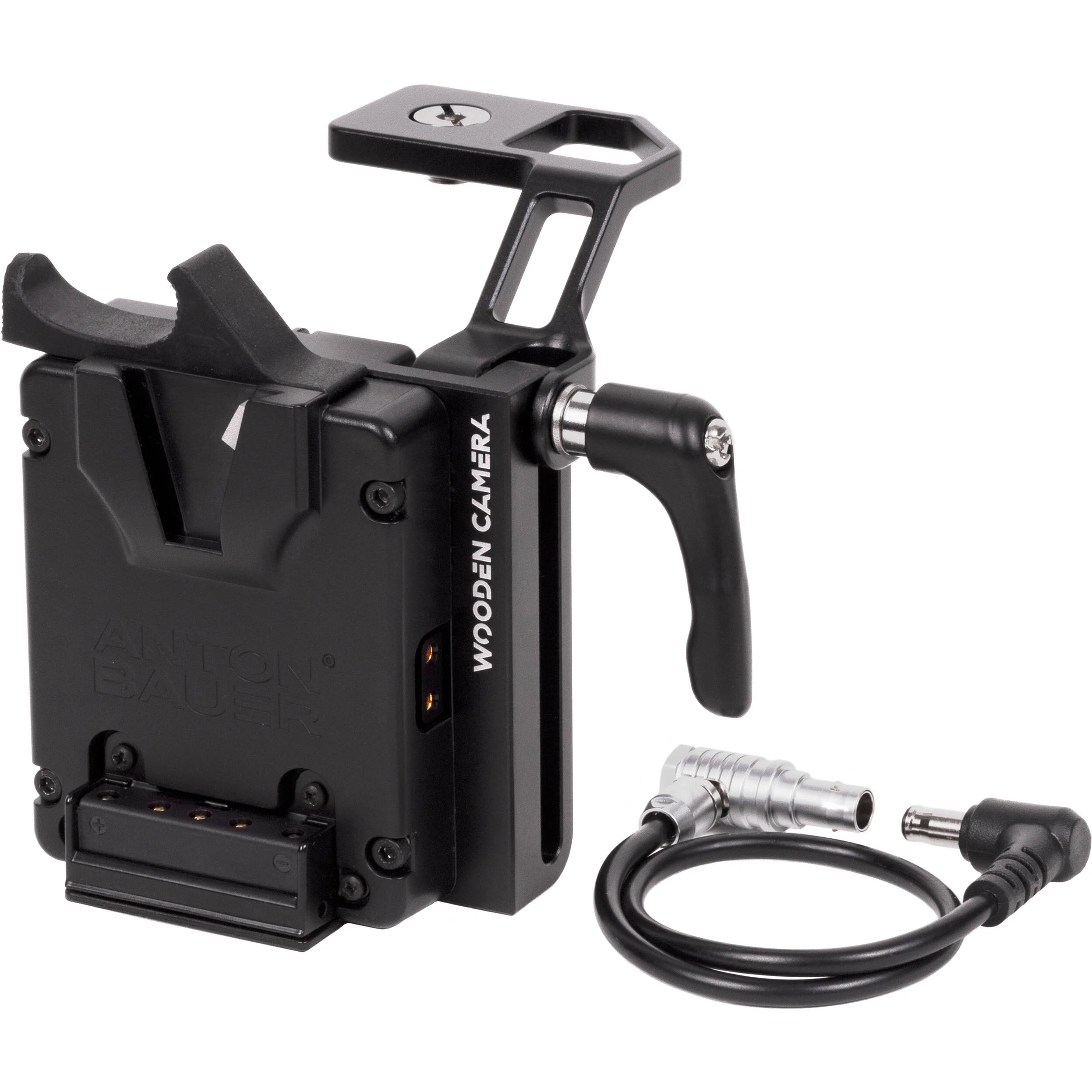

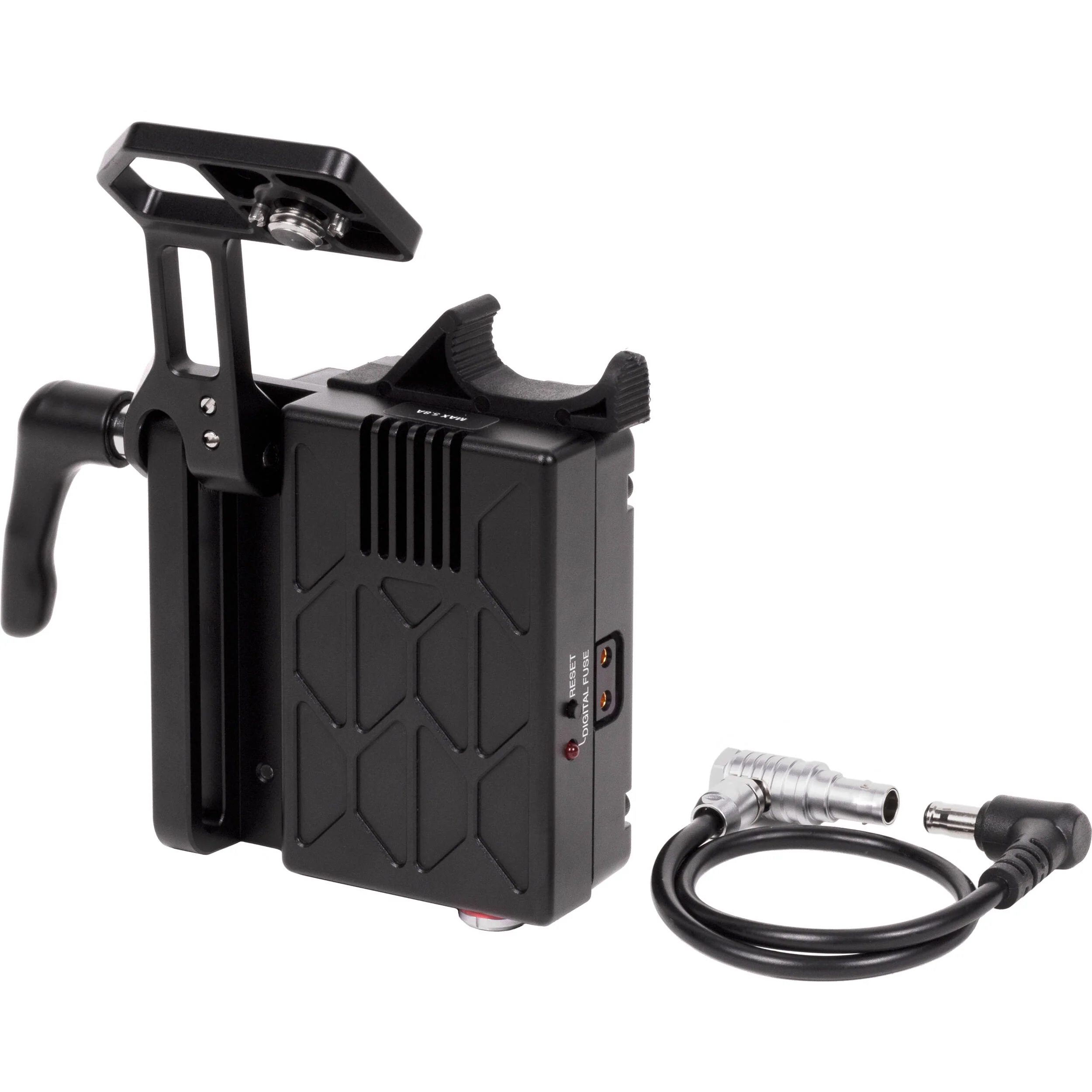

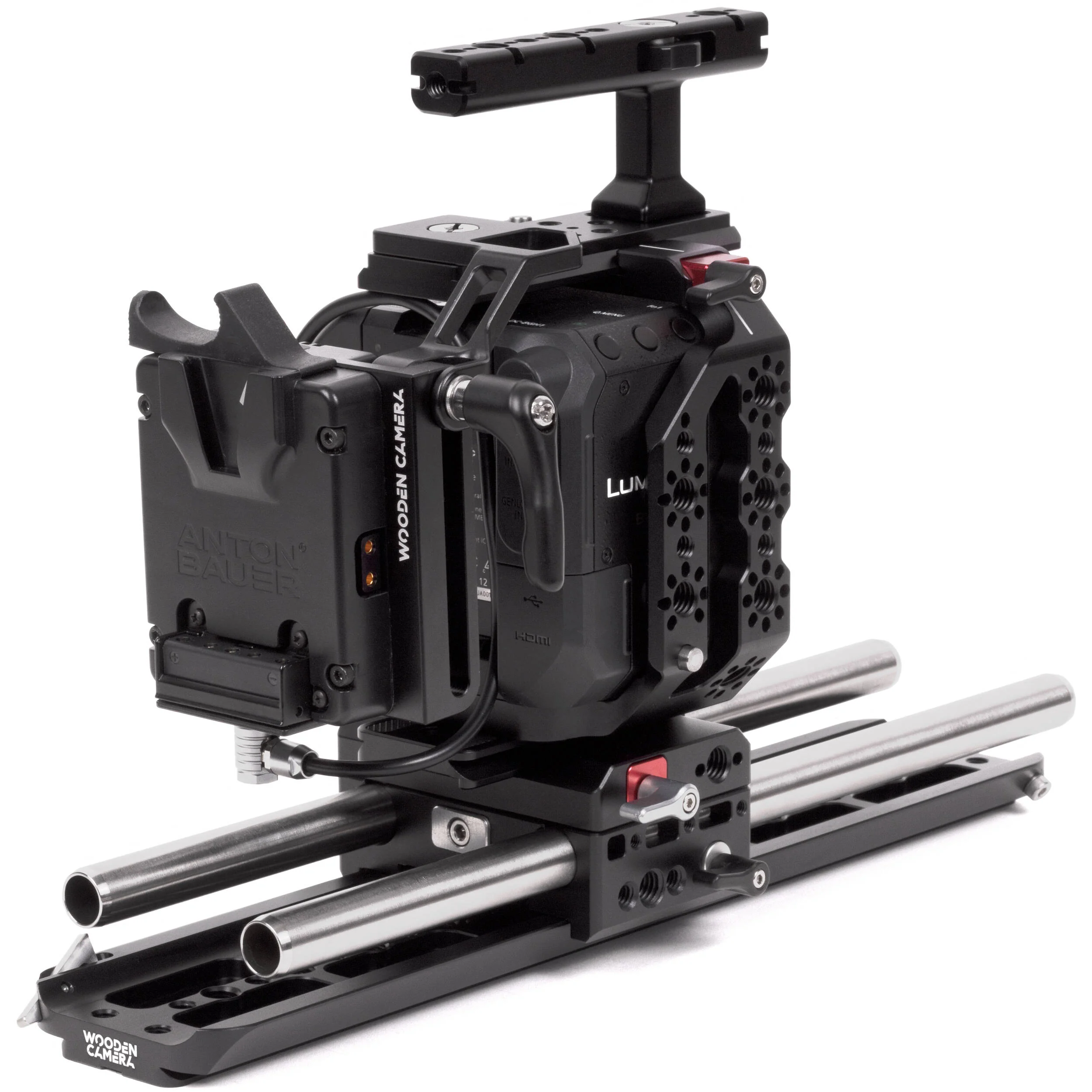

Wooden Camera A10009 Overview
Add a high-capacity battery plate to power your Panasonic BGH1 rig with this compact Micro Battery Slide from Wooden Camera. It supports one Gold mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using the included 3-pin LEMO-type connector cable. With the camera's AG-VBR59 battery in place, hot swapping is supported.
The compact battery slide mounts onto a rig using its integrated 3/8"-16 mounting screw. It also features two 5.8V D-Tap outputs for powering accessories. The D-Tap accessory outputs feature a digital fuse that monitors each D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.
Compatibility
Gold mount battery
In the Box
- Wooden Camera Micro Battery Slide for Panasonic BGH1 (Gold Mount)
- 3-Pin LEMO Type Power Cable (10")
- Limited 1-Year Warranty
Wooden Camera A10009 Specs
| Power Output | D-Tap: VDC at 5.8 A |
| Camera Power Method | Connector |
| Connectors | 1 x LEMO 3-Pin 2 x D-Tap |
| Plate Front / Battery Mount | Gold Mount |
| Plate Rear Mount | 3/8ďż˝-16 Female |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Cable Length | 10" / 25.4Â cm |
| Dimensions | 5.7 x 4.5 x 1.6" / 14.5 x 11.5 x 4Â cm |
| Weight | 10.6Â oz / 300Â g |
| Package Weight | 0.965 lb |
| Box Dimensions (LxWxH) | 6.8 x 4.35 x 4.35" |
Wooden Camera A10009 Reviews
