WD HC550 Internal HDD Overview
-
1Description
-
2General Features
-
3Highlights
-
4Applications and Environments

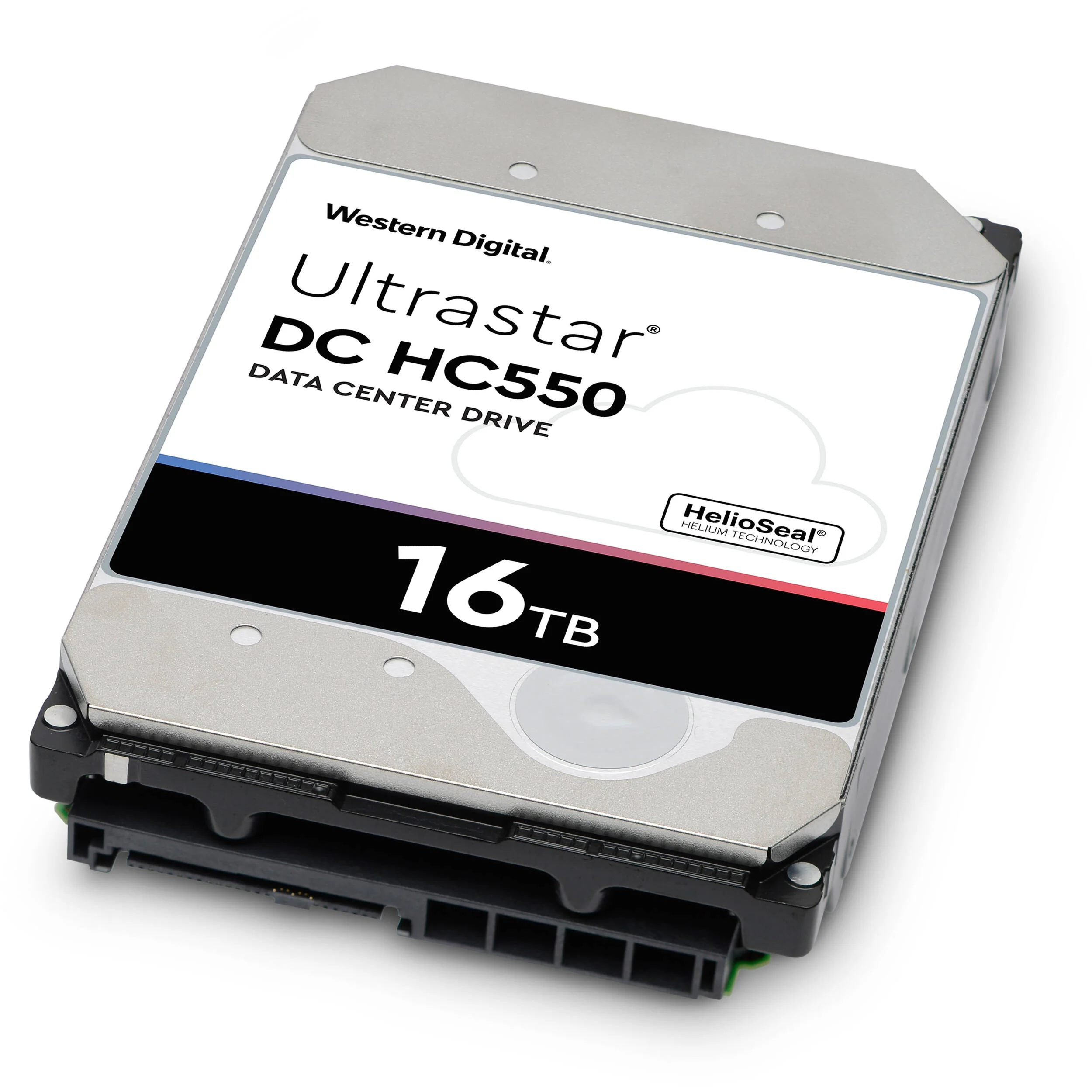

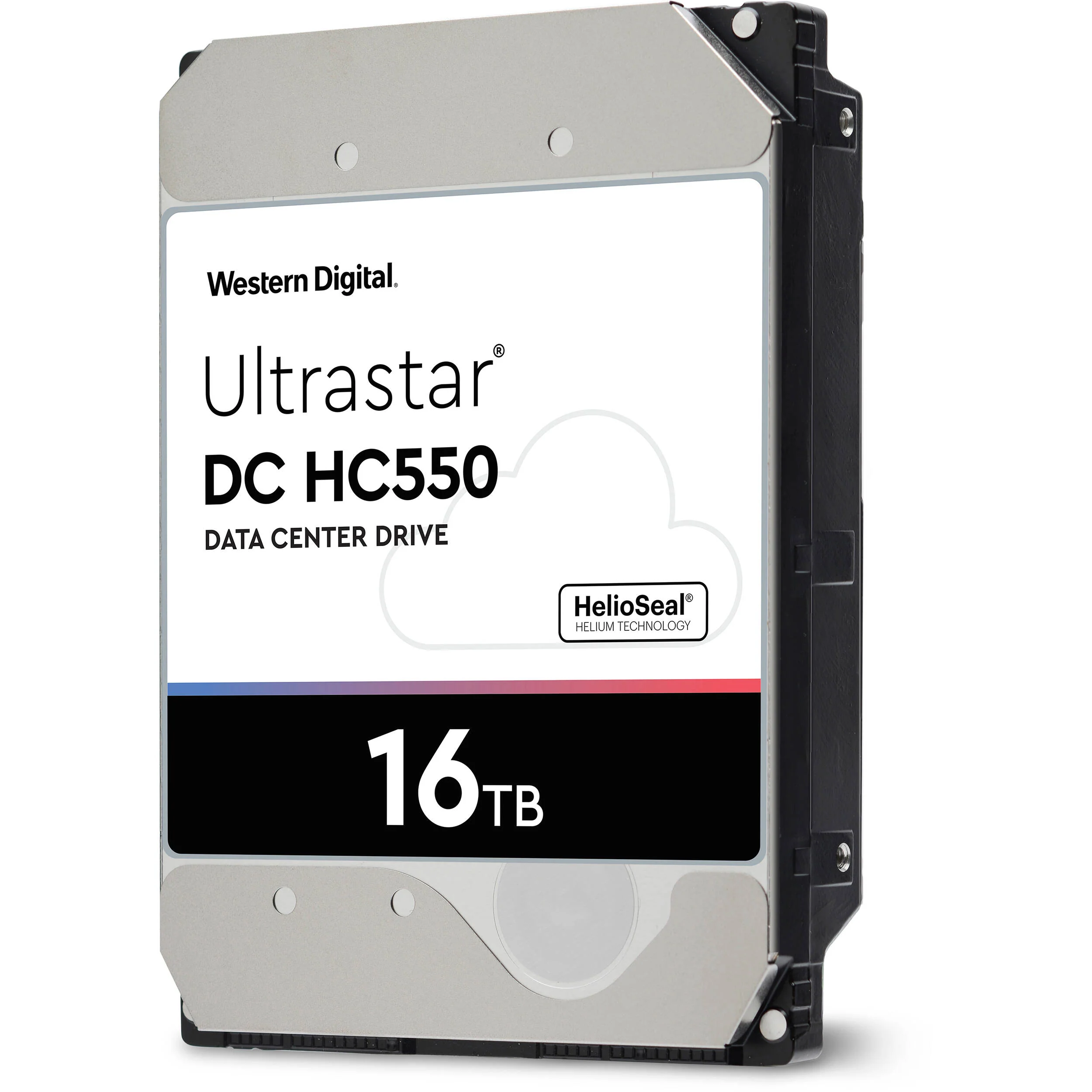

The 16TB UltraStar DC HC550 7200 rpm SAS-3 3.5" Internal HDD from WD is a high-performance, large-capacity drive designed for enterprise environments that have intensive data and storage needs. This drive has a storage capacity of 16TB and a 3.5" form factor with a SAS-3 12 Gb/s interface, rotational speed of 7200 rpm, and 512MB cache that help to ensure uninterrupted data transfers at speeds of up to 262 MB/s. As a professional-grade drive, it has an MTBF rating of 2.5 million hours, an Annualized Failure Rate (AFR) of 0.35%, 600,000 load/unload cycles, an error rate of 1 in 1015 non-recoverable bits read, and a workload of up to 550TB per year, plus WD's HelioSeal technology, which replaces the air inside the drive with helium. This allows for increased efficiency, reliability, and capacity, thanks to reduced vibration, improved areal density, cooler operating temperatures, and reduced power requirements.
General Features
Total Cost of Ownership (TCO) Drives the Data Center Architecture
Data center decisions are driven by TCO. Higher capacity hard drives play a role in reducing TCO. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware- and system-level costs when compared to lower capacity drives. Helium-sealed, low power, high-reliability drives reduce energy and maintenance costs, contributing to OpEx savings. Higher capacity drives require fewer racks and consume less power per TB at idle, resulting in significant overall TCO reduction for data center environments.
Raising the Bar with Advanced Technologies
The Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. It uses Energy-Assisted Magnetic Recording (EAMR) technology to improve writability and increase areal density, while a Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density. Lastly, this drive uses HelioSeal technology, which is now in its 6th generation.
Trusted Reliability and Quality for Data at Scale
With its massive capacity and 2.5 million hour MTBF reliability rating, the UltraStar DC HC550 is made for object storage implementations. Object storage systems with erasure coding provide better data durability compared to RAID systems, given their tolerance for simultaneous error conditions. The DC HC550 offers security and encryption options to help protect data from unauthorized use, including SED models in both SATA and SAS. A SED-FIPS will be available in SAS configuration.
Highlights
16TB in a standard 3.5" form factor
CMR technology works with all capacity enterprise applications and environments
Reliable, field-proven, 6th generation design
Energy-Assisted Magnetic Recording technology
HelioSeal design delivers outstanding power efficiency
2.5 million hours MTBF rating and a limited 5-year warranty
Self-encrypting drive options
Applications and Environments
Cloud and hyperscale storage
Massive scale-out (MSO) and high-density data centers
Bulk storage using object storage solutions like Ceph and OpenStack Swift
Primary and secondary storage for Apache Hadoop for big data analytics
![]()
UPC: 829686006751
In the Box
- WD 16TB UltraStar DC HC550 7200 rpm SAS-3 3.5" Internal HDD
- Limited 5-Year Warranty
Table of Contents
- Description
- General Features
- Highlights
- Applications and Environments
WD HC550 Internal HDD Specs
Performance
| Write Speed |
Maximum: 262 MB/s |
| Read Speed |
Maximum: 262 MB/s |
Physical
| Drive Type |
HDD |
| Form Factor |
3.5" |
| Noise Level |
3.6 dB (Active)
2.0 dB (Idle) |
HDD Specs
| Spindle Speed (RPM) |
7200 RPM |
| Areal Density |
918 Gb/in² |
| Disk Sector Format |
512e |
Reliability / Data Integrity
| Annualized Failure Rate (AFR) |
0.35 % |
| Endurance (Total Bytes Written) |
550 TB |
| Load/Unload Cycles |
600,000 |
| Mean Time Between Failures (MTBF) |
2.5 Million Hours |
| Non-Recoverable Read Errors per Bits Read |
1 in 1015 |
Electrical
| Power Draw |
8.8 W (Active)
5.8 W (Idle)
0.36 W (Standby) |
| Supported Voltage |
5 VDC, 12 VDC |
Environmental
| Operating Shock |
50 G / 2.0 ms |
| Storage Shock |
250 G / 2.0 ms |
| Operating Vibration |
0.67 G / 5 to 500 Hz |
| Storage Vibration |
1.04 G / 2 to 200 Hz |
| Operating Temperature |
41 to 140°F / 5 to 60°C |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
General
| Dimensions (W x H x D) |
4 x 1 x 5.8" / 101.6 x 26.1 x 147Â mm |
| Weight |
1.52Â lb / 690Â g |
Packaging Info
| Package Weight |
1.785 lb |
| Box Dimensions (LxWxH) |
8.8 x 6.1 x 2.9" |
