$2,800.17The Story
Waves StageGrid 400 Overview
- 1Description
- 2Analog I/O
- 3Digital and Sync I/O
- 4Features at a Glance
Add 32 high-performance mic preamps and 16 line outputs to your SoundGrid network with the Waves DSPRO StageGrid 4000, a digital stagebox housed in a rugged 4 RU rackmountable chassis. With a secure etherCON port designed for simple hookup to an eMotion LV1 live mixer or any other SoundGrid-compatible hardware/software, the StageGrid 4000 integrates easily into your stage- or studio-based setup. Its redundant AC power supply enables the stagebox to continue working even if power to primary power supply fails.
Each of the digitally controlled preamps offers up to 60 dB of gain, 48V phantom power with LED indication, and a locking XLR mic/line input jack. Analog outputs include 16 balanced XLR line outs and two 1/4" stereo headphone output with their own level controls. BNC wordclock I/O allows proper synchronization with other digital equipment, and eight channels of AES3 I/O are present for routing multichannel digital signal in and out of the stage box.
Analog I/O
- 32 x XLR 3-pin mic/line locking inputs
- 16 x XLR line outputs
- Dual 1/4" stereo headphone outputs with separate level controls
Digital and Sync I/O
- 8-channel AES3 digital I/O via XLR jacks (four female input connectors and four male output connectors)
- BNC I/O for synchronization connectivity (word clock)
- etherCON SoundGrid network port for a secure connection
Features at a Glance
- Built-in SoundGrid card for interfacing with eMotion LV1 live mixer or any other hardware/software in a SoundGrid network
- Connect a single Ethernet cable to easily record, mix, and monitor live or in the studio
- High-end mic preamps with digital remote control and per-channel clip indication
- 48V phantom power with LED indicator per input
- Up to 96 kHz sample rate
- Rugged 4 RU rackmountable chassis

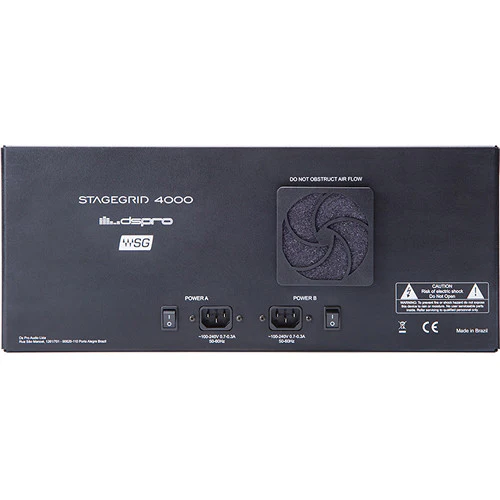

- Redundant AC power supply
In the Box
- Waves DSPRO StageGrid 4000 32-Input / 16-Output Digital SoundGrid Stagebox
- 2 x Power Cables
- Limited 1-Year Warranty
- Description
- Analog I/O
- Digital and Sync I/O
- Features at a Glance
Waves StageGrid 400 Specs
| Analog Inputs | 32 x XLR 3-Pin Female Balanced Mic/Line Inputs (Locking) |
| Analog Outputs | 16 x XLR 3-Pin Male Balanced Line Outputs 2 x 1/4" TRS Female Unbalanced Headphone Outputs |
| Digital I/O | 4 x XLR 3-Pin Female AES3 Inputs 4 x XLR 3-Pin Male AES Outputs |
| Network Ports | 1 x Neutrik etherCON GbE SoundGrid Port |
| Sync I/O | 1 x BNC Female Wordclock Input 1 x BNC Female Wordclock Output |
| Phantom Power | 48 VDC (On/Off Switchable per Channel) |
| Frequency Response | 20 Hz to 40 kHz (±0.1 dB, 96 kHz Sample Rate) |
| Gain Range | -4 to 60 dB |
| Maximum Input Level | +28 dBu (-4 dB Gain) |
| Maximum Output Level | +24 dBu (at 0 dBFS) |
| Headphone Output Power | 150 mW per Channel on 16 Ohms |
| Input Impedance | Analog In: 2.9 Kilohms AES3 In: 110 Ohms Word Clock: 75 Ohms |
| Output Impedance | Analog Out: 50 Ohms AES3 Out: 110 Ohms Word Clock: 75 Ohms |
| Phase Shift | Analog In: <10° at 20 kHz Analog Out: <5° at 20 kHz |
| Dynamic Range | Analog In: 115 dB (-60 dBFS, +20 dB Gain, 1 kHz, A-Weighted) Analog Out: 115 dB (-60 dBFS, 1 kHz, A-Weighted) Headphone Out: 100 dB |
| THD | Analog In/Out: 0.002% (-1 dBFS, +20 dB Gain, 1 kHz, A-Weighted) |
| EIN | -128 dBu A-Weighted (+60 dB Gain, 150-Ohm Load) |
| Sample Rate | 44.1 to 96 kHz |
| Word Clock | Voltage Level: 5 V TTL |
| Power Requirements | 110 or 240 VAC, 50/60 Hz |
| Power Consumption | 60 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Relative Humidity | Up to 90% Noncondensing |
| Rackmount | Rackmountable in 4 RU of Rack Space |
| Dimensions | 16.9 x 6.9 x 11.8" / 43 x 17.6 x 30 cm (Excluding Connectors) |
| Weight | 17.4 lb / 7.9 kg |
