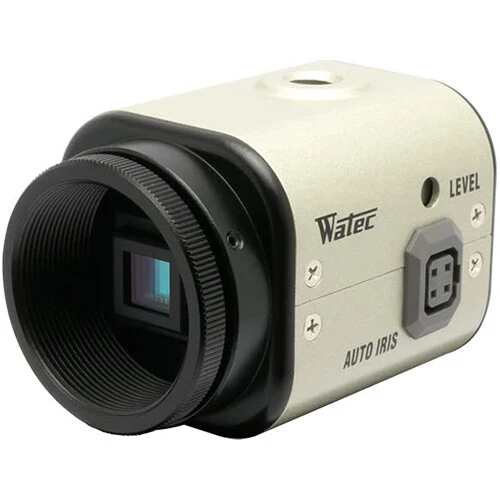

Watec WAT-2500 Indoor Analog Box Camera
HomeStore

Watec WAT-2500 Indoor Analog Box Camera

Watec WAT-2500 Indoor Analog Box Camera

$481.76

Original: $1,605.88

-70%
Watec WAT-2500 Indoor Analog Box Camera—

$1,605.88

$481.76

The Story

Watec WAT-2500 Overview

Designed for surveillance, machine vision, and medical imaging applications, the WAT-2500 Indoor Analog Box Camera from Watec uses a 1/2.8" progressive scan CMOS sensor to transmit 570 TVL resolution video. It's low-lux rating makes it ideal for low-light situations. The WAT-2500 features a CS mount lens with an adjustable back focus, a DC auto iris, a BNC video output, and NTSC/PAL support.

Suitable for surveillance, machine vision, and medical imaging applications
Minimum illumination of 0.0004 lux ensures visibility in low-light conditions
Internal synchronizing system
2D-DNR/3D-DNR
Vertical flip, horizontal flip, and horizontal/vertical flip mirror images
Additional features include backlight compensation, sharpness, white blemish correction, privacy masking, white balance, digital wide dynamic range, defog, digital zoom, and freeze

Items Included

  • Watec WAT-2500 Indoor Analog Box Camera
  • Watec WJDC12 12VDC Female Power Connector (Jack)
  • Hex Wrench
  • Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

Watec WAT-2500 Specs

Key Specs
Image Sensor
1/2.8"-Type CMOS
Output Formats
Composite:
1945 x 1097
Video I/O
1x BNC (Composite) Output
Built-In Microphone
No
Power I/O
1x DC (12VDC)
Imaging
Lens Mount
CS
Image Sensor
1/2.8"-Type CMOS
Day/Night
Yes
Exposure Control
Shutter Speed
1/10000 to 1/30 Second
Automatic Gain Control
Yes
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.0004 Lux
Video
Output Formats
Composite:
1945 x 1097
Interface
Video I/O
1x BNC (Composite) Output
Built-In Microphone
No
Sensors & Alarms
Alarm I/O
No
Power
Power I/O
1x DC (12VDC)
Power Consumption
185 mA (2.22 W)
Environmental
Operating Conditions
14 to 122°F / -10 to 50°C up to 95% Humidity
Storage Conditions
-22 to 158°F / -30 to 70°C up to 95% Humidity
General
Weight
2.8 oz / 79 g (Body Only)
Packaging Info
Package Weight
0.205 lb
Box Dimensions (LxWxH)
3.2 x 2.8 x 1.8"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
