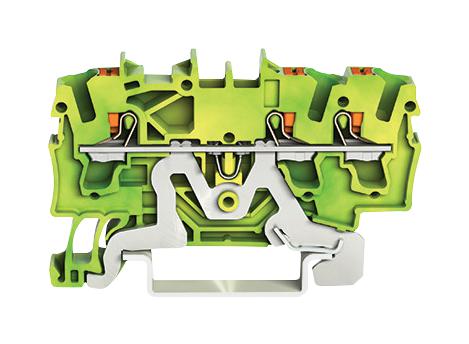

-70%Wago 2202-1307 DIN Rail Mount Terminal Block Ground 3 Ways 12 AWG 2.5 mm² Clamp 24 A—
$20.80
$6.24The Story
3-conductor ground terminal block with push-button. Certified by UL 60079, IEC 60079-0, CNCA-C23-01, TP TC 012/2011, IEC 60079, EN 60947, C22.2, IEC 60947, UL 1059.
- With test port, side and centre marking
- Connectable conductor materials is copper
- For DIN-rail 35 x 15 and 35 x 7.5
- Push-in CAGE CLAMP® connection technology
- Operating temperature range from -60 to +105°C (continuous)
- Green-yellow colour polyamide (PA66) insulation
- Fire load is 0.124MJ, weight is 9.2g
- Dimension width is 5.2mm x height is 59.2mm x depth from upper-edge of DIN-rail 32.9mm
- 2.5mm² nominal cross-section
- Total number of connection is 2 points
Other details
| Brand | WAGO |
| Part Number | 2202-1307 |
| Quantity | Each |
| CAD Multiple Formats EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
3-conductor ground terminal block with push-button. Certified by UL 60079, IEC 60079-0, CNCA-C23-01, TP TC 012/2011, IEC 60079, EN 60947, C22.2, IEC 60947, UL 1059.
- With test port, side and centre marking
- Connectable conductor materials is copper
- For DIN-rail 35 x 15 and 35 x 7.5
- Push-in CAGE CLAMP® connection technology
- Operating temperature range from -60 to +105°C (continuous)
- Green-yellow colour polyamide (PA66) insulation
- Fire load is 0.124MJ, weight is 9.2g
- Dimension width is 5.2mm x height is 59.2mm x depth from upper-edge of DIN-rail 32.9mm
- 2.5mm² nominal cross-section
- Total number of connection is 2 points
Other details
| Brand | WAGO |
| Part Number | 2202-1307 |
| Quantity | Each |
| CAD Multiple Formats EN | |
| Manufacturer Catalogue EN | |
