VocoPro BENCHMARK-AD Overview
Get better performance from your wireless microphone setup with the Benchmark-AD from VocoPro. Designed for use when multiple wireless systems are used in the same location, it allows you to substitute the antennas that are included in your wireless systems with this combination of two active directional antennas, antenna distributor, and BNC cables for more efficient wireless signal transmission without the intermodulation dropouts that occur when multiple antennas are used.
- Replace multiple wireless receivers' whip antennas with one pair of directional fin antennas to avoid dropout cause by multipath reflections and cross-polarization fades
- Distributes RF signal from antenna pair to eight receivers
- Internal antenna booster boosts the receiver range up to 600 feet

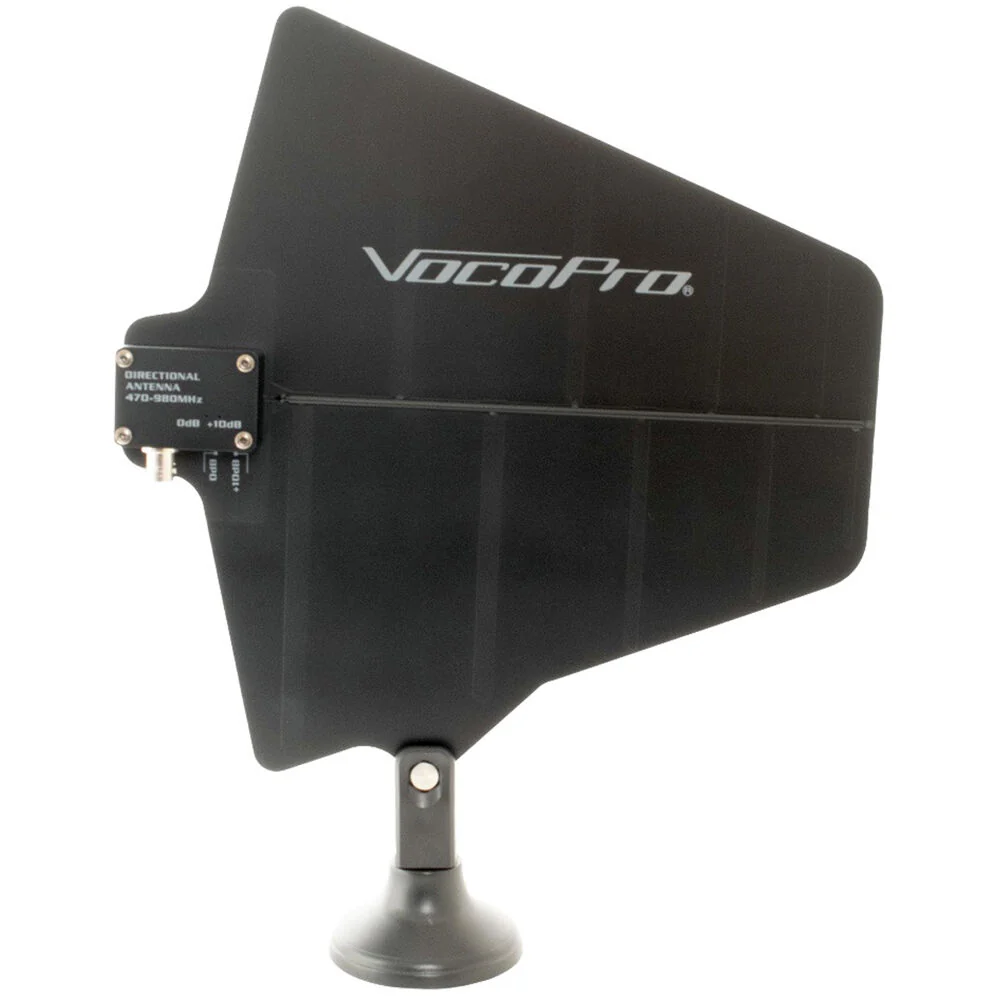

- Directional fin antennas can connect to a standard 5/8" thread mic stand or 3/8" thread with included adapter
- Daisy chain up to three antenna distributors to share one pair of directional fin antenna for multiple wireless microphone receivers across the UHF frequency spectrum
- Includes rackmount kit for installation
- Ultrawide 470 to 980 MHz range for universal compatibility with UHF wireless microphone systems
Items Included

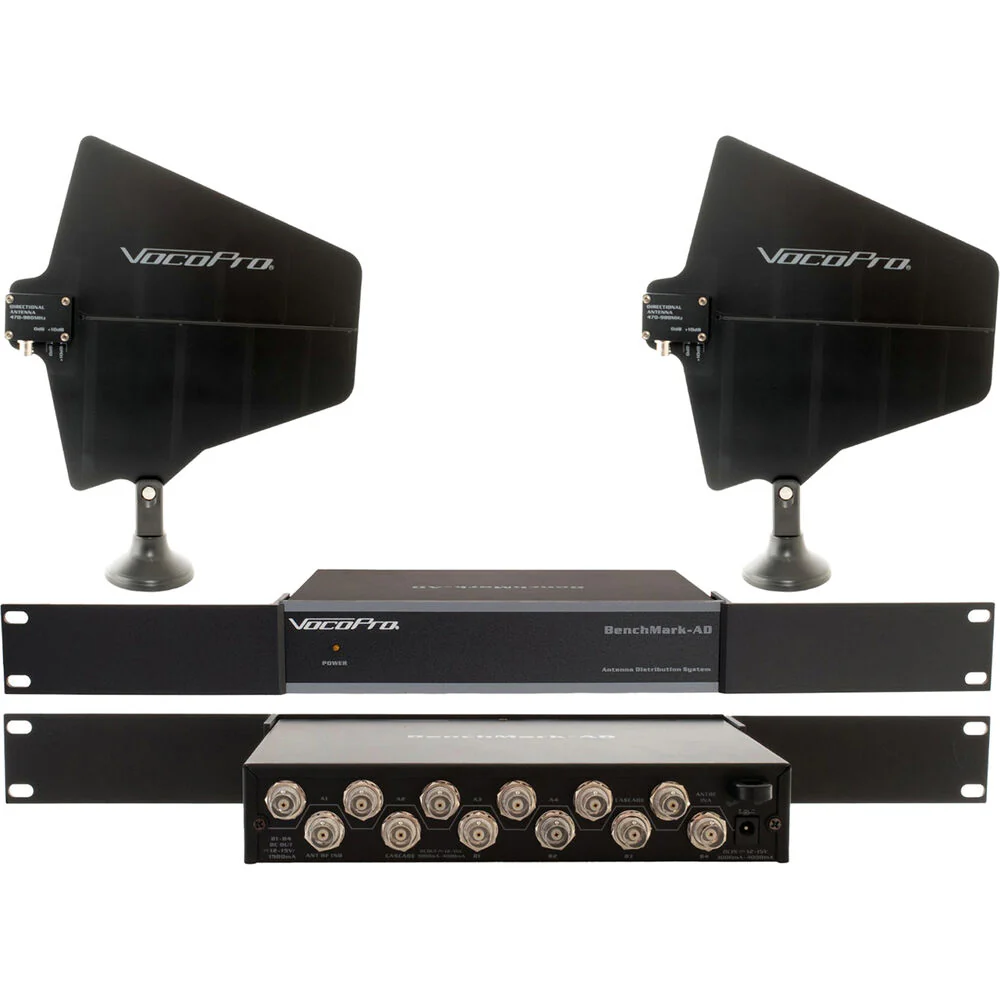

- VocoPro Benchmark-AD Antenna Distribution System with Two Active Directional Antennas (470 to 980 MHz)

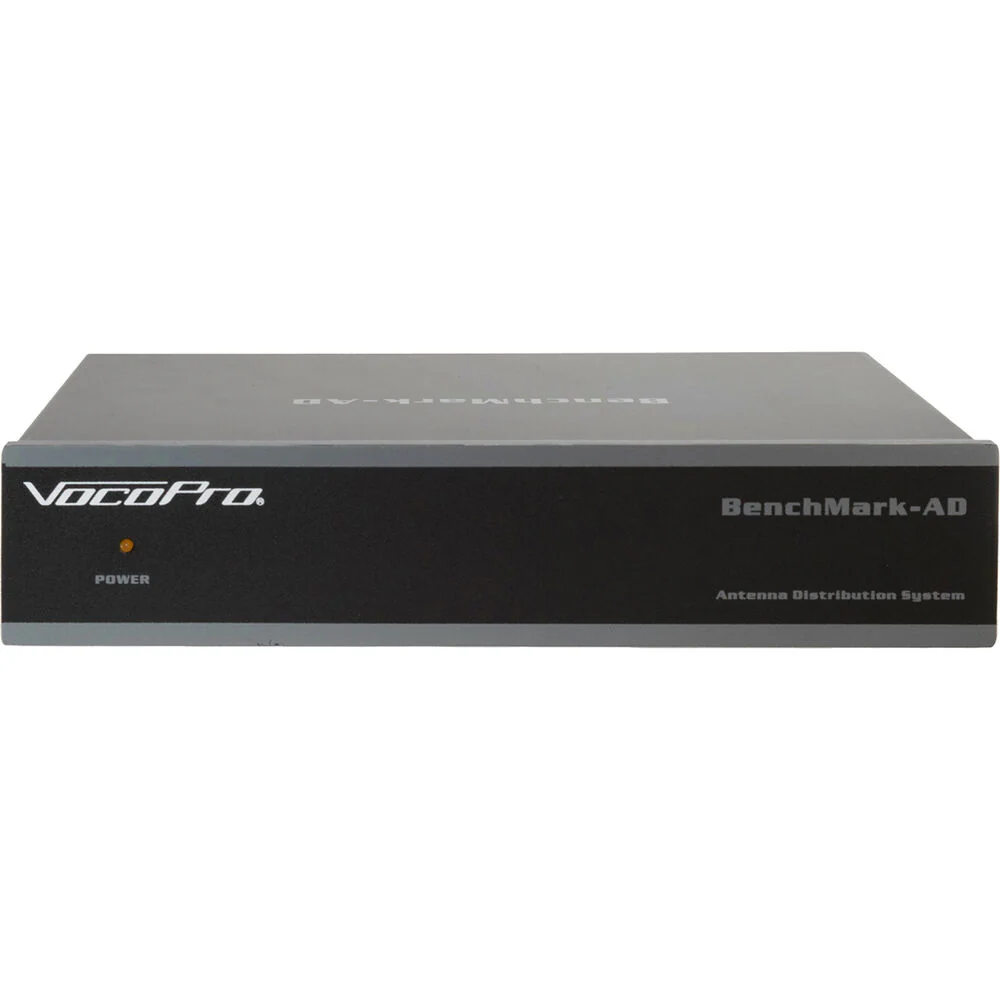

- Antenna Distributor

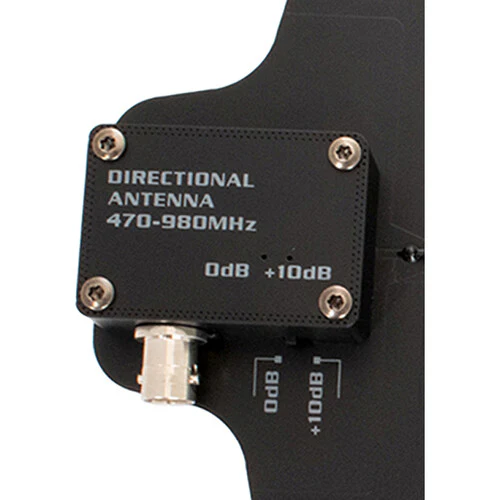

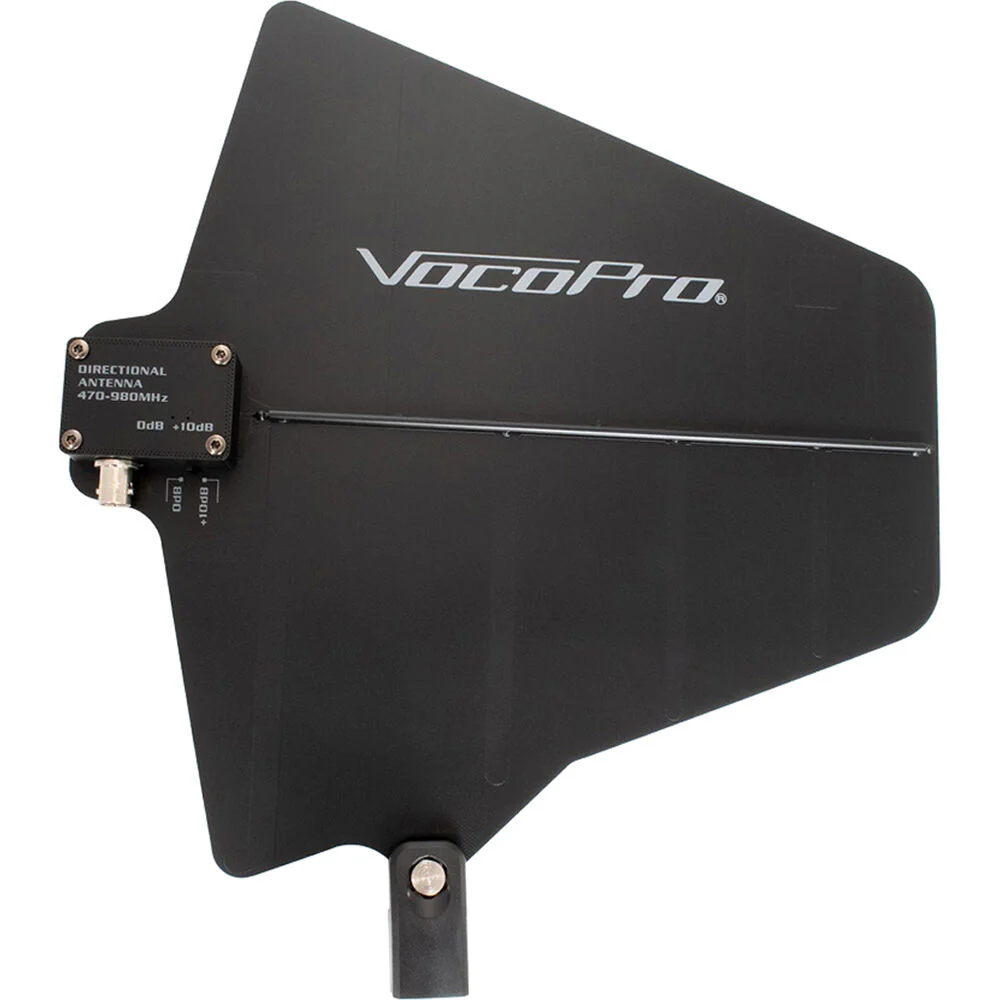

- 2 x Two Active Directional Antennas

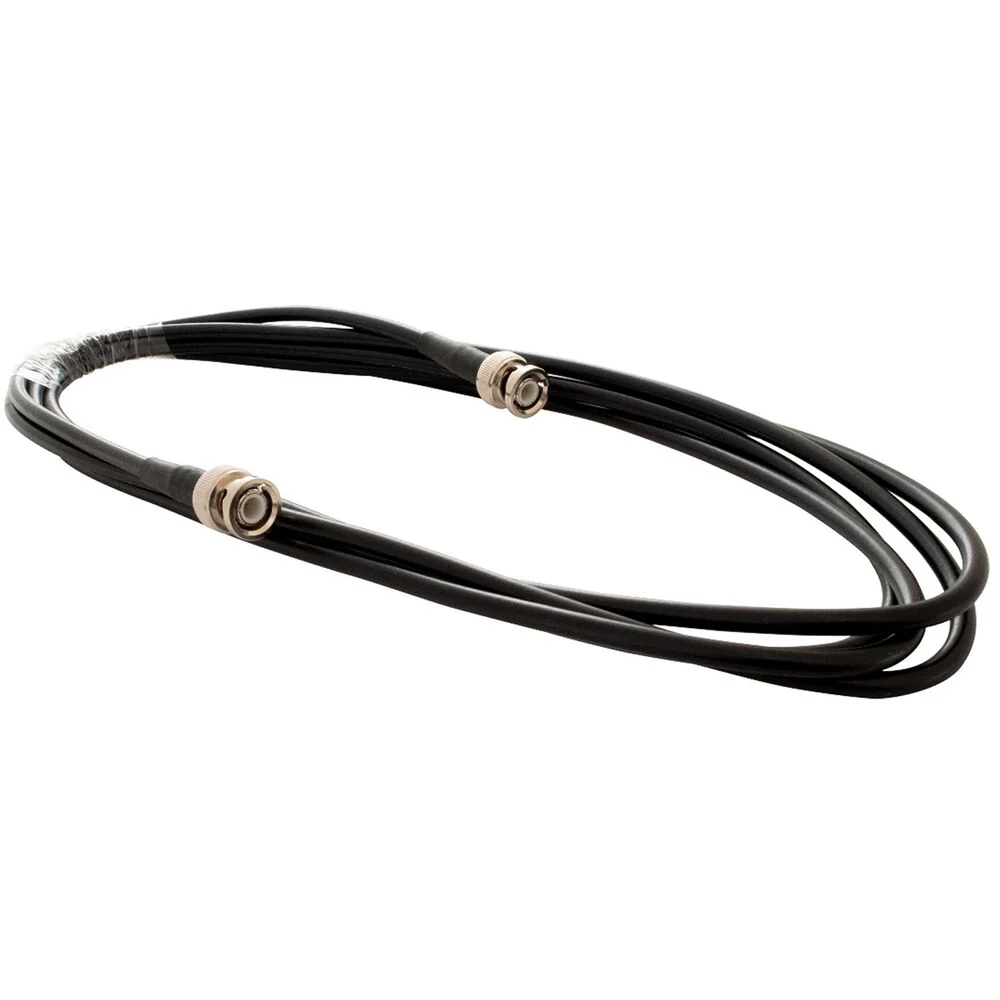

- 2 x Long BNC Cable
- 10 x Short BNC Cable
- Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
VocoPro BENCHMARK-AD Specs

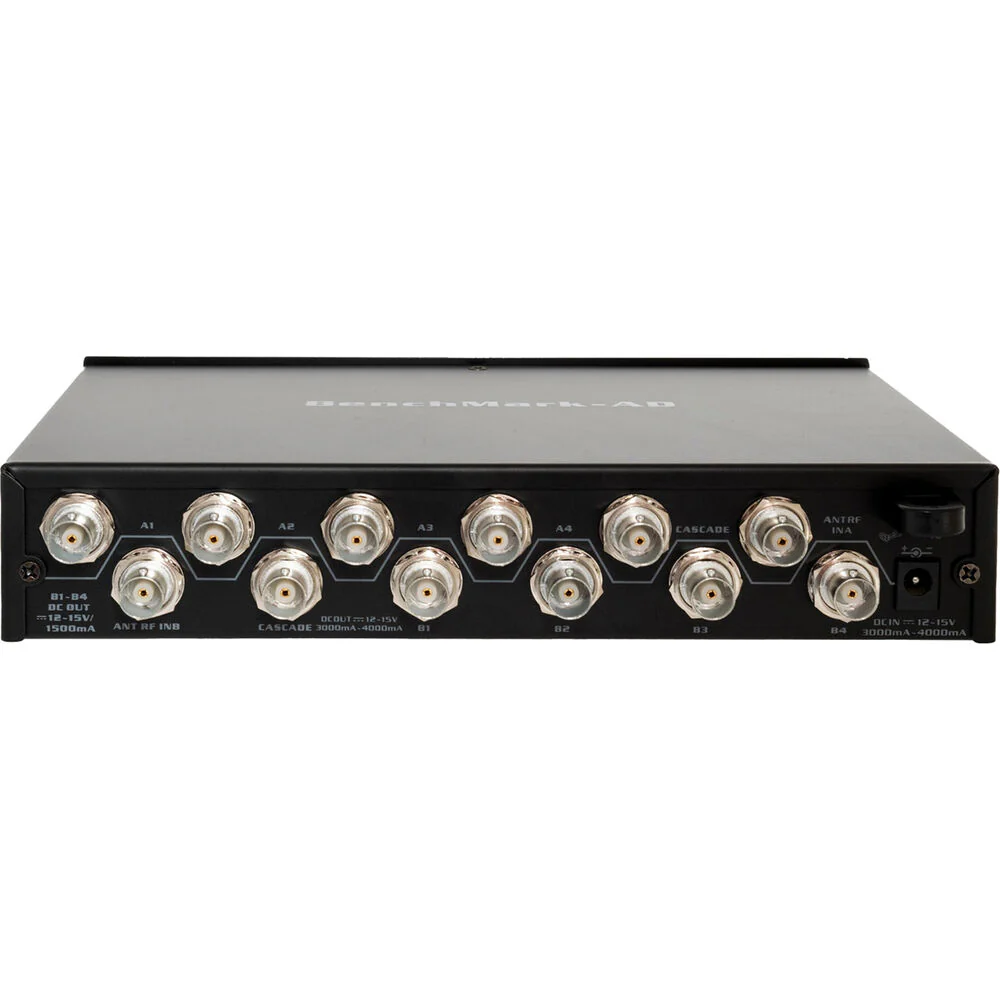

| Audio I/O |
8x BNC Output
2x BNC Input 2x BNC Input/Output |
| Wireless |
UHF
*Built-In |
| Mobile App Compatible |
No
|
| Power Source |
AC Input (Included)
|
| DC Input Power |
12 VDC at 200 mA
|
| Operating Current |
2 A (Maximum)
|
| Mounting |
Side: 2x Rack Ears
|
| Color |
Black
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
18 x 17 x 8" / 45.7 x 43.2 x 20.3Â cm
|
| Weight |
10Â lb / 4.5Â kg
|
| Package Weight |
9.835 lb
|
| Box Dimensions (LxWxH) |
15.9 x 15.4 x 10.5"
|
