$4,778.01The Story

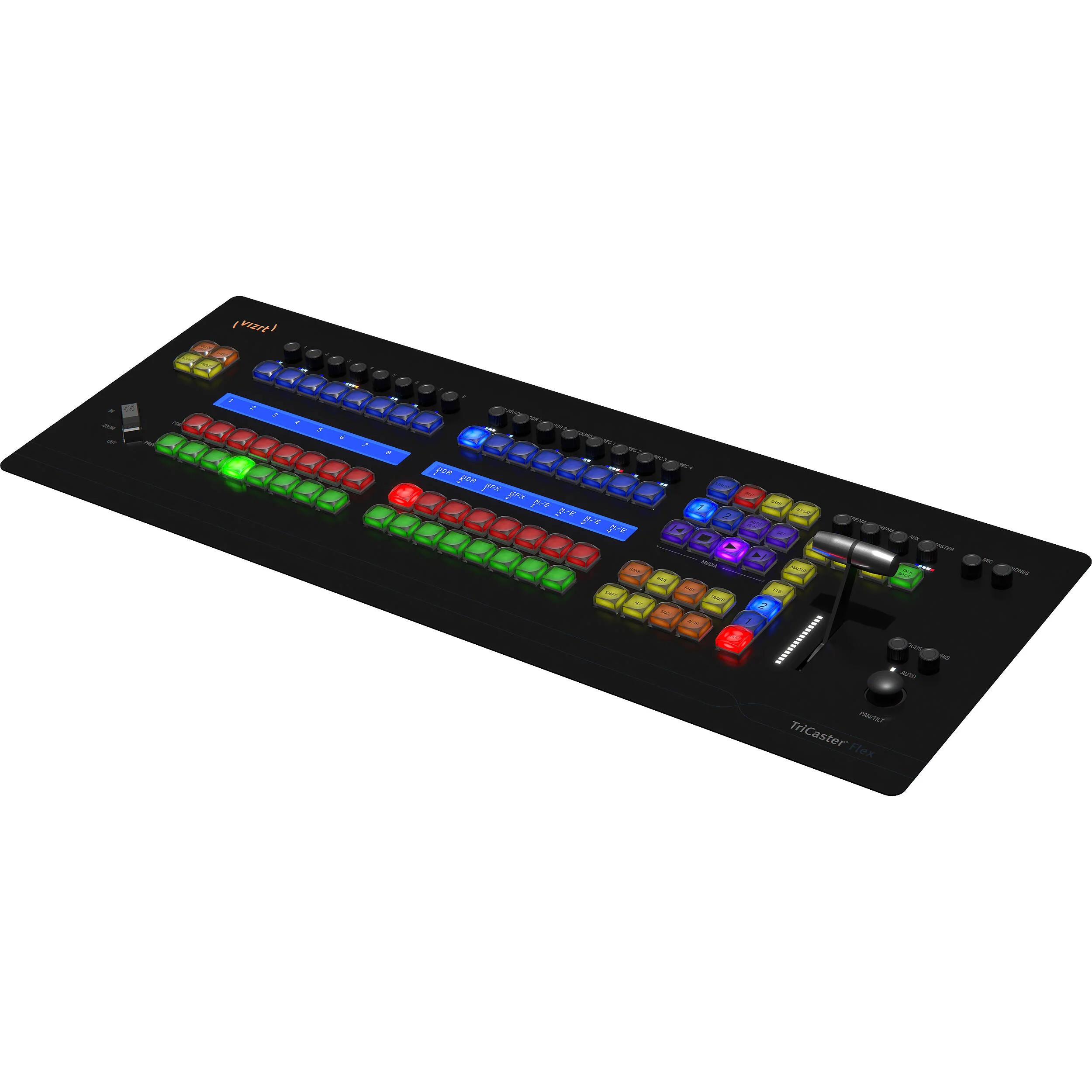

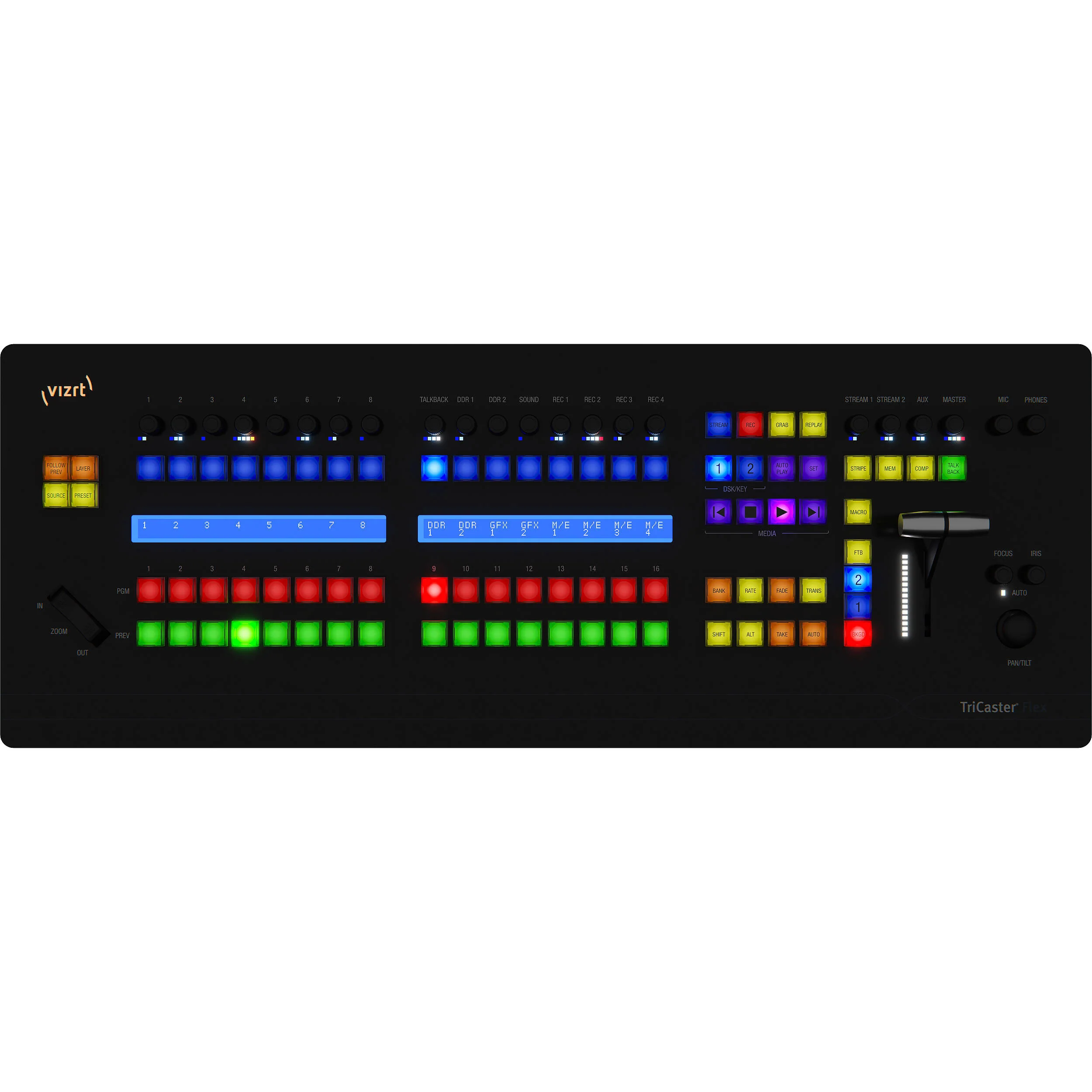

Vizrt Flex Control Panel Overview
Use this NewTek Flex Control Panel in tandem with your preexisting TriCaster system to mix audio and video, control PTZ cameras, expand your audio inputs and outputs, incorporate NDI connectivity, and facilitate talkback communication in your studio space with a single panel. Tactile manual control buttons, a T-bar, and display LCD screens for labelling offer an intuitive control experience.

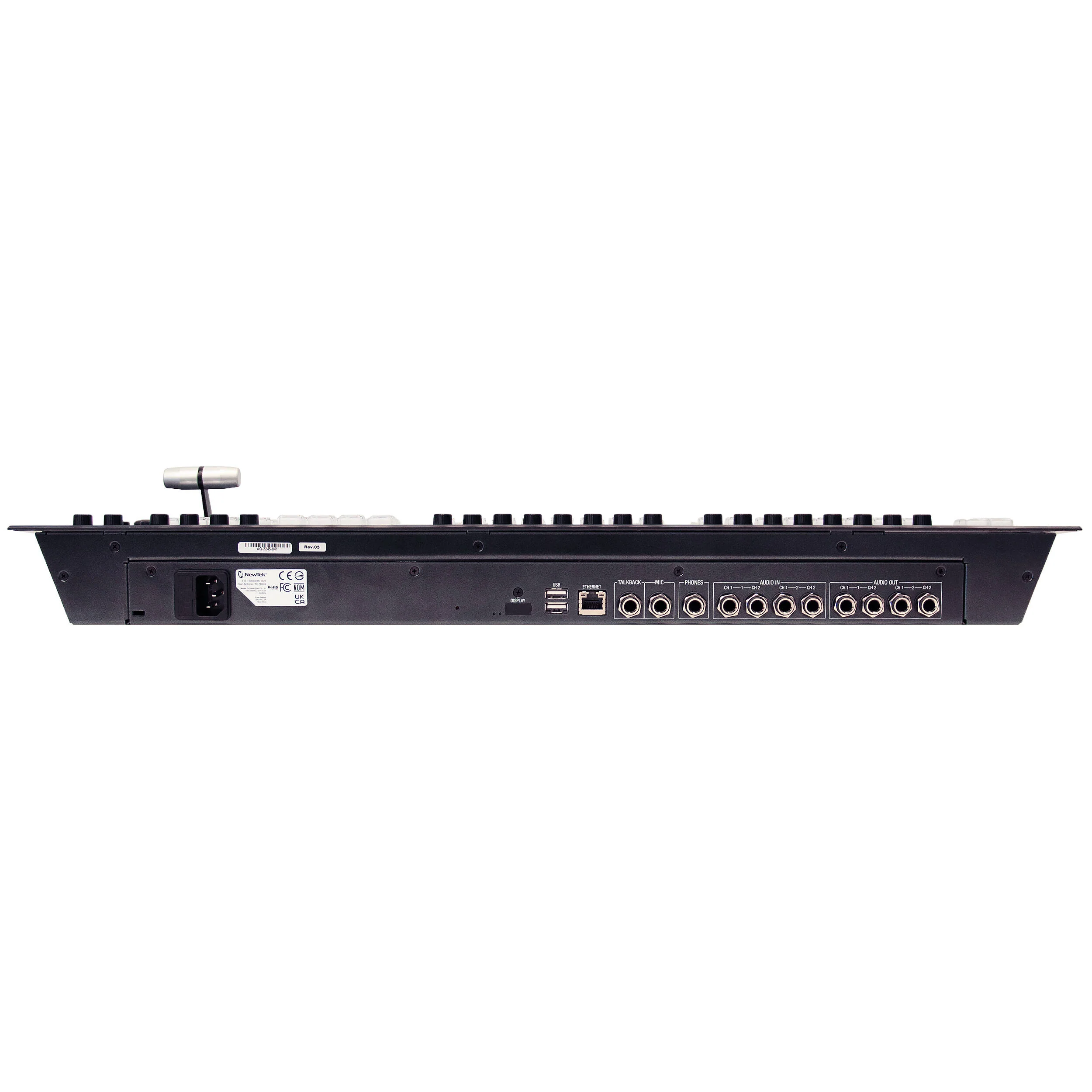

Two pairs of 1/4" stereo audio inputs and two pairs of 1/4" stereo audio outputs on the back of the panel expand your audio ecosystem. An RJ45 Ethernet port facilitates NDI connection. Talkback and microphone inputs and a headphone output port allow you to communicate between your camera operators and talent.
- Intuitive layout mapped to the Video Mix Engine user interface
- IP-based connectivity with support for multi-engine control over the network
- Responsive multi-bus operation with independently assignable control stripes
- Practical lighting, variable T-bar illumination, and dynamic LCD label displays
- Precision controls for expert handing of real-time video operations
- 16 direct crosspoints with bank and stripe functions
- Row lighting color follows delegated UI
- 2 x 40 character, two row LCD screens
- PTZ control delegation and zoom rocker
- Mini joystick for pan/tilt control, focus/iris control with auto function
- 12 fader controls for audio inputs/outputs, talkback, DDR 1-2, sound, record 1-4
- Four fader controls for stream 1 and 2, aux and master out, mic and headphone level
- Media players and macro control
- Stream, capture, and reply
- Transitions and T-bar
NewTek TriCaster 1 Pro
NewTek TriCaster TC1
NewTek TriCaster 410 Plus
NewTek TriCaster Mini 4K
NewTek TriCaster Mini X
In the Box
- Vizrt Flex Control Panel for TriCaster Devices
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Vizrt Flex Control PanelSpecs
| Compatibility |
NewTek TriCaster 2 Elite / TriCaster 1 Pro / TriCaster TC1 / TriCaster 410 Plus / TriCaster Mini 4K / TriCaster Mini X
|
| USB I/O |
2 x USB-A 2.0 Female Input
|
| Video I/O |
1x RJ45 Input/Output
|
| Audio I/O |
2x 1/4" Mic Input
1x 1/4" Headphone Output 4x 1/4" Line Input 4x 1/4" Line Input |
| Power Source |
PoE
|
| Color |
Black
|
| Dimensions |
25 x 9.1 x 3.8" / 63.5 x 23.1 x 9.7Â cm
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
14.5 lb
|
| Box Dimensions (LxWxH) |
29.6 x 16 x 8.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
