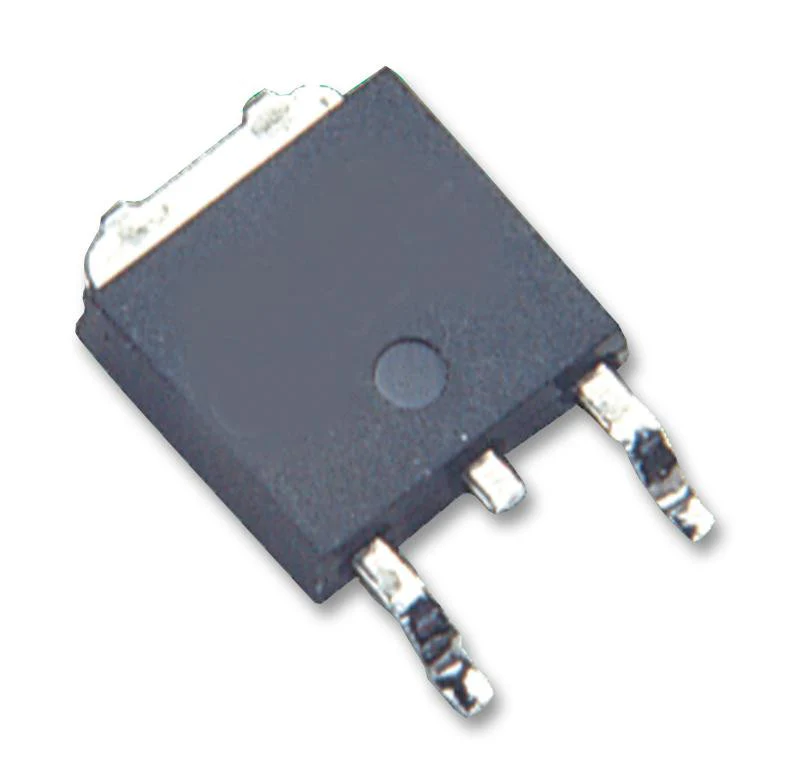

-70%VISHAY IRFR320TRPBF MOSFET Transistor, N Channel, 3.1 A, 400 V, 1.8 ohm, 10 V, 4 V—
$2.66
$0.80The Story
This is a MOSFET Transistor, N Channel, 3.1 A, 400 V, 1.8 ohm, 10 V, 4 V product from VISHAY with the model number IRFR320TRPBF
Product details
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 3.1A |
| Drain Source Voltage Vds | 400V |
| On Resistance Rds(on) | 1.8ohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs | 4V |
| Power Dissipation Pd | 42W |
| Transistor Case Style | TO-252 |
| No. of Pins | 3Pins |
| Operating Temperature Max | 150°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | VISHAY |
| Part Number | IRFR320TRPBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
This is a MOSFET Transistor, N Channel, 3.1 A, 400 V, 1.8 ohm, 10 V, 4 V product from VISHAY with the model number IRFR320TRPBF
