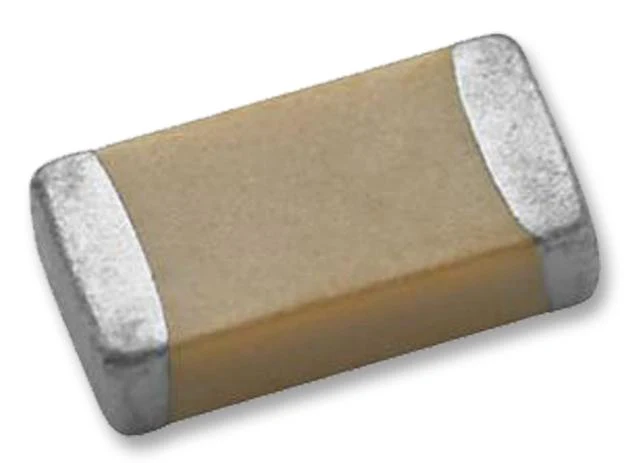

![Vishay HV1812Y152KXVATHV SMD Multilayer Ceramic Capacitor 1500 pF 4 kV 1812 [4532 Metric] ± 10% X7R HV](https://img.tanotishq.shop/images/product/vishay-hv1812y152kxvathv-smd-multilayer-ceramic-capacitor-1500-pf-4-kv-1812-4532-metric-plusmn-10-x7r-hv-1.jpg)
$0.73
Original: $2.43
-70%Vishay HV1812Y152KXVATHV SMD Multilayer Ceramic Capacitor 1500 pF 4 kV 1812 [4532 Metric] ± 10% X7R HV—
$2.43
$0.73The Story
The Vishay HV high voltage series are surface mount multilayer ceramic chip capacitors with X7R dielectric. The capacitance range includes 180pF to 15nF. These multilayer ceramic chip capacitors are used for high voltage applications. They have excellent reliability and thermal shock performance. These capacitors can be used as include input filter capacitors, output filter capacitors, snubber capacitors to reduce MOSFET voltage spikes and filtering for switching power supplies.
- High voltage breakdown compared to standard design
- High reliable serial electrode design
- Protective surface coating may be required to prevent surface arcing
- Wet build process and Ni barrier 100% tin plated matte finish
- Reliable noble metal electrode (NME) system
- EIA 1812, 1825, 2220, 2225 case sizes available
- Available with 3000VDC, 4000VDC and 5000VDC voltages
- Temperature coefficient of capacitance (TCC) is ±15% from -55°C to +125°C with 0 VDC applied
- Available with ±5%, ±10% and ±20% capacitance tolerance
- Operating temperature range from -55°C to +125°C
Industrial, Power Management, Consumer Electronics, Portable Devices
Other details
| Brand | VISHAY |
| Part Number | HV1812Y152KXVATHV |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
