VISATON 2826 Speaker, Mini, 0.9 ", 500 mW, 8 ohm, 74 dB, 300 Hz to 19 kHz
HomeStore

VISATON 2826 Speaker, Mini, 0.9 ", 500 mW, 8 ohm, 74 dB, 300 Hz to 19 kHz

VISATON 2826 Speaker, Mini, 0.9 ", 500 mW, 8 ohm, 74 dB, 300 Hz to 19 kHz

$4.21

Original: $14.02

-70%
VISATON 2826 Speaker, Mini, 0.9 ", 500 mW, 8 ohm, 74 dB, 300 Hz to 19 kHz—

$14.02

$4.21

The Story

Product Overview

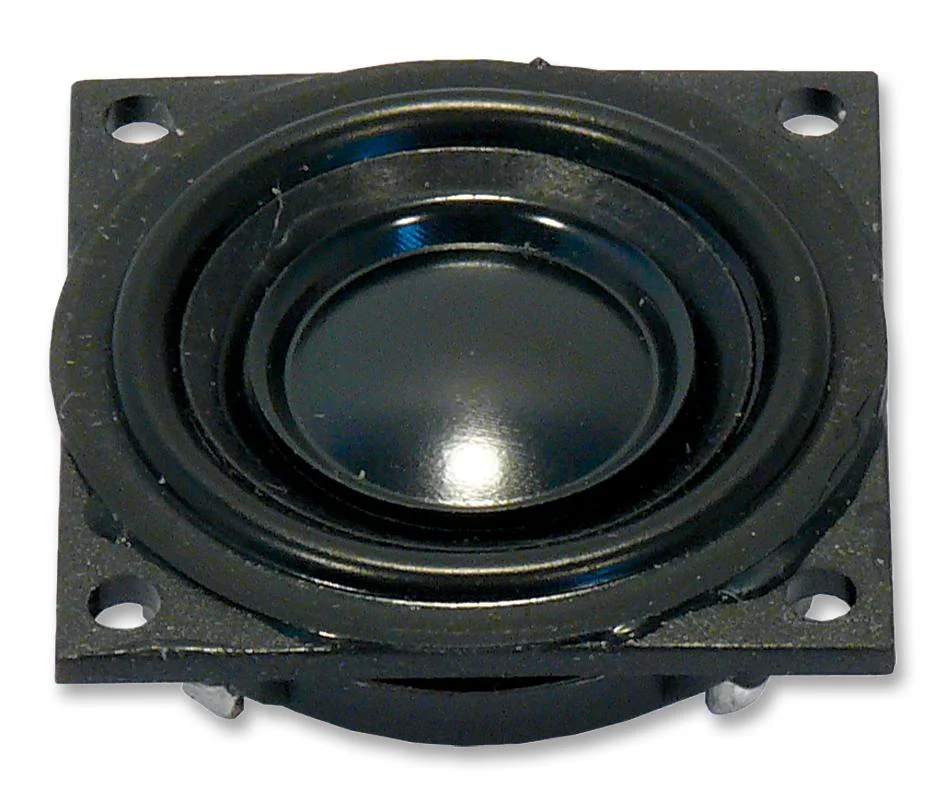

The 2826 is a 0.9-inch Miniature Speaker with plastic diaphragm and square plastic basket with 4 mounting holes. IP protection class for front side when built into a sealed enclosure. Typical applications include voice and signal output in machines and other equipment both indoors and outdoors and model construction.

  • 12cm Voice coil diameter
  • IP64 Protection rating

Applications

Audio, Consumer Electronics

Product details

Technical Specifications

Driver Type

Miniature

External Width - Metric

23mm

Resonant Frequency

530Hz

Speaker Shape

Round with Square Frame

Product Dimensions

23mm x 23mm x 9.5mm

Frequency Range

300Hz to 19kHz

Temperature Grade

-

Product Range

-

Power Rating Max

1W

External Depth - Metric

9.5mm

External Depth - Imperial

0.374"

Impedance

8ohm

Power Rating Nom

500mW

Sound Pressure Level (SPL)

74dB

External Width - Imperial

0.906"

Frequency Response Min

300Hz

Frequency Response Max

19kHz

IP Rating

-

Speaker Mounting

Panel Mount

External Length - Metric

23mm

External Length - Imperial

0.906"

SVHC

No SVHC (21-Jan-2025)

Other details

Brand VISATON
Part Number 2826
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

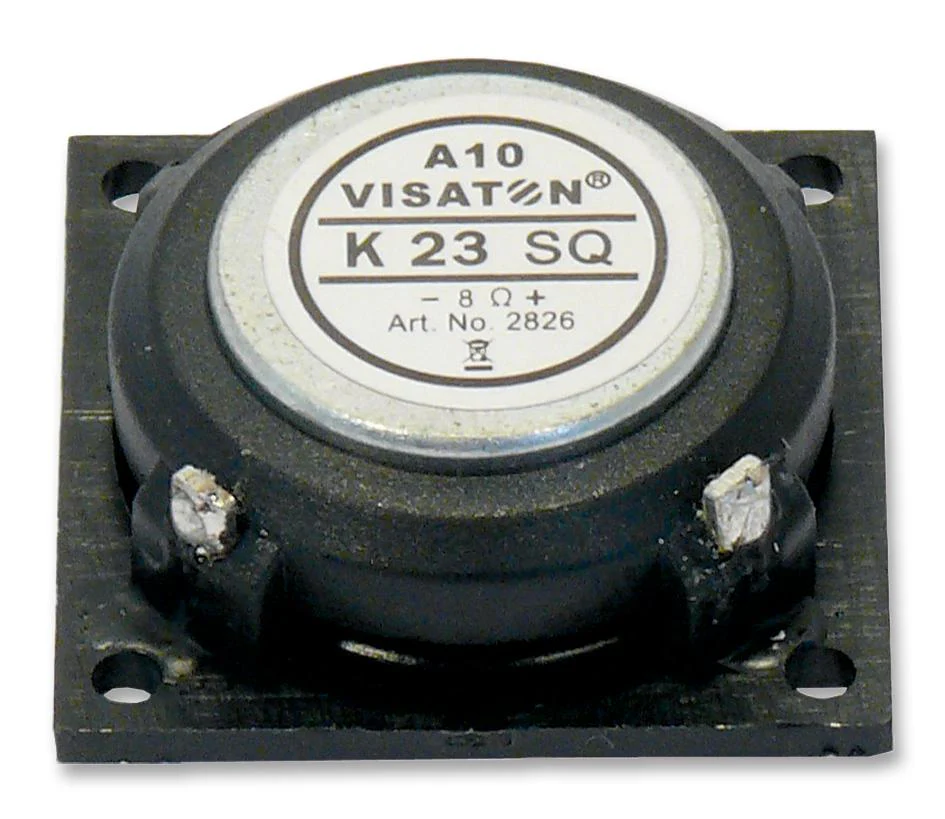

VISATON 2826 Speaker, Mini, 0.9 ", 500 mW, 8 ohm, 74 dB, 300 Hz to 19 kHz - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Product Overview

The 2826 is a 0.9-inch Miniature Speaker with plastic diaphragm and square plastic basket with 4 mounting holes. IP protection class for front side when built into a sealed enclosure. Typical applications include voice and signal output in machines and other equipment both indoors and outdoors and model construction.

  • 12cm Voice coil diameter
  • IP64 Protection rating

Applications

Audio, Consumer Electronics

Product details

Technical Specifications

Driver Type

Miniature

External Width - Metric

23mm

Resonant Frequency

530Hz

Speaker Shape

Round with Square Frame

Product Dimensions

23mm x 23mm x 9.5mm

Frequency Range

300Hz to 19kHz

Temperature Grade

-

Product Range

-

Power Rating Max

1W

External Depth - Metric

9.5mm

External Depth - Imperial

0.374"

Impedance

8ohm

Power Rating Nom

500mW

Sound Pressure Level (SPL)

74dB

External Width - Imperial

0.906"

Frequency Response Min

300Hz

Frequency Response Max

19kHz

IP Rating

-

Speaker Mounting

Panel Mount

External Length - Metric

23mm

External Length - Imperial

0.906"

SVHC

No SVHC (21-Jan-2025)

Other details

Brand VISATON
Part Number 2826
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
