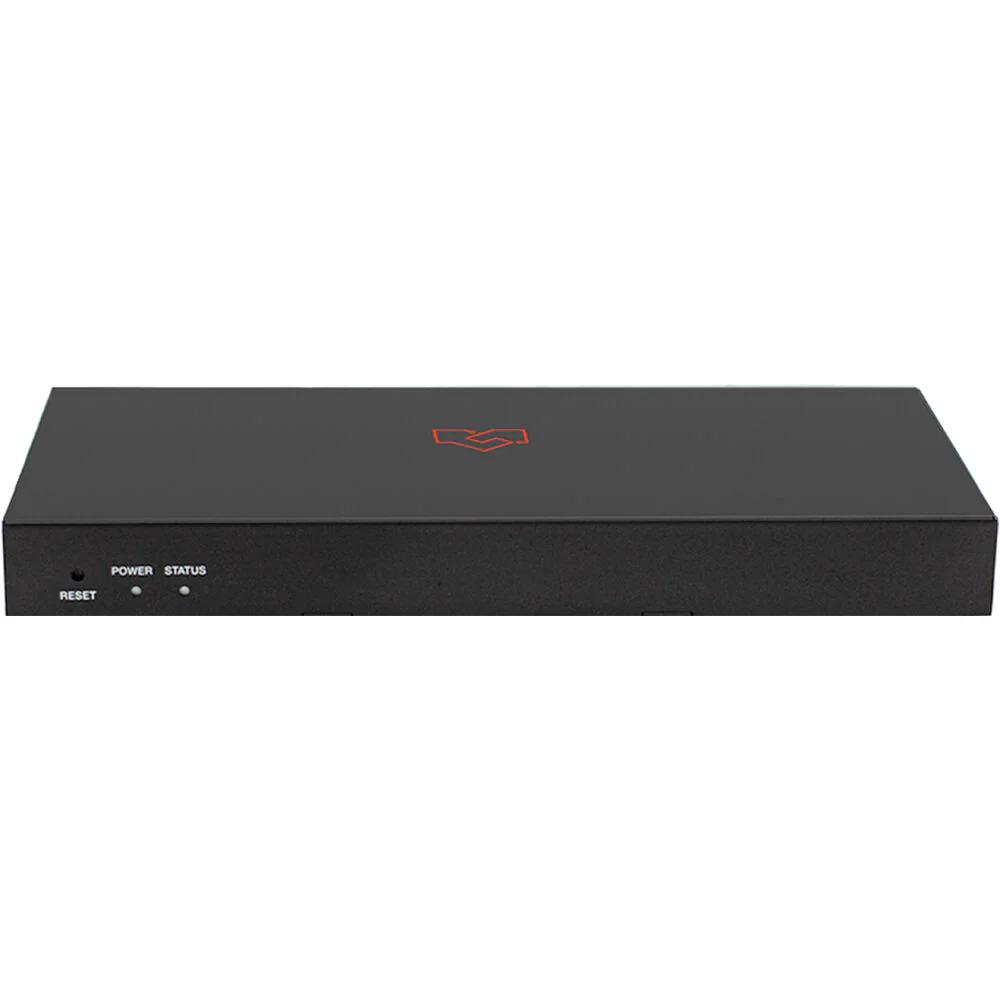

VigilLink VLIP-JP1G-CTRL (VER.2) Overview
The VigilLink Video over IP Controller is designed to control and manage JPEG2000 IP products like the JP4K3K/JP4K6K encoder or decoder. Dual network ports with 328' transmission distance using a CAT 5e/6/6/6a/7 cable isolate the control network and the Multicast video distribution network. The controller supports built-in WebGUI, TCP, and RS-232 control. It is powered via PoE connection and features wide-band 12V IR signal receiving with the included cable.
- Flexibly support Auto, DHCP, and Manual three types of IP configurations
- HTTPS, SSH, SFTP security compatible
- Built-in WebGUI control interface, supporting Drag & Drop operations
- Supports image preview
- Support video, audio, RS-232, IR, KVM, CEC control, and management of the distributed system
- Dual network ports (VIDEO LAN port supports PoE function) to isolate Controls and Multicast networks
- Support LAN/RS-232 port control and third-party central control
- Support IR signal receiving (3.5mm audio jack, 12V level)
- 4 channel GPIO control ports (5/12V optional level)
- Multiple circuits protection, lightning protection and ESD design
Items Included
- VigilLink Video over IP Controller
- IR Receiver Cable (4.9')
- 3 x 3-Pin Phoenix to 3.81mm Connector
- 2 x 6-Pin Phoenix to 3.81mm Connector
- Locking Power Adapter (12V, 2.5A)
- 2 x Mounting Ear
- 4 x Machine Screw
- Limited 6-Year Manufacturer Warranty
Additional Resources
VigilLink VLIP-JP1G-CTRL (VER.2) Specs
| Compatibility |
VigilLink JP4K6K / JP4K3K
|

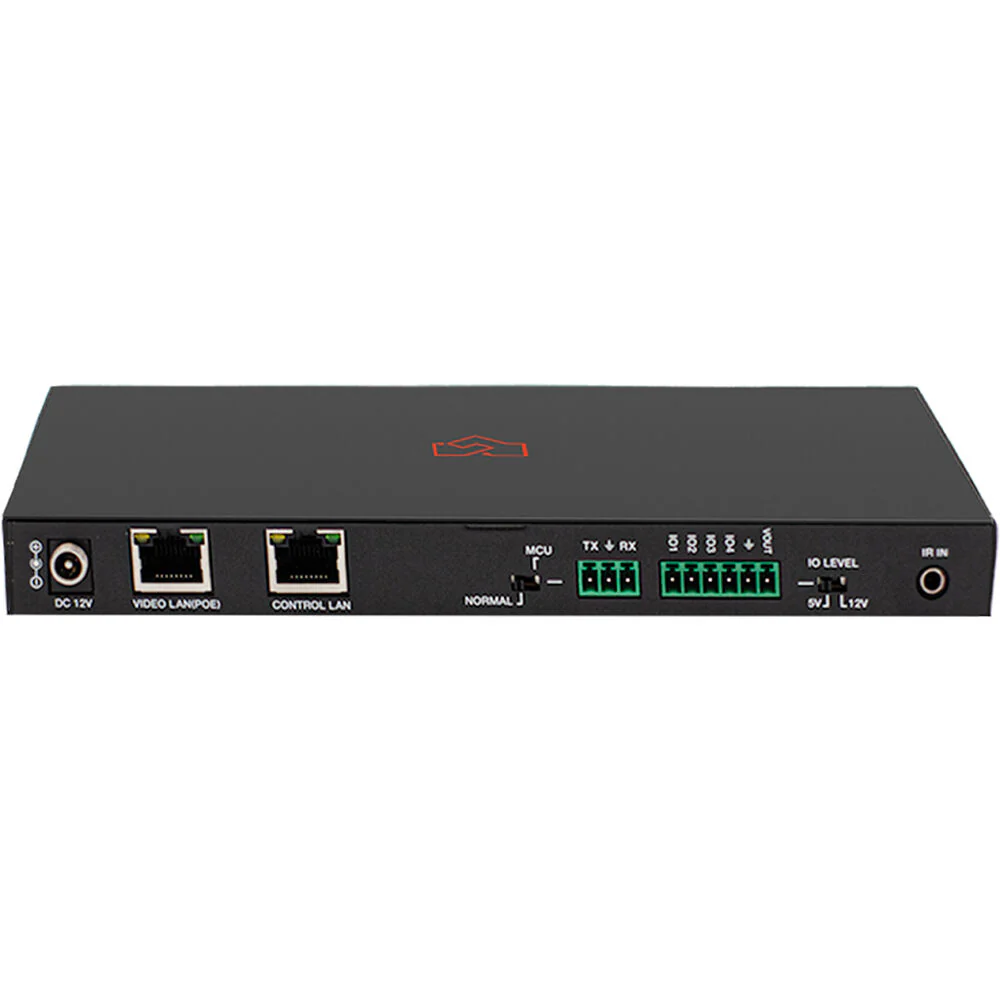

| Control Ports |
2 x RJ45 LAN
1 x 3.5mm IR Input 1 x 6-Pin 3.81mm Phoenix Digital I/O 1 x RS-232 3-Pin 3.81mm Phoenix |
| Wireless |
Yes
|
| Network |
328' / 100 m (Bandwidth)
|
| Power Source |
PoE
|
| DC Input Power |
12 VDC at 1 A
|
| Power Consumption |
4.5 W
|
| Mounting |
2x Mounting Ears
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°CÂ
|
| Dimensions |
8 x 3.9 x 0.8" / 204 x 98.5 x 21.5Â mm
|
| Weight |
18Â oz / 509Â g
|
| Package Weight |
1.965 lb
|
| Box Dimensions (LxWxH) |
10.7 x 6.8 x 2.9"
|
