Venus Optics RAN2875BPLEF Overview

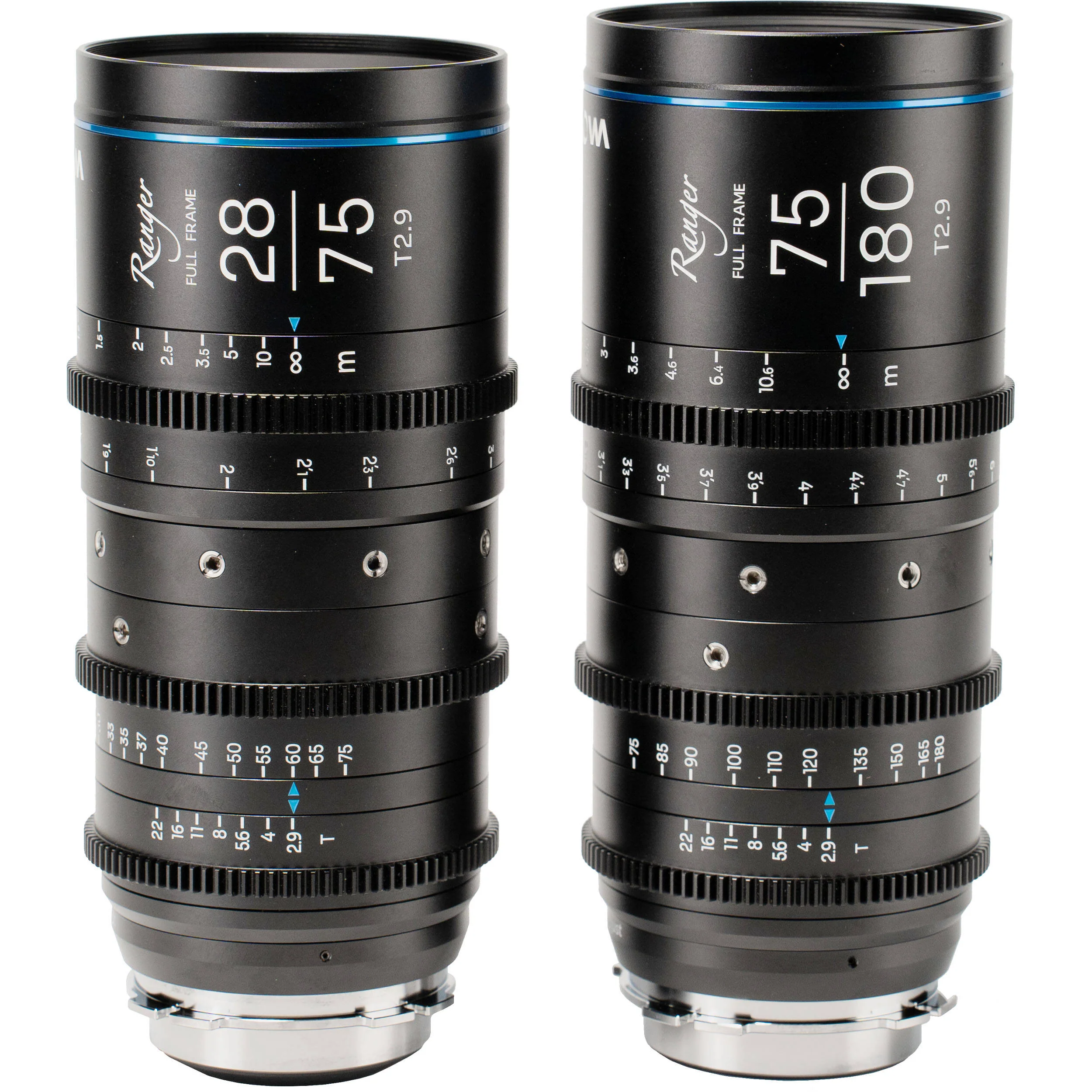

This Laowa Ranger T2.9 Full Frame Cine Zoom 2-Lens Kit from Venus Optics outfits you with two zoom lenses with varying focal lengths suited for full-frame shooting with ARRI PL and Canon EF cameras. Both the 28-75mm and 75-180mm lenses feature a maximum aperture of T2.9, 11 aperture blades, and 77mm filter thread. Mirrored 0.8 MOD gearing for the focus, aperture, and zoom rings on both lenses allows you to use the same follow focus or zoom system without needing to adjust when you switch out your lens.
A versatile addition to your full frame ARRI PL or Canon EF mount camera loadout, this Laowa Ranger 28-75mm T2.9 Cine Zoom Lens from Venus Optics allows you to capture high-quality images throughout its 28 to 75mm zoom range. The parfocal design of the lens features 11 aperture blades in a 22-element and 18-group construction. It has an aperture range of T2.9 to T22 and an 80mm front diameter with minimal focus breathing. Capture everything from establishing wide shots to close-ups with background blur with the Laowa Ranger.
Control of focus, aperture, and zoom is intuitive thanks to the throw of each 0.8 MOD gear. Markings on the lens are available in both feet and meters. The lens has a 75.4° field of view at the wide end and a 32.3° field of view at the tele end with a 43.2mm image circle. An included EF bayonet adapts the native PL mount for compatibility with a wider range of cameras, while a 77mm front filter thread allows you to attach compatible lens filters. Additional back focus adjustment can be achieved with the provided shim set.
- Maximum T2.9 aperture for deep depth of view and increased area focus
- 11 aperture blades for smooth, circular bokeh
- Lens construction of 22 elements in 18 groups
- 270° focus rotation, 42° aperture rotation, 100° zoom rotation
- Lens markings in feet and meters
- 0.23x maximum magnification, 2.7x zoom ratio
- EF mount bayonet included; built-in lens support foot
- 77mm front filter thread
- 19.3" minimum focusing distance
- Industry-standard 0.8 MOD focus, aperture, and zoom rings for use with follow focus systems
A versatile addition to your full frame ARRI PL or Canon EF mount camera loadout, this Laowa Ranger 75-180mm T2.9 Cine Zoom Lens from Venus Optics allows you to capture high-quality images throughout its 75 to 180mm zoom range. The parfocal design of the lens features 11 aperture blades in a 14-element and 14-group construction. It has an aperture range of T2.9 to T22 and an 80mm front diameter with minimal focus breathing. Capture everything from portraits to long-distance wildlife shots with the Laowa Ranger.
Control of focus, aperture, and zoom is intuitive thanks to the throw of each 0.8 MOD gear. Markings on the lens are available in both feet and meters. The lens has a 32.2° field of view at the wide end and a 13.7° field of view at the tele end with a 43.2mm image circle. An included EF bayonet adapts the native PL mount for compatibility with a wider range of cameras, while a 77mm front filter thread allows you to attach compatible lens filters. Additional back focus adjustment can be achieved with the provided shim set.
- Maximum T2.9 aperture for deep depth of view and increased area focus
- 11 aperture blades for smooth, circular bokeh
- Lens construction of 14 elements in 14 groups
- 270° focus rotation, 42° aperture rotation, 100° zoom rotation
- Lens markings in feet and meters
- 0.217x maximum magnification, 2.4x zoom ratio
- EF mount bayonet included; built-in lens support foot
- 77mm front filter thread
- 2.9' minimum focusing distance
- Industry-standard 0.8 MOD focus, aperture, and zoom rings for use with follow focus systems

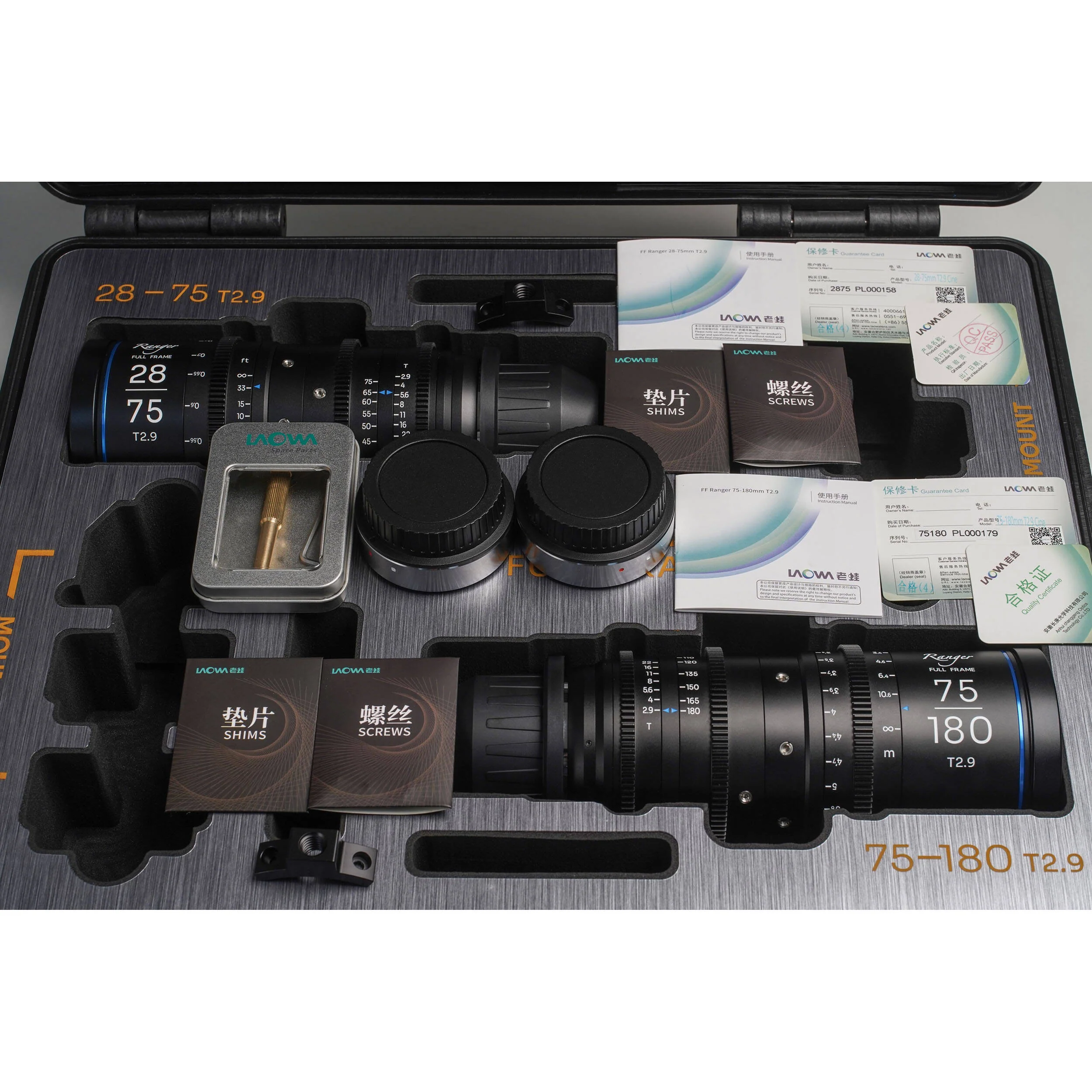

In the Box
- Venus Optics Laowa Ranger 28-75mm T2.9 Cine Zoom Lens (PL/EF)
- EF Mount Bayonet
- Shim Set

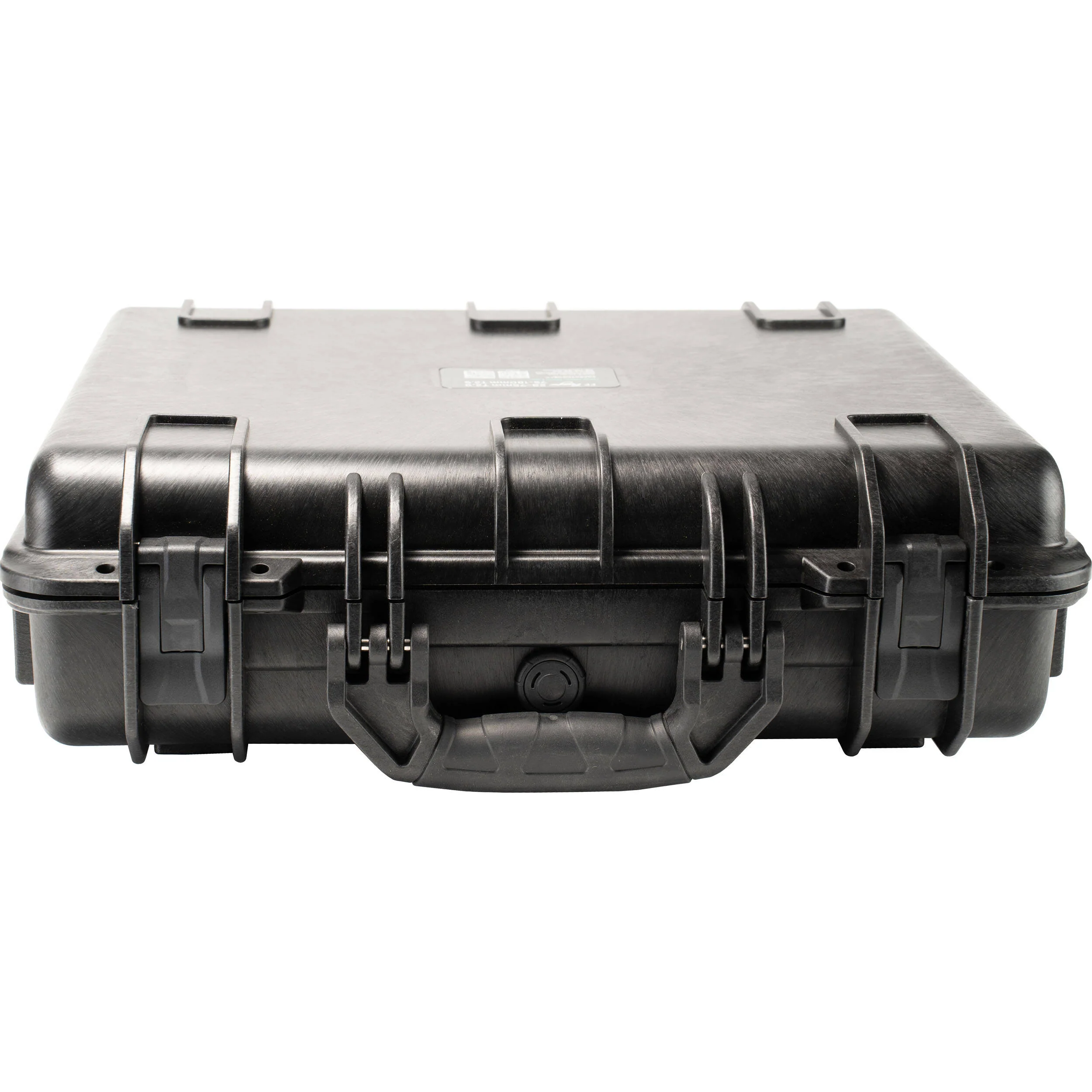

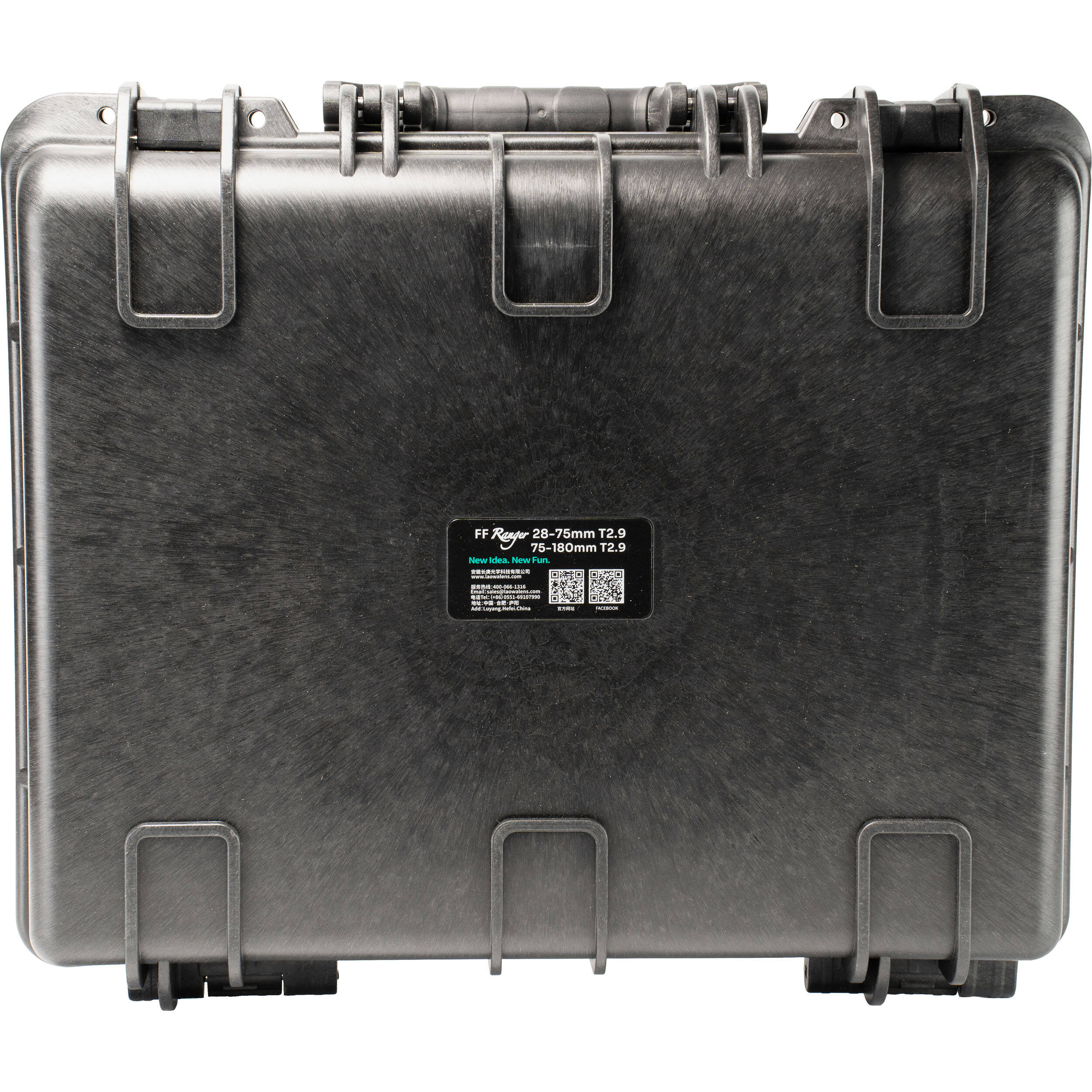

- Hard Case
- Limited 3-Year Manufacturer Warranty
- Venus Optics Laowa Ranger 75-180mm T2.9 Cine Zoom Lens (PL/EF)
- EF Mount Bayonet
- Shim Set
- Hard Case
- Limited 3-Year Manufacturer Warranty
Venus Optics Laowa Ranger 28-75mm T2.9 Cine Zoom Lens (PL/EF) Specs
| Focal Length |
28 to 75mm
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
43.2 mm
|
| Maximum Aperture |
T2.9
|
| Minimum Aperture |
T22
|
| Horizontal Angle of View |
Full Frame: 75.4 to 32.2°
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 19.3" / 49 cm
|
| Optical Design |
22 Elements in 18 Groups
|
| Diaphragm Blades |
11
|
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
| Gear Standard |
: 0.8 MOD
|
| Front Diameter |
80 mm
|
| Filter Thread |
77 mm
|
| Focus Scales |
Metric, Imperial
|
| Focus Rotation |
270°
|
| Iris Rotation |
42°
|
| Zoom Rotation |
100°
|
| Zoom Ratio |
2.7x
|
| Electronic Communication |
No
|
| Maximum Magnification Ratio |
1:0.23
|
| Image Stabilization |
No
|
| Lens Support |
Lens Support Foot
|
| Dimensions (W x H) |
3.1 x 7.1" / 80 x 179.3 mm
|
| Weight |
3.1 lb / 1.4 kg
|
| Package Weight |
8.705 lb
|
| Box Dimensions (LxWxH) |
14.3 x 13 x 6.6"
|
Venus Optics Laowa Ranger 75-180mm T2.9 Cine Zoom Lens (PL/EF) Specs
| Focal Length |
75 to 180mm
|
| Lens Mount |
ARRI PL
|
| Lens Format Coverage |
Full Frame
|
| Image Circle |
43.2 mm
|
| Maximum Aperture |
T2.9
|
| Minimum Aperture |
T22
|
| Horizontal Angle of View |
Full Frame: 32.2 to 13.7°
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 2.9' / 89 cm
|
| Optical Design |
14 Elements in 14 Groups
|
| Diaphragm Blades |
11
|
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
| Gear Standard |
: 0.8 MOD
|
| Front Diameter |
80 mm
|
| Filter Thread |
77 mm
|
| Focus Scales |
Metric, Imperial
|
| Focus Rotation |
270°
|
| Iris Rotation |
42°
|
| Zoom Rotation |
100°
|
| Zoom Ratio |
2.4x
|
| Electronic Communication |
No
|
| Maximum Magnification Ratio |
1:0.217
|
| Image Stabilization |
No
|
| Lens Support |
Lens Support Foot
|
| Dimensions (W x H) |
3.1 x 7.5" / 80 x 189.5 mm
|
| Weight |
3.1 lb / 1.4 kg
|
| Package Weight |
8.78 lb
|
| Box Dimensions (LxWxH) |
14.6 x 13.2 x 6.5"
|
