$43.87

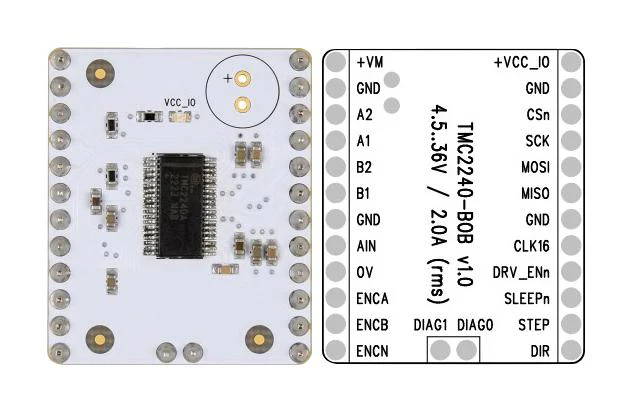

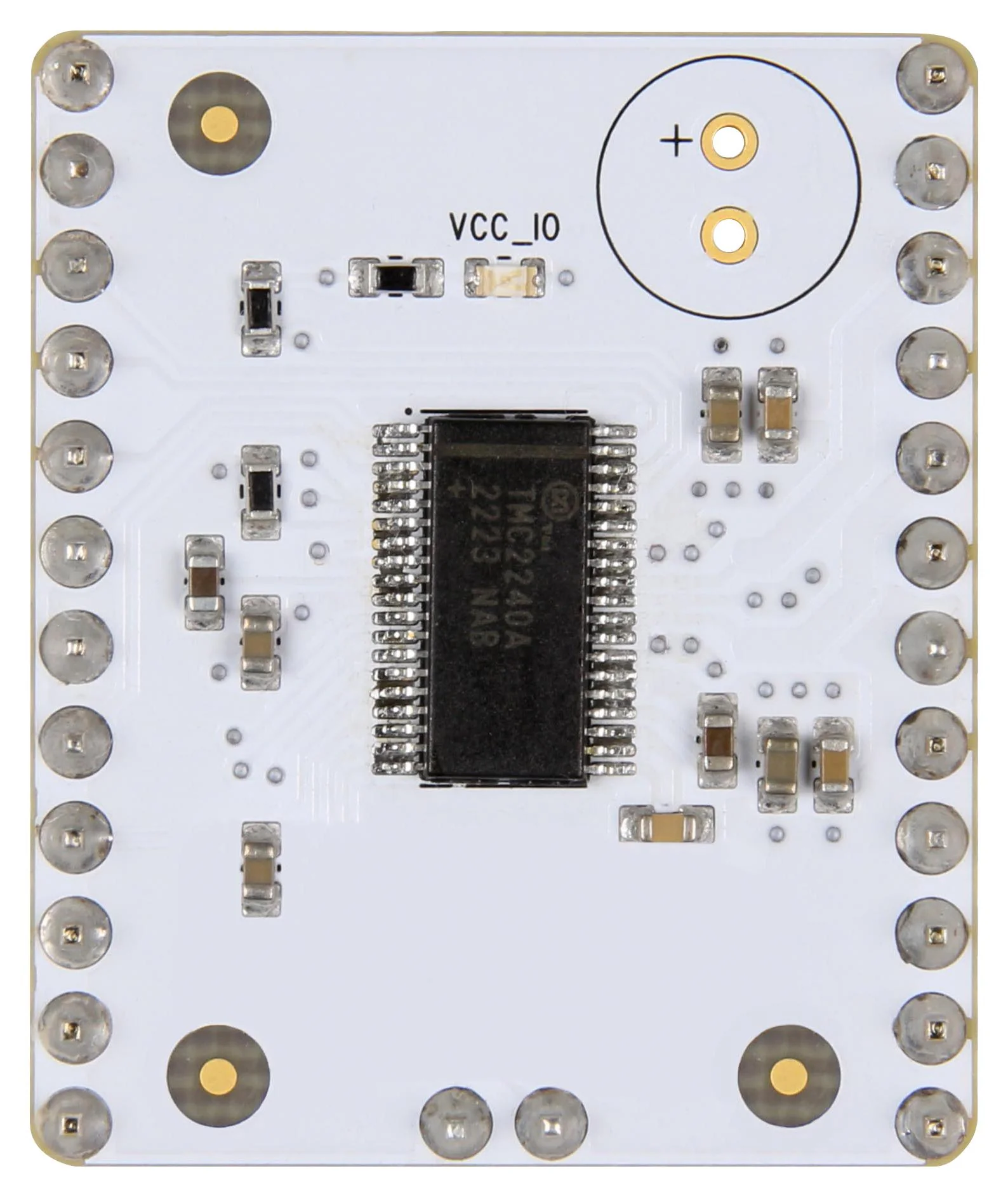

TRINAMIC / ANALOG DEVICES TMC2240-BOB Breakout Board, TMC2240AUU+, Stepper Motor Driver—
$43.87
The Story
TMC2240-BOB is a TMC2240 breakout board, development board with the dedicated TMC2240AUU+ IC. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
- Supply voltage range from 4.5 to 36V
- Iphase up to 2ARMS
- Flexible wave table and phase shift
- StealthChop2� silent PWM mode
- StallGuard4� sensorless motor load detection
- Control via Step & Dir and SPI interface
- Board width is 25.4mm, board height is 30.48mm
- 2x12 pin 2.54mm header rows for pins/connectors
Product details
Other details
| Brand | TRINAMIC / ANALOG DEVICES |
| Part Number | TMC2240-BOB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
TMC2240-BOB is a TMC2240 breakout board, development board with the dedicated TMC2240AUU+ IC. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
- Supply voltage range from 4.5 to 36V
- Iphase up to 2ARMS
- Flexible wave table and phase shift
- StealthChop2� silent PWM mode
- StallGuard4� sensorless motor load detection
- Control via Step & Dir and SPI interface
- Board width is 25.4mm, board height is 30.48mm
- 2x12 pin 2.54mm header rows for pins/connectors
Product details
Other details
| Brand | TRINAMIC / ANALOG DEVICES |
| Part Number | TMC2240-BOB |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
