Original: $238.20
-70%$238.20
$71.46The Story
- Industrial Power Supply
- Integrated DIN-Rail Mount
- Provides up to 120 Watts of Power
- Built-In Active PFC
- Short Circuit/Overload Protection
- Over Voltage/Over Temp Protection
- High Efficiency Design
- UL 508 Approved
- 100% Full Load Burn-In Test
- Extreme Operating Temperature Range

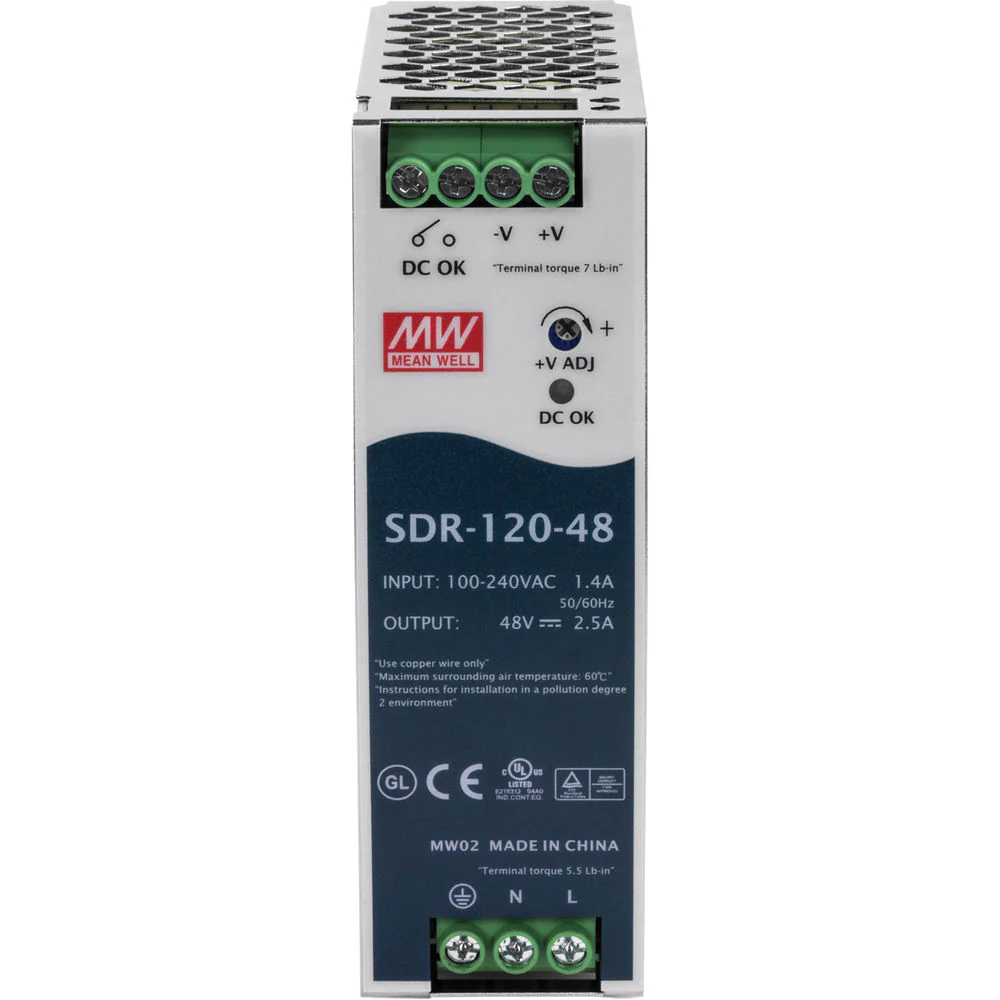

Designed to withstand extreme temperatures from -13 to 158°F, the 120-Watt Single-Output Industrial DIN-Rail Power Supply from TRENDnet can be installed in some of the harshest conditions. This power supply features a durable metal casing, a DIN-rail mount, and built-in LED indicators to confirm the unit is powered on. This unit also comes with short-circuit, overload, over-voltage, and over-temperature protection, as well as shutdown and re-power protection.
- 120 Watt Power
- Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
- Active PFC
- The built-in active Power Factor Controller (PFC, PF >0.93) helps eliminate unusable reactive power
- Overload Protection
- Overload/short circuit/over voltage/over temperature protection
- Full-Load Test
- This power supply undergoes a 100% full-load burn-in test
- Passive Cooling
- Cooling by free air convection

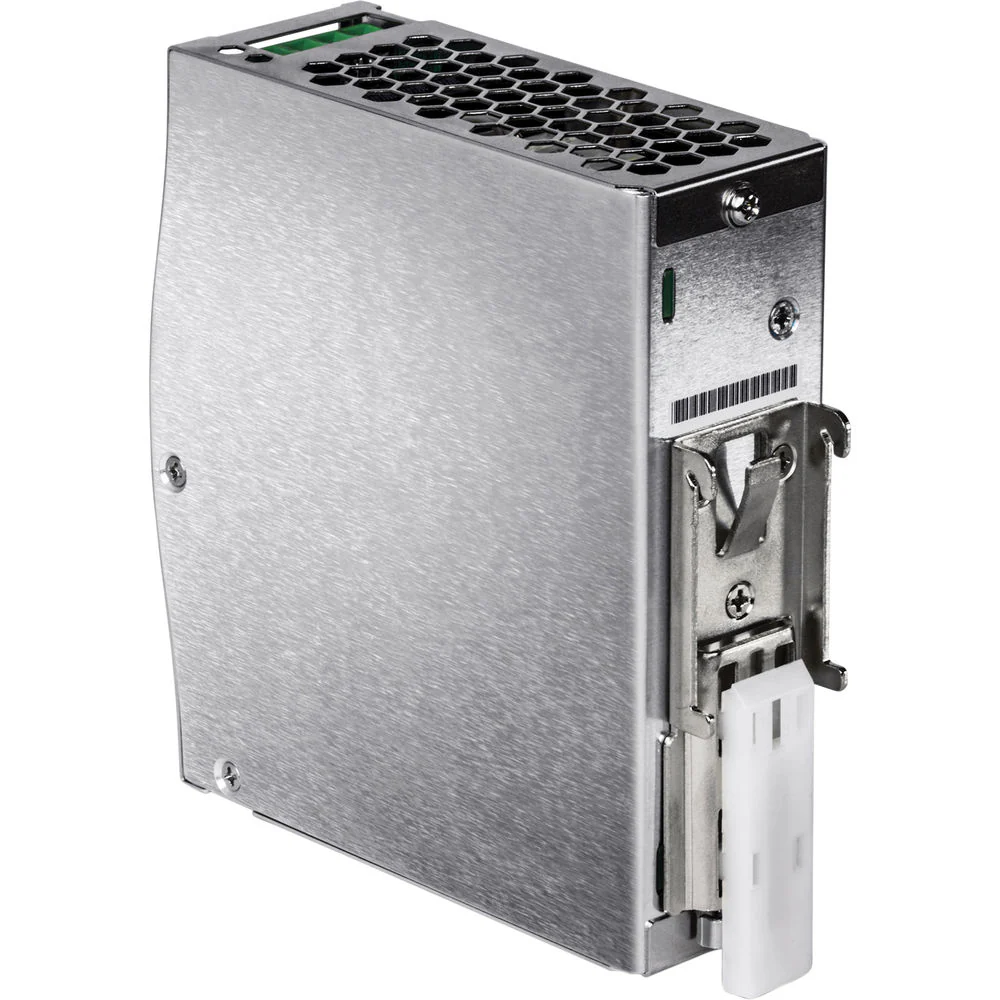

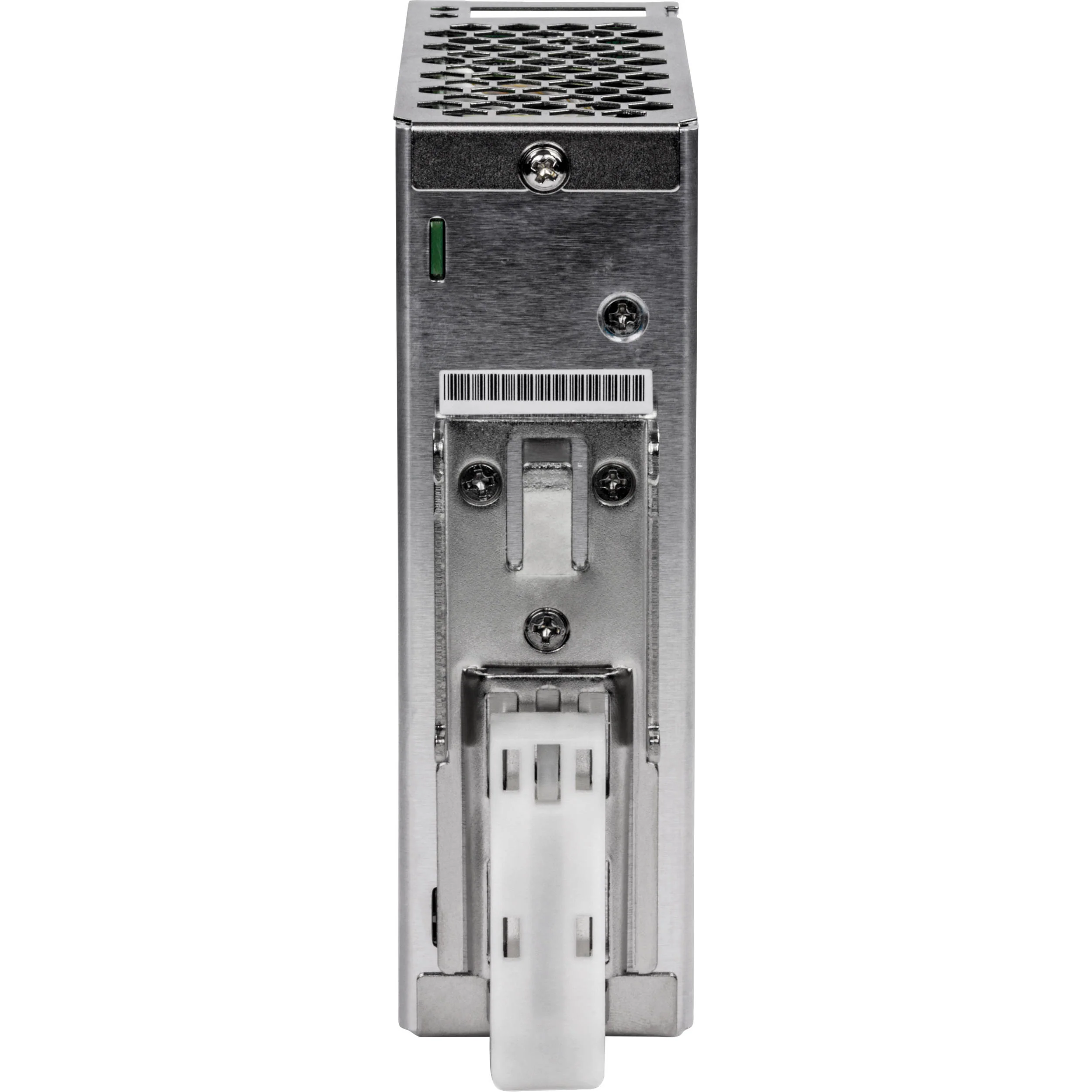

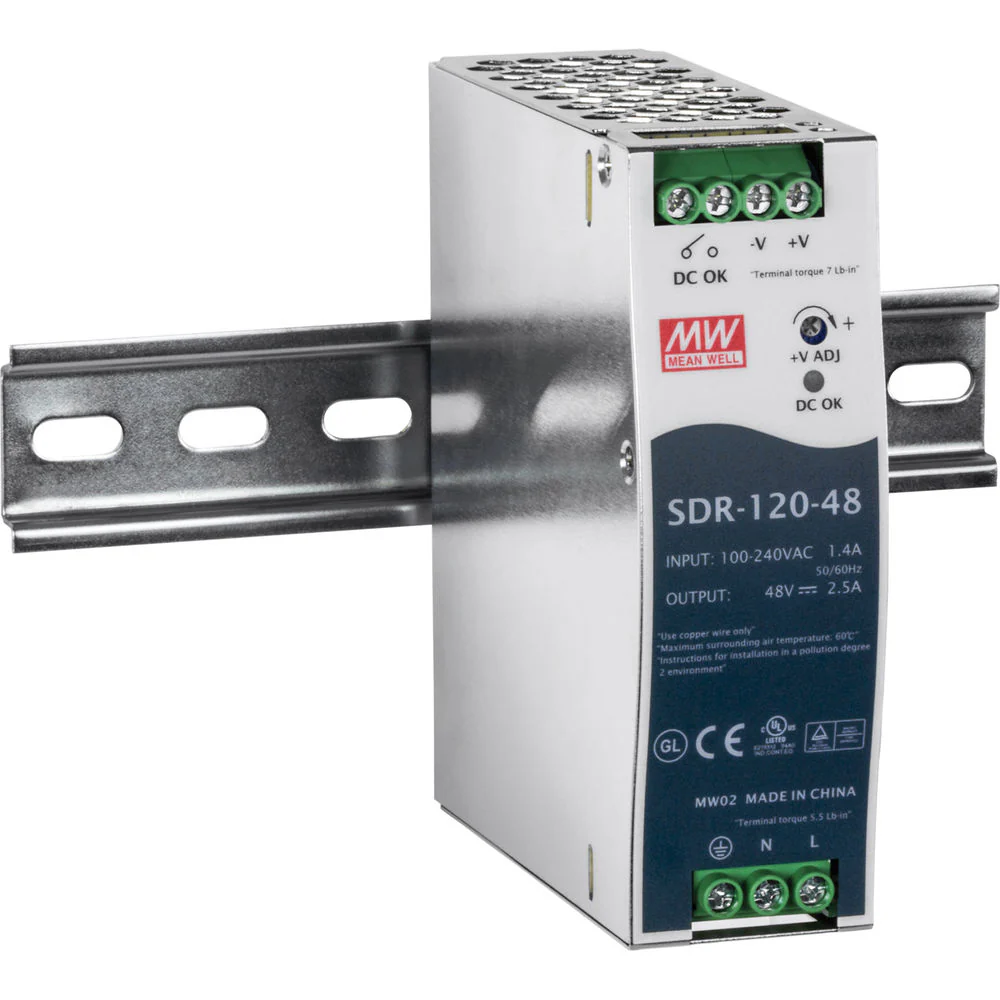

- DIN-Rail Mount
- Metal enclosure with integrated DIN-rail mount
- Extreme Temperature
- Rated for an operating temperature range of -13 to 158°F
- Electro Magnetic Emission / Immunity
- Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
- Vibration Resistant
- Rated for vibration (IEC 60068-2-6)
- LED Indicator
- LED indicator confirms power to the unit
- Additional Features
- � DC OK relay contact
� 150% peak load capacity
� Short circuit/overload/over voltage/over temperature protection
� Protection Type: shut down and repower
� High efficiency (91%) design
- Limited 1-Year Warranty
| Interface | Input: 100-240 VAC, 50/60 Hz, 1.8 A 125-370 VDC Output: 120 Watts, 48 V, 2.5 A DIN-rail: TS-35/7.5 or 15 |
| Housing | Metal case DIN-rail mount LED indicator confirms power to the unit |
| Temperature & Humidity | Operating Temperature -13 to 158°F / -25 to 70°C Operating Humidity Max. 95% non-condensing |
| MTBF | 2,899,000 hours |
| Certifications | CE, UL 508CB 60950-1, TUV EN60950-1 |
| Dimensions | 1.6 x 4.9 x 4.5" / 40 x 125 x 114 mm |
| Weight | 23.6 oz / 670 g |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Industrial Power Supply
- Integrated DIN-Rail Mount
- Provides up to 120 Watts of Power
- Built-In Active PFC
- Short Circuit/Overload Protection
- Over Voltage/Over Temp Protection
- High Efficiency Design
- UL 508 Approved
- 100% Full Load Burn-In Test
- Extreme Operating Temperature Range
Designed to withstand extreme temperatures from -13 to 158°F, the 120-Watt Single-Output Industrial DIN-Rail Power Supply from TRENDnet can be installed in some of the harshest conditions. This power supply features a durable metal casing, a DIN-rail mount, and built-in LED indicators to confirm the unit is powered on. This unit also comes with short-circuit, overload, over-voltage, and over-temperature protection, as well as shutdown and re-power protection.
- 120 Watt Power
- Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
- Active PFC
- The built-in active Power Factor Controller (PFC, PF >0.93) helps eliminate unusable reactive power
- Overload Protection
- Overload/short circuit/over voltage/over temperature protection
- Full-Load Test
- This power supply undergoes a 100% full-load burn-in test
- Passive Cooling
- Cooling by free air convection
- DIN-Rail Mount
- Metal enclosure with integrated DIN-rail mount
- Extreme Temperature
- Rated for an operating temperature range of -13 to 158°F
- Electro Magnetic Emission / Immunity
- Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
- Vibration Resistant
- Rated for vibration (IEC 60068-2-6)
- LED Indicator
- LED indicator confirms power to the unit
- Additional Features
- � DC OK relay contact
� 150% peak load capacity
� Short circuit/overload/over voltage/over temperature protection
� Protection Type: shut down and repower
� High efficiency (91%) design
- Limited 1-Year Warranty
| Interface | Input: 100-240 VAC, 50/60 Hz, 1.8 A 125-370 VDC Output: 120 Watts, 48 V, 2.5 A DIN-rail: TS-35/7.5 or 15 |
| Housing | Metal case DIN-rail mount LED indicator confirms power to the unit |
| Temperature & Humidity | Operating Temperature -13 to 158°F / -25 to 70°C Operating Humidity Max. 95% non-condensing |
| MTBF | 2,899,000 hours |
| Certifications | CE, UL 508CB 60950-1, TUV EN60950-1 |
| Dimensions | 1.6 x 4.9 x 4.5" / 40 x 125 x 114 mm |
| Weight | 23.6 oz / 670 g |
