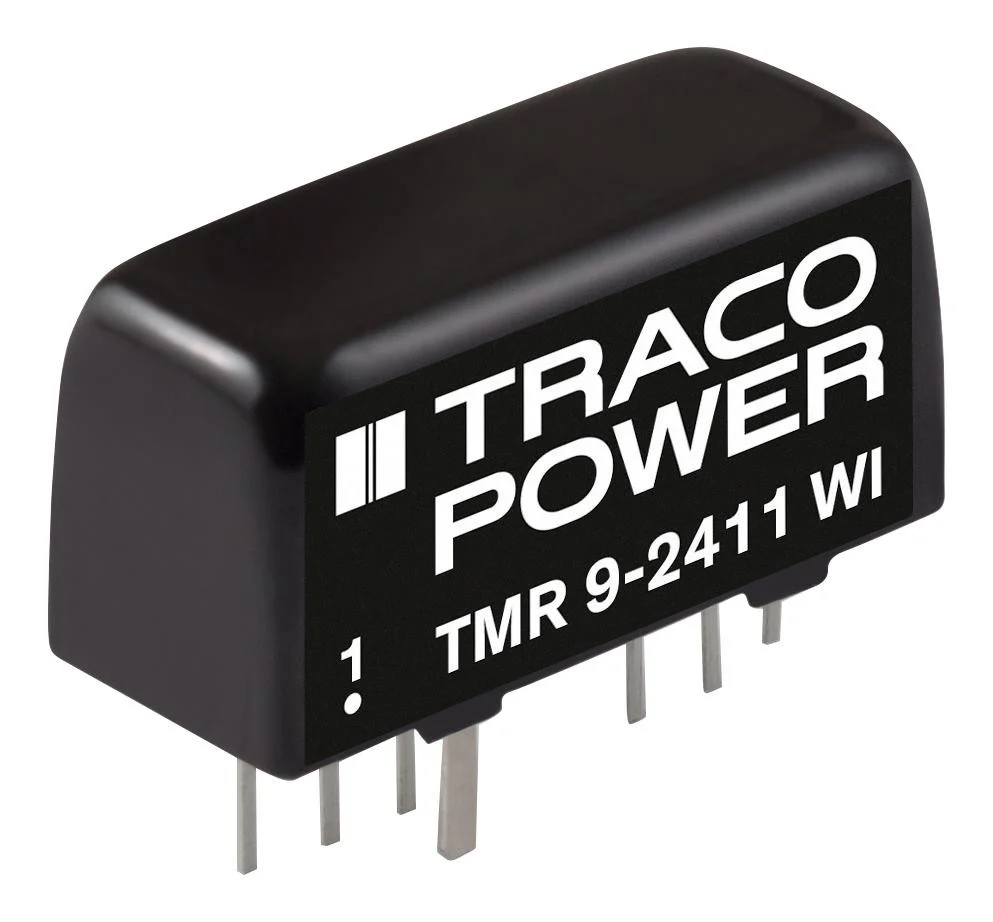

TRACOPOWER TMR 9-2411WI Isolated Board Mount DC/DC Converter, 1 Output, 9 W, 5 V, 1.6 A

This is a Isolated Board Mount DC/DC Converter, 1 Output, 9 W, 5 V, 1.6 A product from TRACOPOWER with the model number TMR 9-2411WI

Product details

Output Power Max	9W
Input Voltage DC Min	9V
DC / DC Converter Mounting	Through Hole
Output Voltage - Output 2	-
Output Current - Output 2	-
Depth	21.8mm
Width	9.6mm
Product Range	TMR 9WI Series
DC / DC Converter Type	SIP
Approvals & Standards	IEC, UL
Output Voltage - Output 3	-
Output Voltage - Output 1	5V
Output Current - Output 3	-
No. of Outputs	1 Output
DC / DC Converter Output Type	Fixed
Input Voltage DC Max	36V
Output Current - Output 1	1.6A
Height	11.2mm

Other details

Brand	TRACOPOWER
Part Number	TMR 9-2411WI
Quantity	Each
Technical Data Sheet EN
