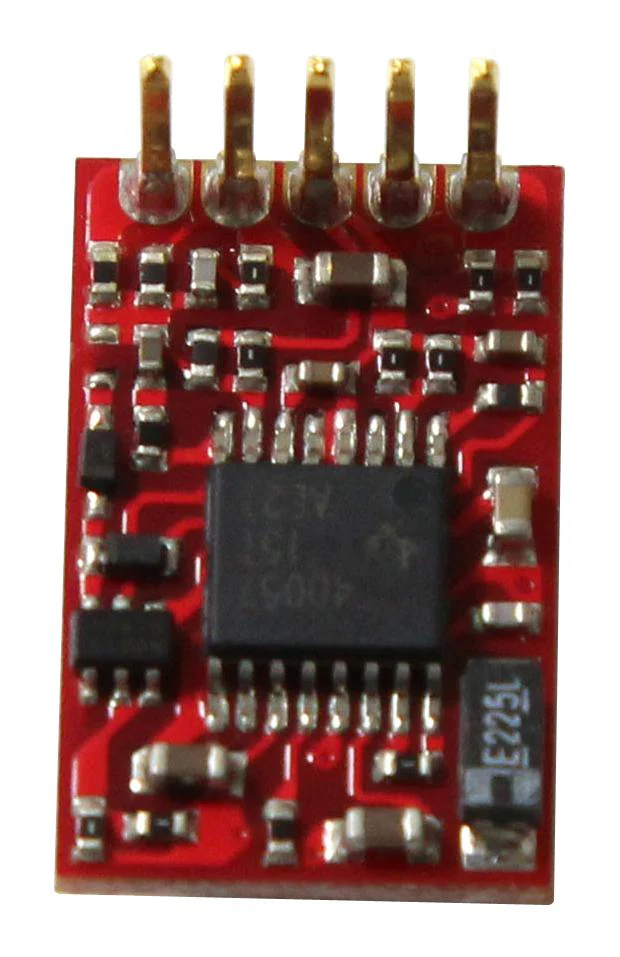

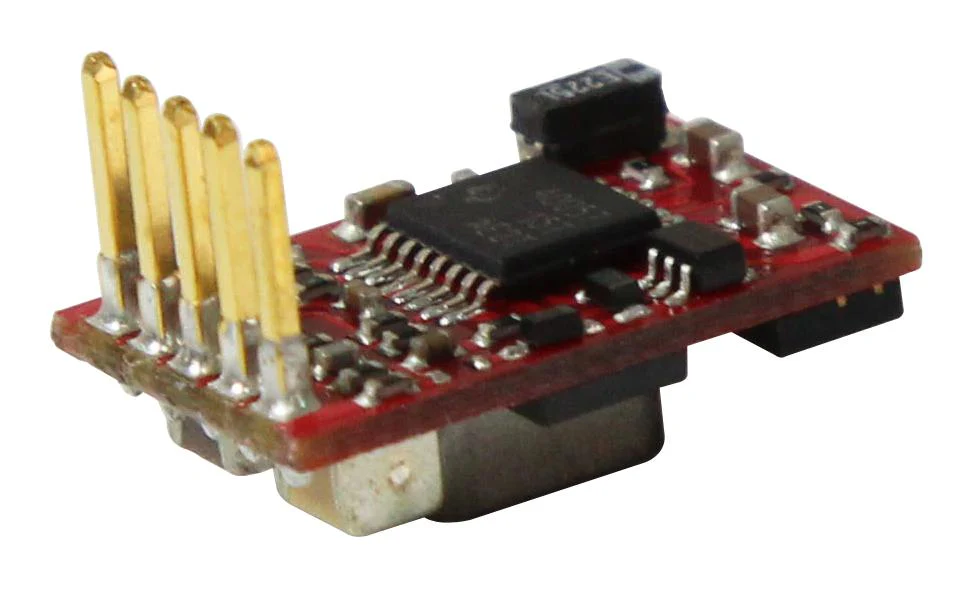

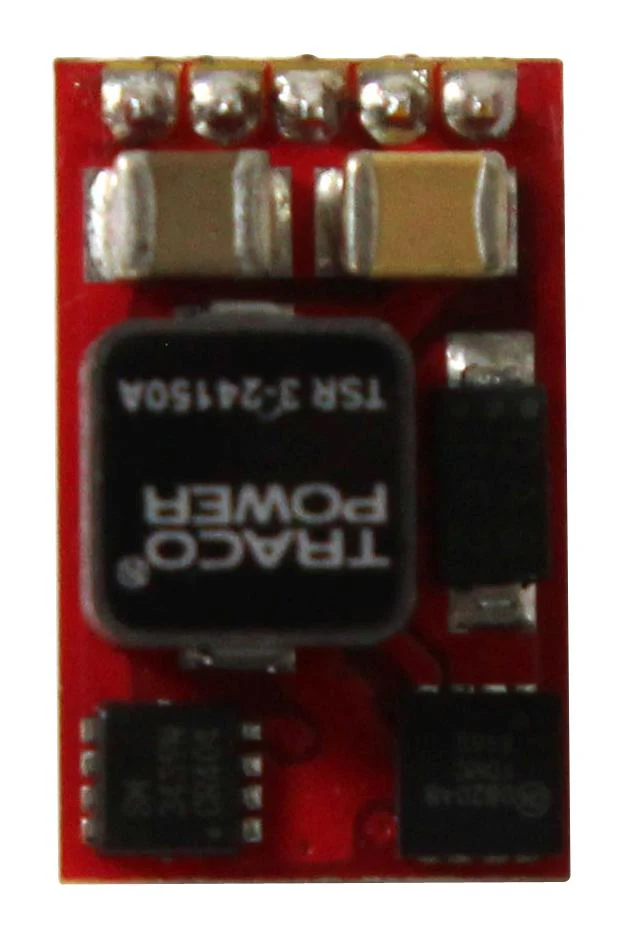

TRACO POWER TSR 3-24150A Non Isolated POL DC/DC Converter, ITE, SIP, 45 W, 5 V, 15 V, 3 A

TSR 3 models are non-isolated step down switching regulators. They can also be operated with negative output voltage. They come in a very compact open frame package of 15.5 x 9.4 x 6.2mm. The high efficiency admits a full load operation up to 50°C and up to 85°C with 50% current reduction. A low standby current, a very wider input range and no requirement for heatsink give these switching regulators a significant advantage over linear regulators. Together with a remote on/off input and protection against short circuit the TSR 3 series models are ideal point of load regulators for high reliable and energy critical applications.

• High performance 3A switching regulator
• Suitable for positive and negative output circuit
• Adjustable output voltages
• Continuous, automatic recovery short circuit protection
• Low output ripple and noise
• 3-year product warranty
• Natural convection (20 LFM) cooling system
• Switching frequency of 270 to 330KHz
• Copper pin material, THD (through-hole device) connection type
• Models with angular pins
