-70%TRACO POWER TMR 6-2415WI Isolated Through Hole DC/DC Converter, ITE, 4:1, 6 W, 1 Output, 24 V, 250 mA—
$36.15
$10.84The Story
The TMR 6-2415WI is a 1-output board-mount isolated DC to DC Converter with regulated output voltage and wide 4:1 input voltage range. The TMR-6WI series 6W isolated DC/DC converter comes with a small footprint and excellent efficiency. The very compact dimensions of this converter make it an ideal solution for many space critical applications.
- Highest power density
- Full SMD design
- High efficiency up to 88%
- Indefinite short-circuit protection
- 1500VDC I/O Isolation
- Remote on/off control
- -40 to +71°C Operating temperature range
Applications
Power Management, Communications & Networking, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: ITE |
| Input Ratio: 4:1 |
| Output Power Max: 6W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 24V |
| Output Current - Output 1: 250mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Regulated |
| Isolation Voltage: 1.6kV |
| DC / DC Converter Type: SIP |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |

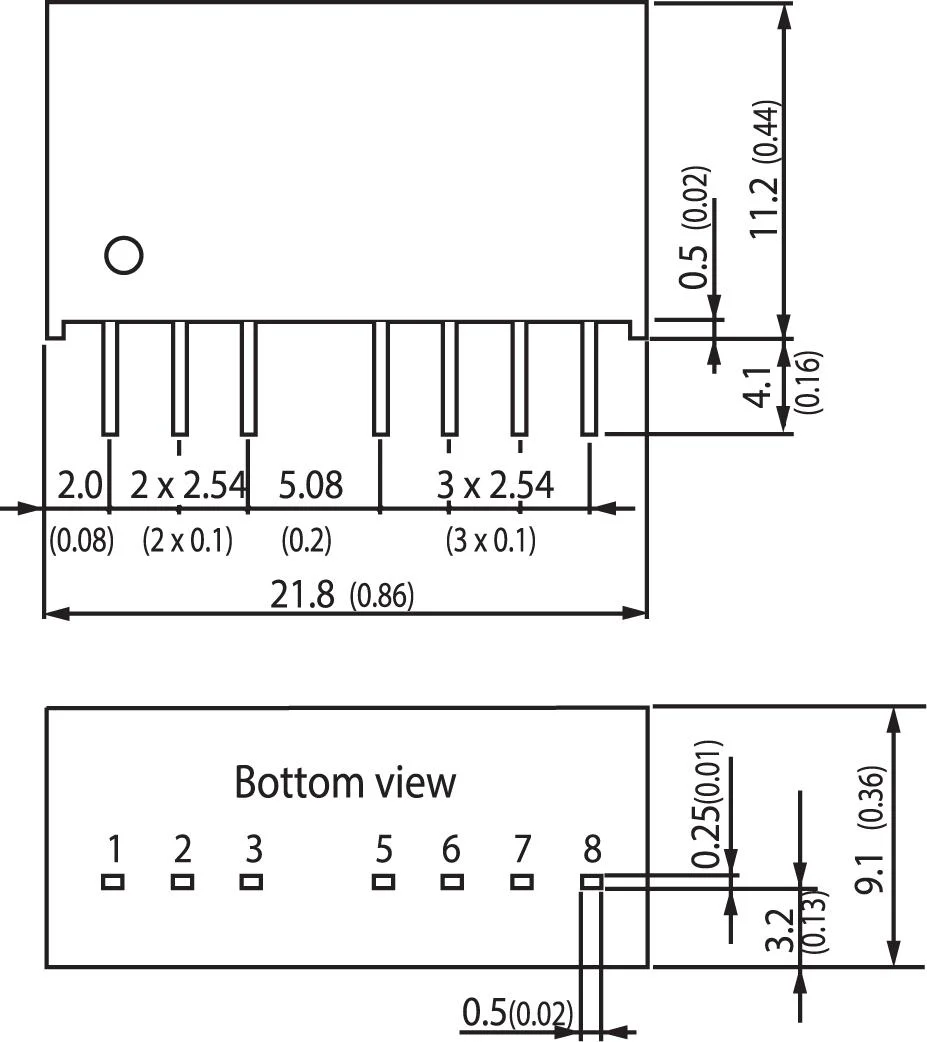

| Width: 9.1mm |
| Height: 11.2mm |
| Depth: 21.8mm |
| Input Voltage DC Min: 9V |
| Input Voltage DC Max: 36V |
| Product Range: TMR 6WI Series |
Other details
| Brand | TRACO POWER |
| Part Number | TMR 6-2415WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
