Traco Power TMR 6-2411WI Isolated Through Hole DC/DC Converter ITE 4:1 6 W 1 Output 5 V 1.2 A
HomeStore

Traco Power TMR 6-2411WI Isolated Through Hole DC/DC Converter ITE 4:1 6 W 1 Output 5 V 1.2 A

Traco Power TMR 6-2411WI Isolated Through Hole DC/DC Converter ITE 4:1 6 W 1 Output 5 V 1.2 A

$11.47

Original: $38.24

-70%
Traco Power TMR 6-2411WI Isolated Through Hole DC/DC Converter ITE 4:1 6 W 1 Output 5 V 1.2 A—

$38.24

$11.47

The Story

The TMR 6-2411WI is an isolated 6W DC-DC Converter Module with regulated output, featuring wide 4:1 input voltage ranges. It offers 9 to 36VDC input voltage range and 5VDC output voltage. An excellent efficiency allows -40 to 71°C operation temperatures. Further features include remote ON/OFF control and continuous short circuit protection. The very compact dimensions of this converter make it an ideal solution for many space critical applications.
  • Full SMD design
  • Indefinite short-circuit protection
  • 1500VDC I/O isolation
  • 84% Typical efficiency
  • 24VDC Nominal input voltage
Applications

Communications & Networking, Sensing & Instrumentation, Consumer Electronics

Other details

Brand TRACO POWER
Part Number TMR 6-2411WI
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
CAD Multiple Formats EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

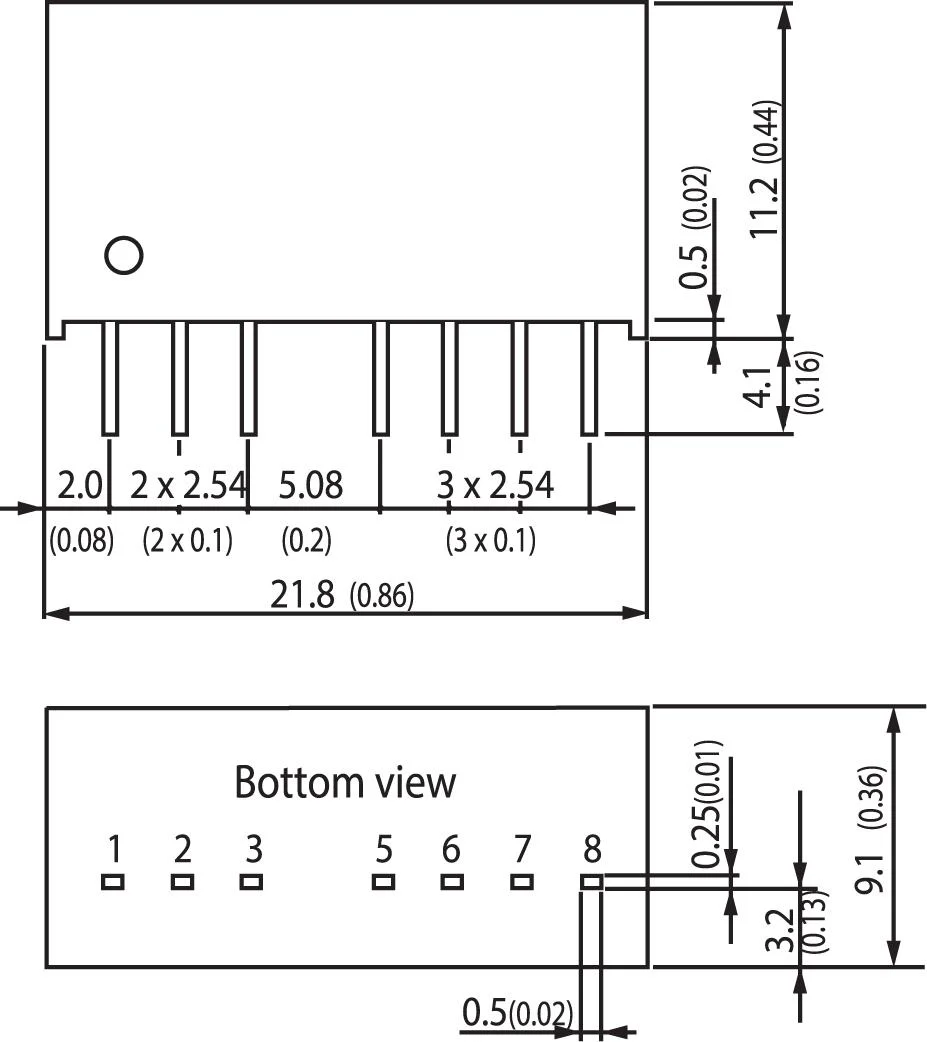

Traco Power TMR 6-2411WI Isolated Through Hole DC/DC Converter ITE 4:1 6 W 1 Output 5 V 1.2 A - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The TMR 6-2411WI is an isolated 6W DC-DC Converter Module with regulated output, featuring wide 4:1 input voltage ranges. It offers 9 to 36VDC input voltage range and 5VDC output voltage. An excellent efficiency allows -40 to 71°C operation temperatures. Further features include remote ON/OFF control and continuous short circuit protection. The very compact dimensions of this converter make it an ideal solution for many space critical applications.
  • Full SMD design
  • Indefinite short-circuit protection
  • 1500VDC I/O isolation
  • 84% Typical efficiency
  • 24VDC Nominal input voltage
Applications

Communications & Networking, Sensing & Instrumentation, Consumer Electronics

Other details

Brand TRACO POWER
Part Number TMR 6-2411WI
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
CAD Multiple Formats EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
