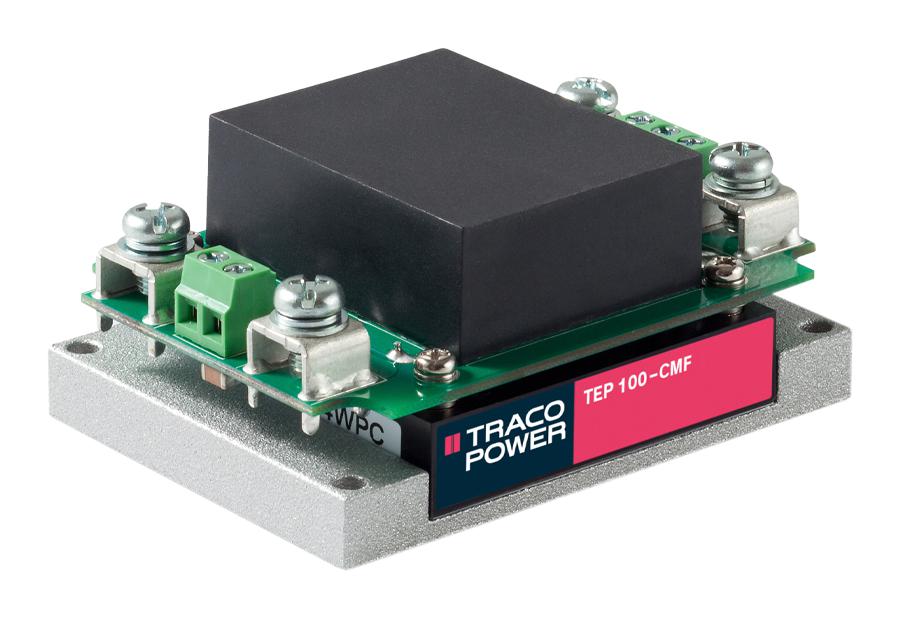

-70%TRACO POWER TEP 100-2412-CMF Isolated Chassis Mount DC/DC Converter, ITE, 2:1, 100 W, 1 Output, 12 V, 8.4 A—
$343.87
$103.16The Story
TEP 100CMF series is a family of isolated high performance DC/DC converter modules. These converters are suitable for a wide range of applications, but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or attachment of a heatsink for optimal thermal management very simple. For easy connection there is also an unique adaptor available with screw terminals. A very high efficiency allows an operating temperature up to +60°C with natural convection cooling without power derating. Further features include output voltage trimming, remote on/off and undervoltage lockout. The very wide input voltage range and reverse input voltage protection make these converters also an interesting solution for battery operated systems.
- Ultra wide 2:1 input voltage range
- Input protection filter
- 3-year product warranty
- Continuous, automatic recovery short circuit protection
- EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
- Switching frequency of 270 to 330KHz (PWM), 300KHz typically (PWM)
- Rugged sealed metal case and non-conductive FR4 (UL94 V-0 rated) base material
Product details
| Power Supply Applications: ITE |
| Input Ratio: 2:1 |
| Output Power Max: 100W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 12V |
| Output Current - Output 1: 8.4A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: - |
| Isolation Voltage: 2.25kV |
| DC / DC Converter Type: Module |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |
| Width: 61mm |
| Height: 40.5mm |
| Depth: 85mm |
| Input Voltage DC Min: 18V |
| Input Voltage DC Max: 36V |
| Product Range: TEP 100CMF Series |
Other details
| Brand | TRACO POWER |
| Part Number | TEP 100-2412-CMF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
