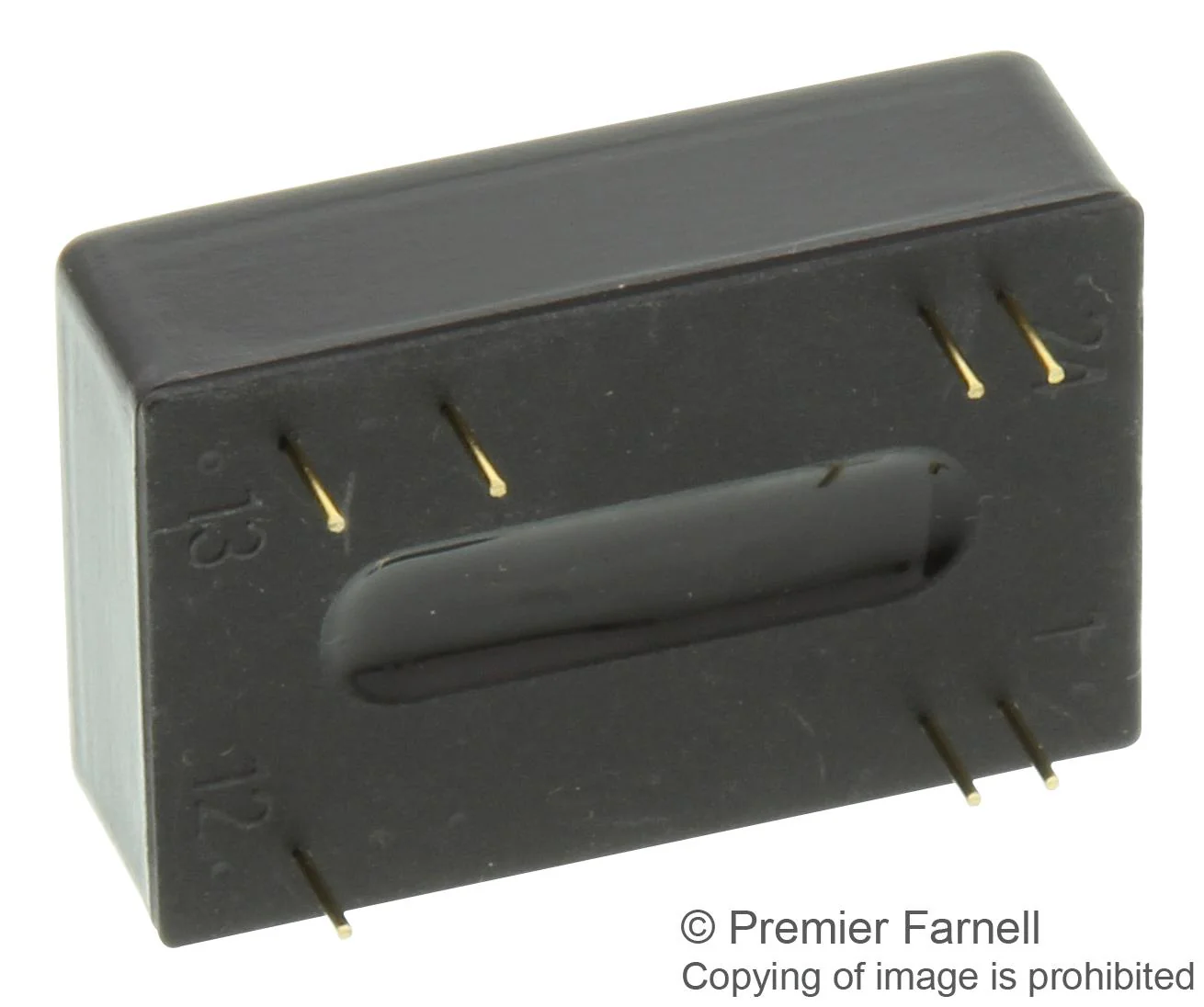

Traco Power TEN 5-4822WI TEN 5-4822WI Isolated Through Hole DC/DC Converter ITE 4:1 5 W 2 Output 12 V 250 mA

The TEN 5-4822WI is a 2-output 5W board-mount isolated high performance DC/DC Converter featuring 18 to 75VDC input voltage range and ±12VDC output voltage. A high efficiency allows -40 to 70°C operation ambient temperatures at full load. This converter is suitable for use with the applications where a wide input voltage range is required.

• Full SMD design
• Excellent load and line regulation
• Indefinite short-circuit protection
• Ultra wide 4:1 input range
• 1500VDC I/O isolation
• 83% Typical efficiency
• 48VDC Nominal input voltage

Applications

Power Management, Industrial, Communications & Networking, Sensing & Instrumentation

Footnotes NRND - Not Recommended for New Designs

Other details

Brand	TRACO POWER
Part Number	TEN 5-4822WI
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
Miscellaneous EN
