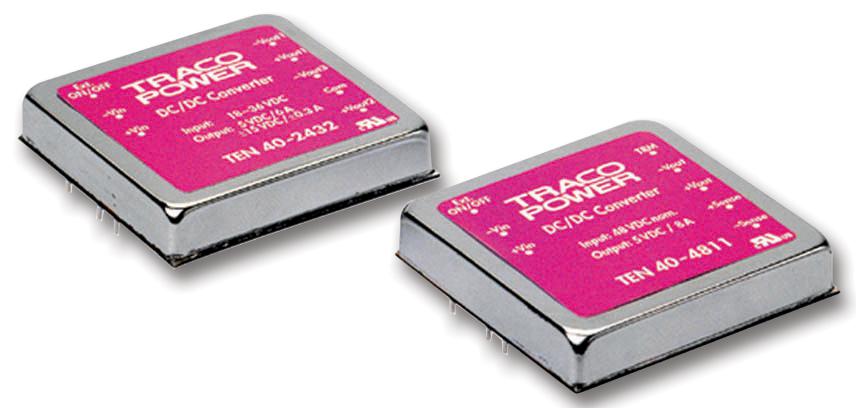

-70%Traco Power TEN 40-2411 TEN 40-2411 Isolated Through Hole DC/DC Converter ITE 2:1 40 W 1 Output 5 V 8 A—
$135.49
$40.65The Story
The TEN 40-2411 is a high performance 40W DC-DC Converter Module featuring wide 2:1 input voltage range of 18 to 36VDC in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of -40 to 75°C. Built-in filters for both input and output minimize the need for external filtering. Further standard features include remote 5VDC/8A output, remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in battery operated equipment and many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.
- Shielded metal case with insulated base plate
- 89% Typical efficiency
- 24VDC Nominal input voltage
Communications & Networking, Consumer Electronics, Power Management
Other details
| Brand | TRACO POWER |
| Part Number | TEN 40-2411 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Miscellaneous EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The TEN 40-2411 is a high performance 40W DC-DC Converter Module featuring wide 2:1 input voltage range of 18 to 36VDC in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of -40 to 75°C. Built-in filters for both input and output minimize the need for external filtering. Further standard features include remote 5VDC/8A output, remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in battery operated equipment and many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.
- Shielded metal case with insulated base plate
- 89% Typical efficiency
- 24VDC Nominal input voltage
Communications & Networking, Consumer Electronics, Power Management
