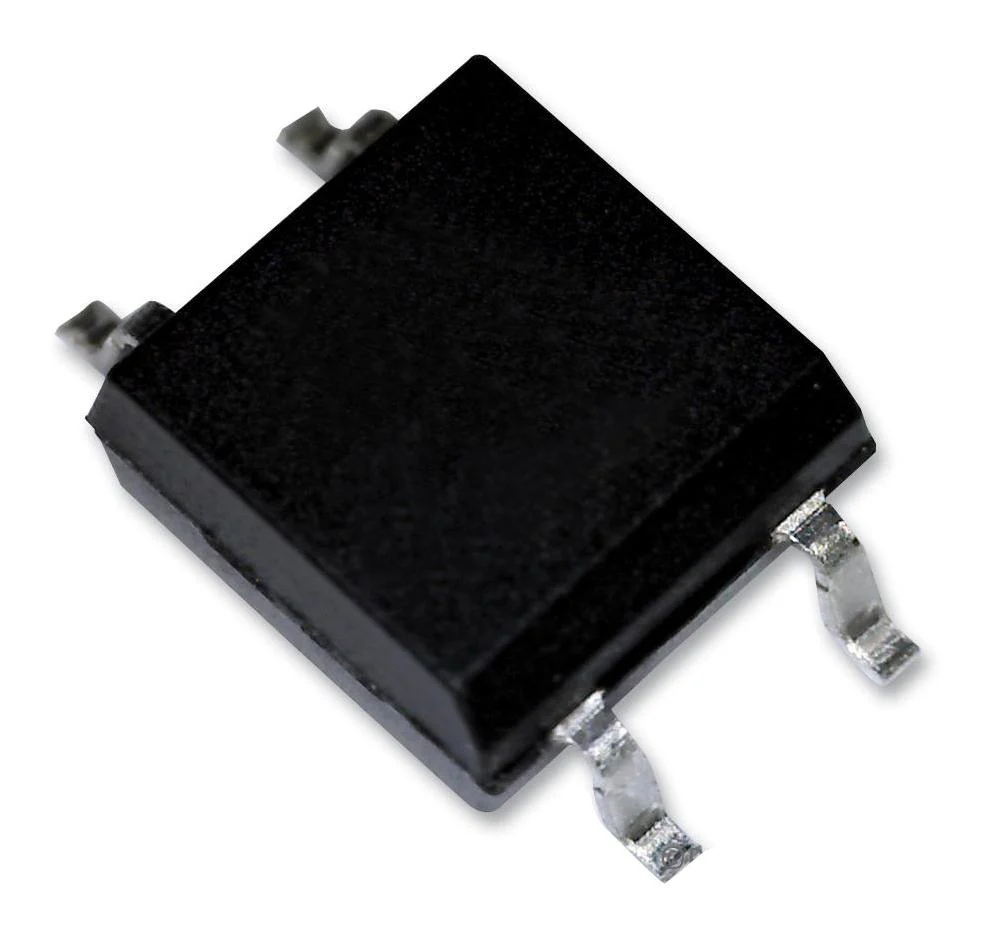

-70%TOSHIBA TLP170AM(TPL,E(T MOSFET Relay, SPST-NO (1 Form A), AC / DC, 60 V, 700 mA, SOP-4, Surface Mount TLP170AM, TLP170AM(TPL,E(O—
$1.71
$0.51The Story
TLP170AM(TPL,E(T is a photo relay. It consists of an infrared LED coupled to a photo-MOSFET. This photo relay has higher output current rating than phototransistor-type photocoupler; hence, it is suitable for use as On/Off control for high current. It is approved by UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349, VDE-approved: EN 60747-5-5. It is used in applications such as security systems, factory automation (FA), measuring instruments, I/O interface boards, programmable logic controllers (PLCs), mechanical relay replacements.
- Halogen-free, normally opened (1-Form-A)
- OFF-state output terminal voltage is 60V minimum
- Trigger LED current is 1mA maximum
- ON-state current is 700mA maximum
- ON-state resistance is 0.3 ohm maximum
- Isolation voltage is 3750Vrms minimum
- Operating temperature range from -40°C to 85°C
- 4-pin SO6 package
Product details
| Contact Form: SPST-NO (1 Form A) |
| Load Type: AC / DC |
| Load Voltage Max: 60V |
| Load Current: 700mA |
| MOSFET Relay Package Style: SOP-4 |
| Relay Mounting: Surface Mount |
| Relay Terminals: Gull Wing |
| On State Resistance Max: 0.3ohm |
| Isolation Voltage: 3.75kV |
| I/O Capacitance Typ: 0.8pF |
| Off State Leakage Current Max: 1µA |
| Product Range: - |
Other details
| Brand | TOSHIBA |
| Part Number | TLP170AM(TPL,E(T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
