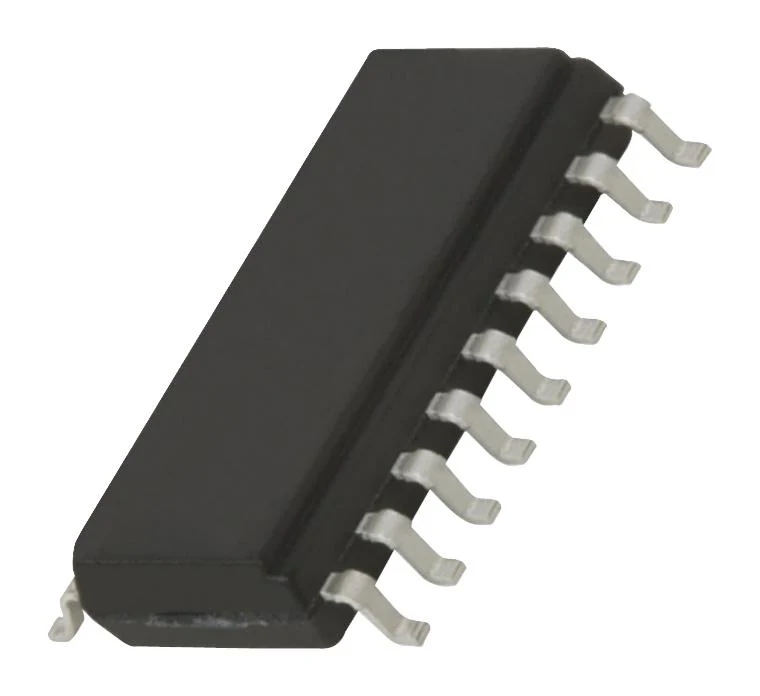

-70%TOSHIBA TBD62083AFNG(Z,EL) Peripheral Driver, 50 V /0.5 A out, 8 Outputs, SSOP, -40 °C to 85 °C TBD62083AFNG, TBD62083AFNG(Z—
$4.17
$1.25The Story
Product Overview
TBD62083AFNG(Z,EL) is a TBD62083A series BiCD silicon monolithic integrated circuit. It has a clamp diode for switching inductive loads built-in in each output.
- 8 channel sink type DMOS transistor array
- High voltage is 50V (max, Ta = 25°C), high current is 500mA/ch (max, Ta = 25°C)
- Input voltage range from 2.5 to 25V (output on, IOUT = 100mA or upper, VOUT = 2V,Ta = ?40 to 85 °C)
- COMMON pin voltage is 50V (max, Ta = -40 to 85°C)
- Clamp diode forward current is 400mA (max, Ta = -40 to 85°C)
- Output leakage current is 1.0?A (max, VOUT = 50V, Ta = 85°C, VIN = 0V)
- Turn on delay is 0.4?s (typ, VOUT = 50V, RL = 125ohm, CL = 15pF)
- Turn off delay is 0.8?s (typ, VOUT = 50V, RL = 125ohm, CL = 15pF)
- SSOP18-P-225-0.65 package, operating temperature range from -40 to 85°C
Notes
Please be careful about thermal conditions during use.
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TBD62083AFNG(Z,EL) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
