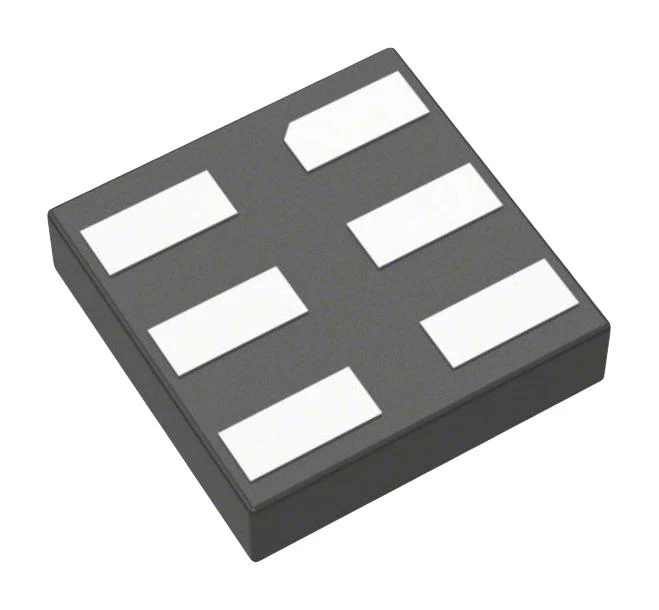

TOREX XC9291B13E0R-G DC-DC Converter, Buck, Fixed, 2.5 to 6V in, 1.3V Out, 600mA Out, WLP-5-08

XC9291B13E0R-G is an XC9291 series HiSAT-COT ® control extremely small 600mA step-down DC/DC converter. A 0.6 x 0.3mm ceramic capacitor can be used for the input capacitance (CIN) and the output capacitance (CL), realizing that the mounting area including peripheral components can be reduced to 3.15mm². Due to increasing the oscillation frequency to a high frequency, the mounting area is reduced. Additionally, an efficiency equal to or higher than that of conventional products can be realized by improving on-resistance and current consumption. Because of these features, the XC9291 series is ideal for equipment requiring miniaturization and low-profile mounting area, and battery-powered equipment such as mobile equipment. Applications include smart phones / mobile phones, wireless earphones / headset, wearable devices, DSC / camcorder, portable game consoles, smartcard, power supply for modules, various small power sources.

• Input voltage range from 2.5V to 6.0V
• Quiescent current is 11?A typical at VOUT=4.0V
• Efficiency (fOSC=4MHz) is 90.0% (VIN=3.7V, VOUT=1.8V, IOUT=200mA)
• Ceramic input/output capacitor
• Operating ambient temperature range from -40°C to 105°C
• Oscillation frequency is 6.0MHz
• WLP-5-08 package
• Enable, UVLO, fixed soft-start time, CL discharge, current limit (automatic recovery) function
