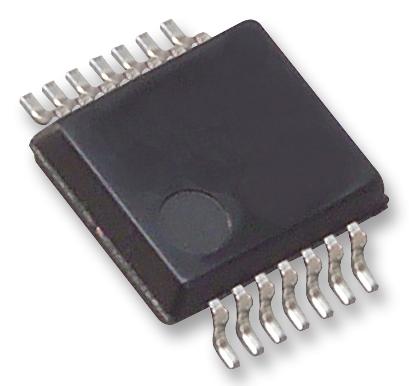

Texas Instruments TXB0104QPWRQ1 TXB0104QPWRQ1 Voltage Level Translator 4 Input 7 ns 1.2 V to 5.5 TSSOP-14—
$4.37
The Story
The TXB0104QPWRQ1 is a 4-bit Bidirectional Voltage Level Translator with auto direction sensing. It addresses the challenges posed by simultaneous use of different supply-voltage levels on the same circuit board. This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 to 5.5V. When the OE input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor, the minimum value of the resistor is determined by the current-sourcing capability of the driver. It is designed so that the OE input circuit is supplied by VCCA. This device is fully specified for partial-power-down applications using Ioff.
- OE Input circuit referenced to VCCA
- Ioff Supports partial-power-down mode operation
- Latch-up performance exceeds 100mA per JESD 78, class II
- Green product and no Sb/Br
Automotive, Communications & Networking
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TXB0104QPWRQ1 |
| Quantity | Each (Supplied on Cut Tape) |
