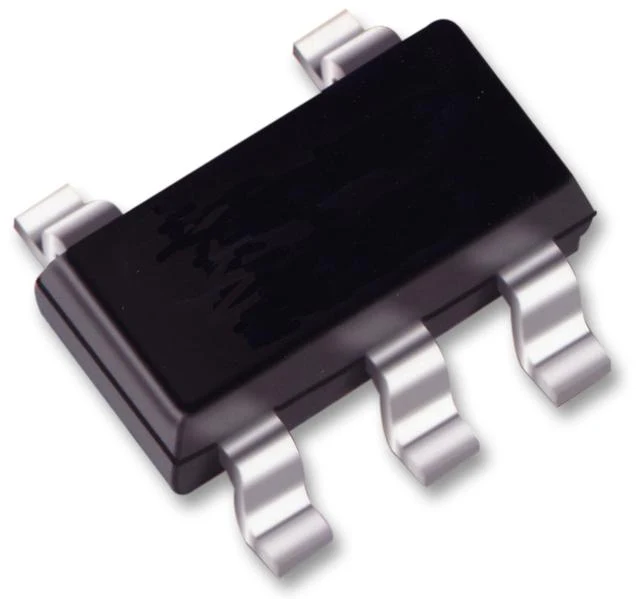

Texas Instruments SN74LVC1G17DBVT SN74LVC1G17DBVT Buffer 74LVC1G17 1.65 V to 5.5 SOT-23-5

The SN74LVC1G17DBVT is a single Schmitt-trigger Buffer designed for 1.65 to 5.5V VCC operation. This device contains one buffer and performs the Boolean function Y = A. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The device functions as an independent buffer, but because of Schmitt action, it will have different input threshold levels for a positive-going (VT+) and negative-going signals. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

• Allows down voltage translation
• IOFF Supports live insertion, partial-power-down mode and back drive protection
• Latch-up performance exceeds 100mA per JESD 78, class II
• Inputs accept voltages to 5.5V
• 4.6ns at 3.3V Propagation delay (tpd)
• 10µA ICC Low power consumption
• ±24mA Output drive at 3.3V
• Green product and no Sb/Br

Applications

Signal Processing, Audio, Portable Devices, Communications & Networking, Consumer Electronics, Computers & Computer Peripherals, Imaging, Video & Vision, Wireless, Motor Drive & Control

Other details

Brand	TEXAS INSTRUMENTS
Part Number	SN74LVC1G17DBVT
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN
