$3.62

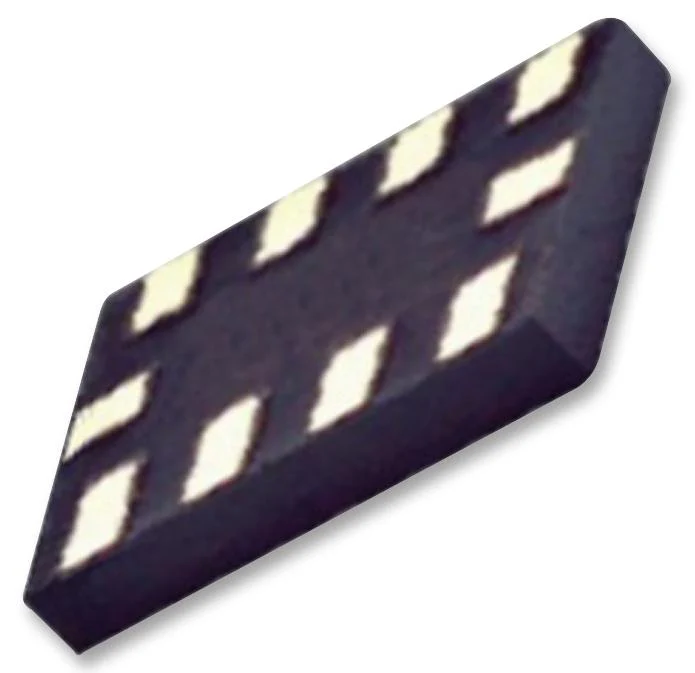

Texas Instruments SN74AVC2T245RSWR Transceiver Non Inverting AVC Family 2 Input 12 mA 2.4 ns 1.2 V to 3.6 LFCSP-10—
$3.62
The Story
The SN74AVC2T245RSWR is a 2-bit 2-DIR pin dual-supply Bus Transceiver with configurable voltage translation and 3-state output. It uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 to 3.6V. It is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the OE activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic high or low level applied to prevent excess ICC and ICCZ.
- Each channel has independent direction control
- Fully configurable dual-rail design
- I/Os are 4.6V tolerant
- Ioff Supports partial-power-down mode operation
- VCC Isolation feature - If either VCC input is at GND, both ports are in high-impedance state
- Latch-up performance exceeds 100mA per JESD78 class II
- Green product and no Sb/Br
Communications & Networking
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74AVC2T245RSWR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The SN74AVC2T245RSWR is a 2-bit 2-DIR pin dual-supply Bus Transceiver with configurable voltage translation and 3-state output. It uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 to 3.6V. It is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the OE activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic high or low level applied to prevent excess ICC and ICCZ.
- Each channel has independent direction control
- Fully configurable dual-rail design
- I/Os are 4.6V tolerant
- Ioff Supports partial-power-down mode operation
- VCC Isolation feature - If either VCC input is at GND, both ports are in high-impedance state
- Latch-up performance exceeds 100mA per JESD78 class II
- Green product and no Sb/Br
Communications & Networking
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74AVC2T245RSWR |
| Quantity | Each (Supplied on Cut Tape) |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
