$48.86

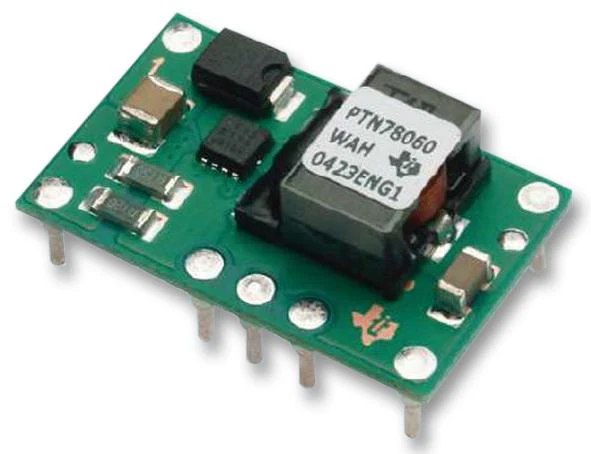

TEXAS INSTRUMENTS PTN78060WAH Non Isolated POL DC/DC Converter, 37.8 W, 2.5 V, 12.6 V, 3 A—
$48.86
The Story
The PTN78060WAH is a 37.8W Non-isolated Adjustable Switching Regulator with wide output voltage and wide input voltage range. The converter provides high efficiency and step-down voltage conversion as well the output voltage can be set to any value over a wide adjustment range using a single external resistor. It is well suited to a wide variety of general-purpose applications.
- High efficiency up to 96%
- On/off inhibit
- Under-voltage lockout (UVLO)
- Output current limit
- Over-temperature protection
- -40 to +85°C Operating temperature range
Applications
Power Management
Product details
| Output Power Max: 37.8W |
| Output Voltage Min: 2.5V |
| Output Voltage Max: 12.6V |
| Output Current Max: 3A |
| DC / DC Converter Output Type: - |
| DC / DC Converter Type: DIP |
| Input Voltage DC Min: 7V |
| Input Voltage DC Max: 36V |
| Height: 9mm |
| Depth: 25.27mm |
| Width: 15.75mm |
| Product Range: PTN78060 Series |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | PTN78060WAH |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
