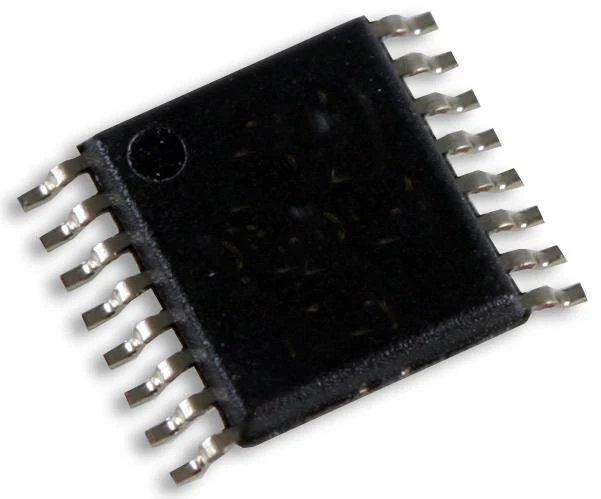

-70%Texas Instruments MAX3232CPWR Transceiver RS232 2 Drivers 3V-5.5V Supply TSSOP-16—
$4.30
$1.29The Story
The MAX3232CPWR is a Multichannel RS-232 Line Driver/Receiver, dual charge-pump circuit with ±15kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3 to 5.5V supply. The devices operate at data signalling rates up to 250kbps and a maximum of 30V/µs driver output slew rate.
- RS-232 bus terminal ESD protection exceeds ±15kV using human-body model (HBM)
- Meets or exceeds requirements of TIA/EIA-232-F and ITU V.28 standards
- Operates up to 250kbps
- Two drivers and two receivers
- 300µA Typical low supply current
- 4 x 0.1µF External capacitors
- Accepts 5V logic input with 3.3V supply
- Green product and no Sb/Br
Power Management, Portable Devices, Computers & Computer Peripherals
Warnings Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | MAX3232CPWR |
| Quantity | Each (Supplied on Cut Tape) |
| Product Change Notice EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
