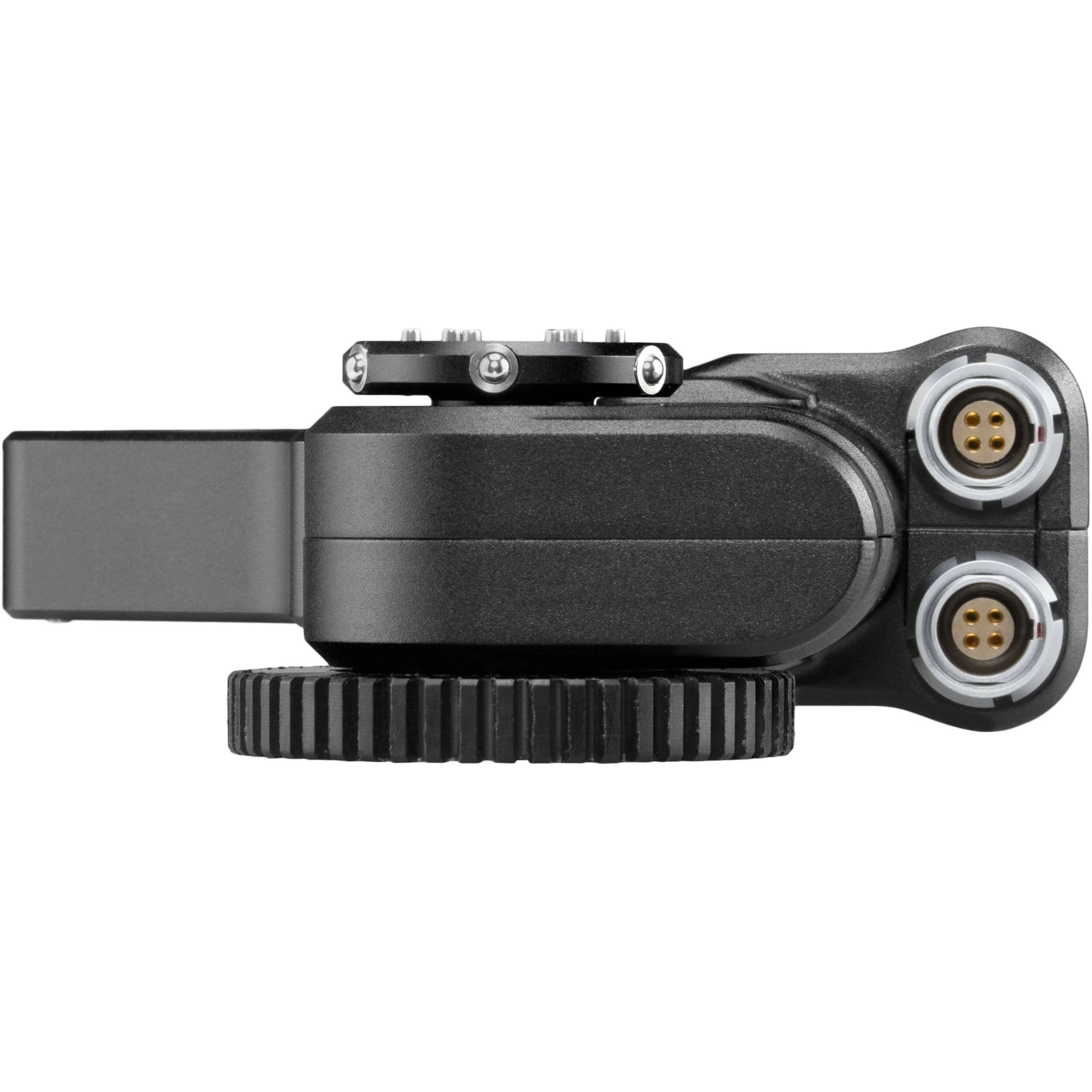

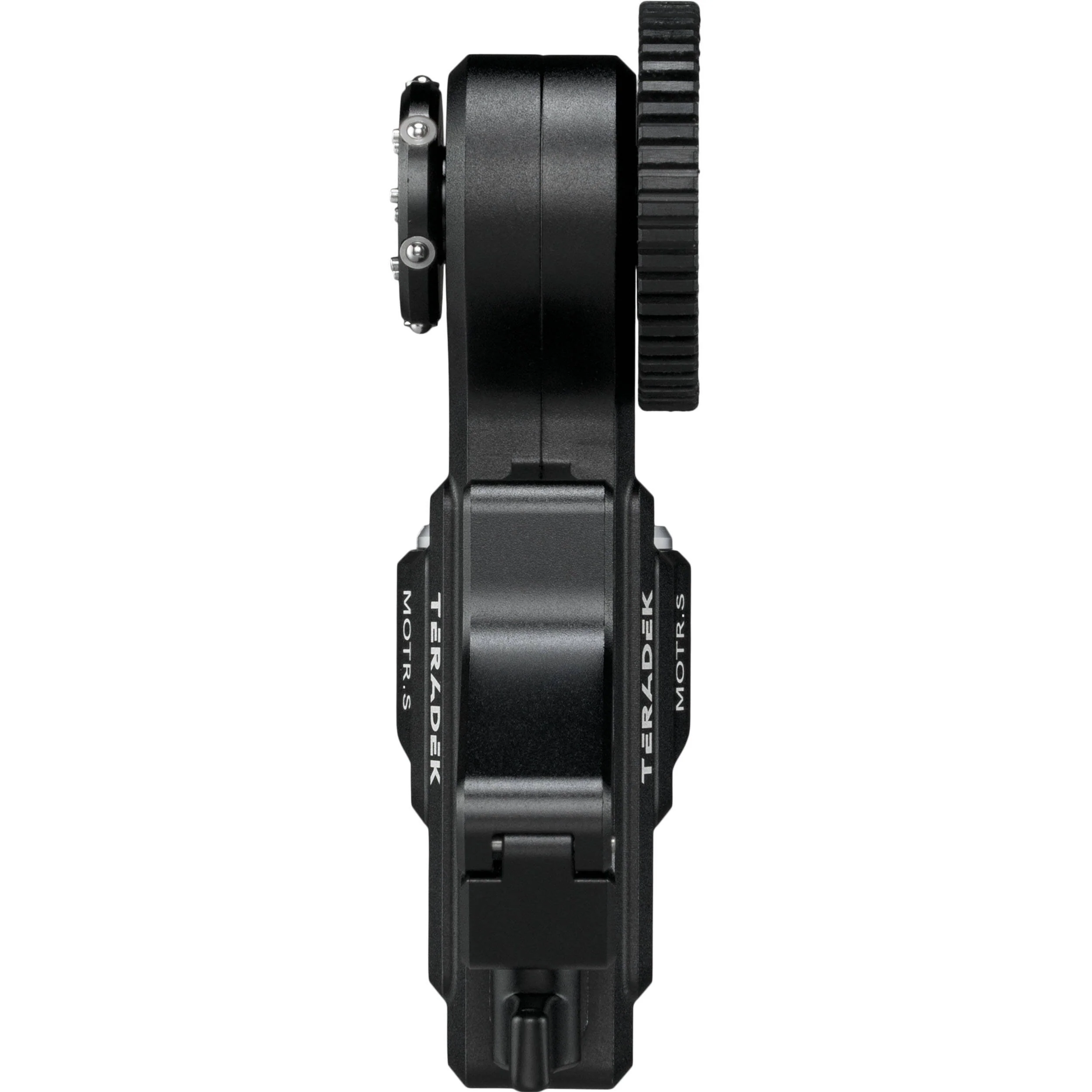

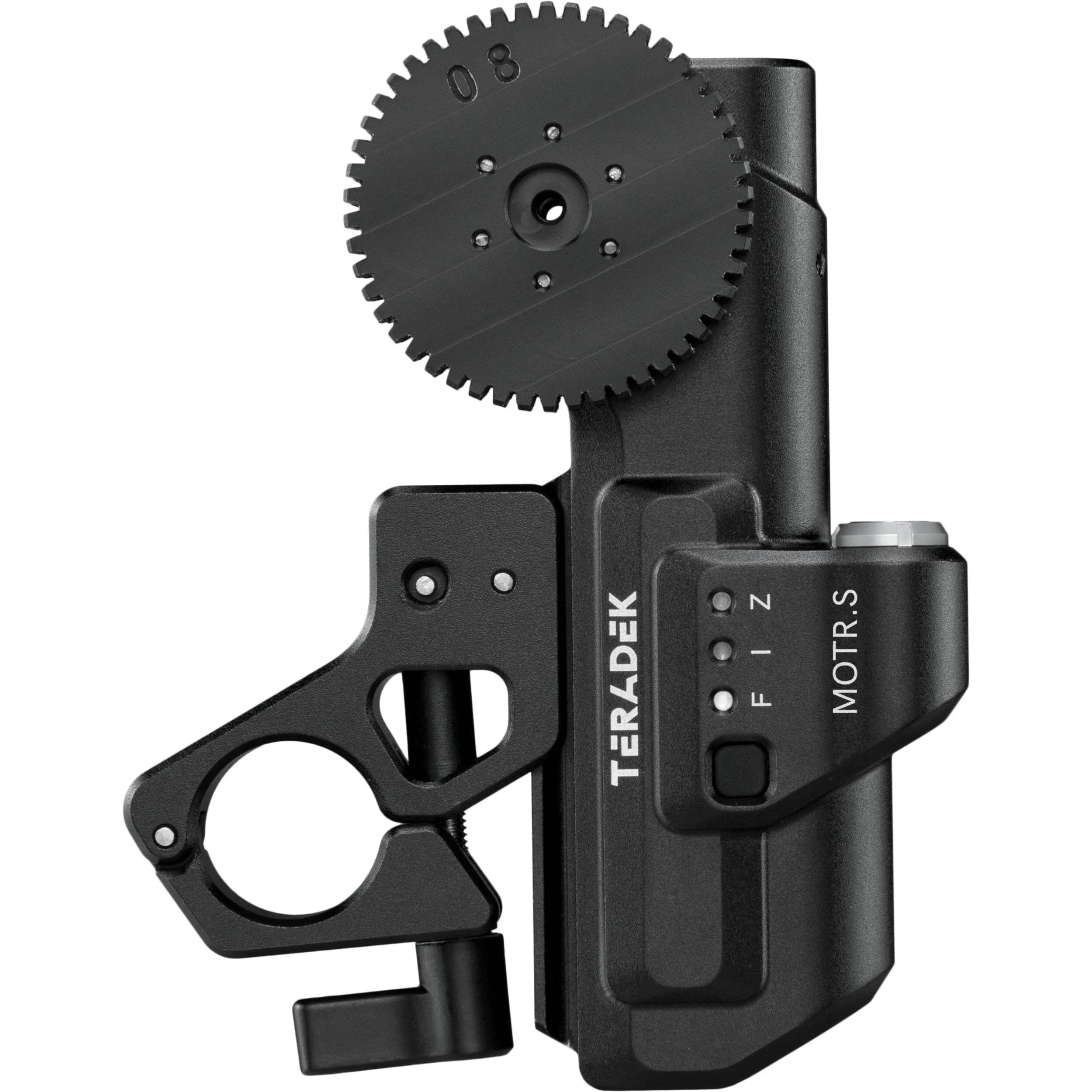

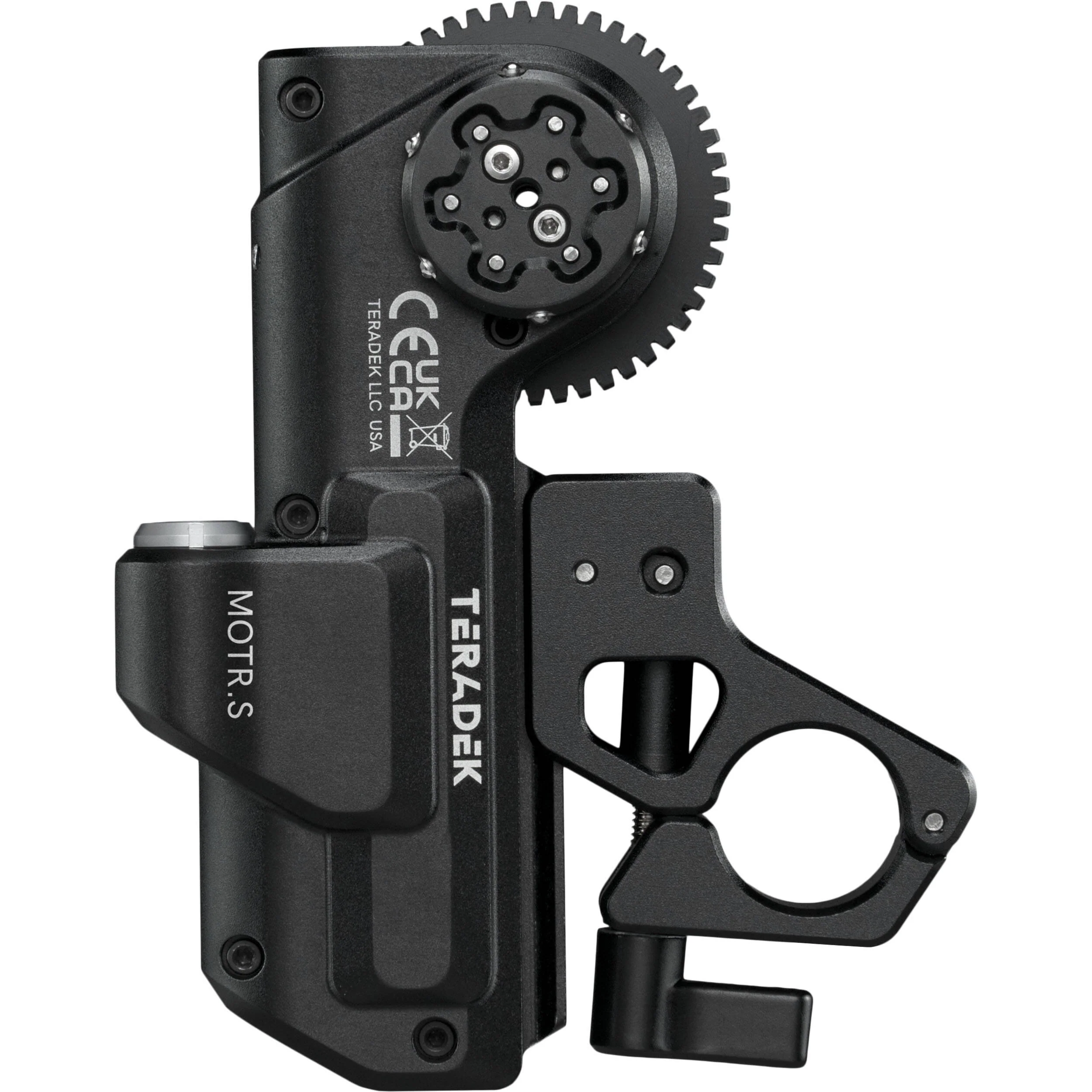

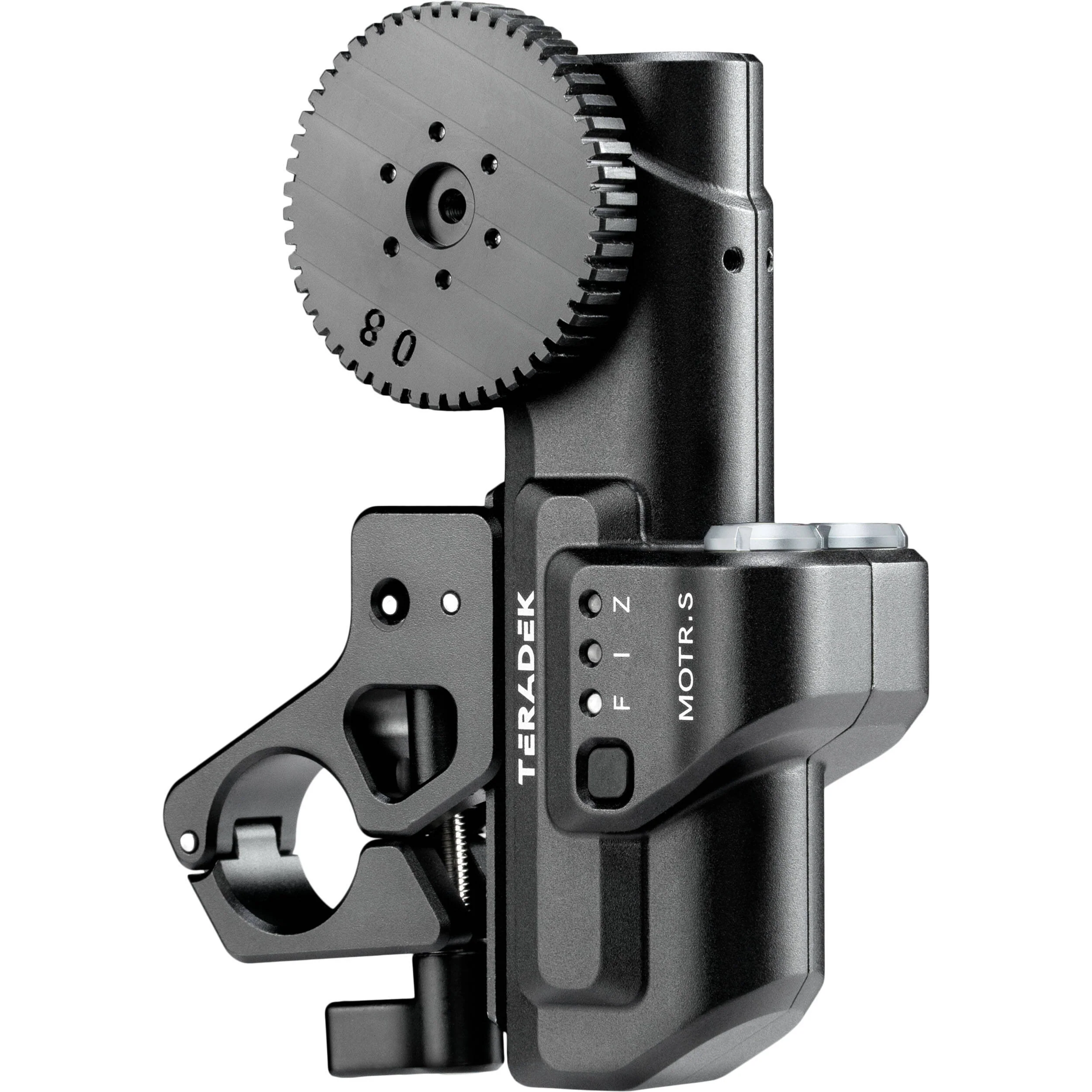

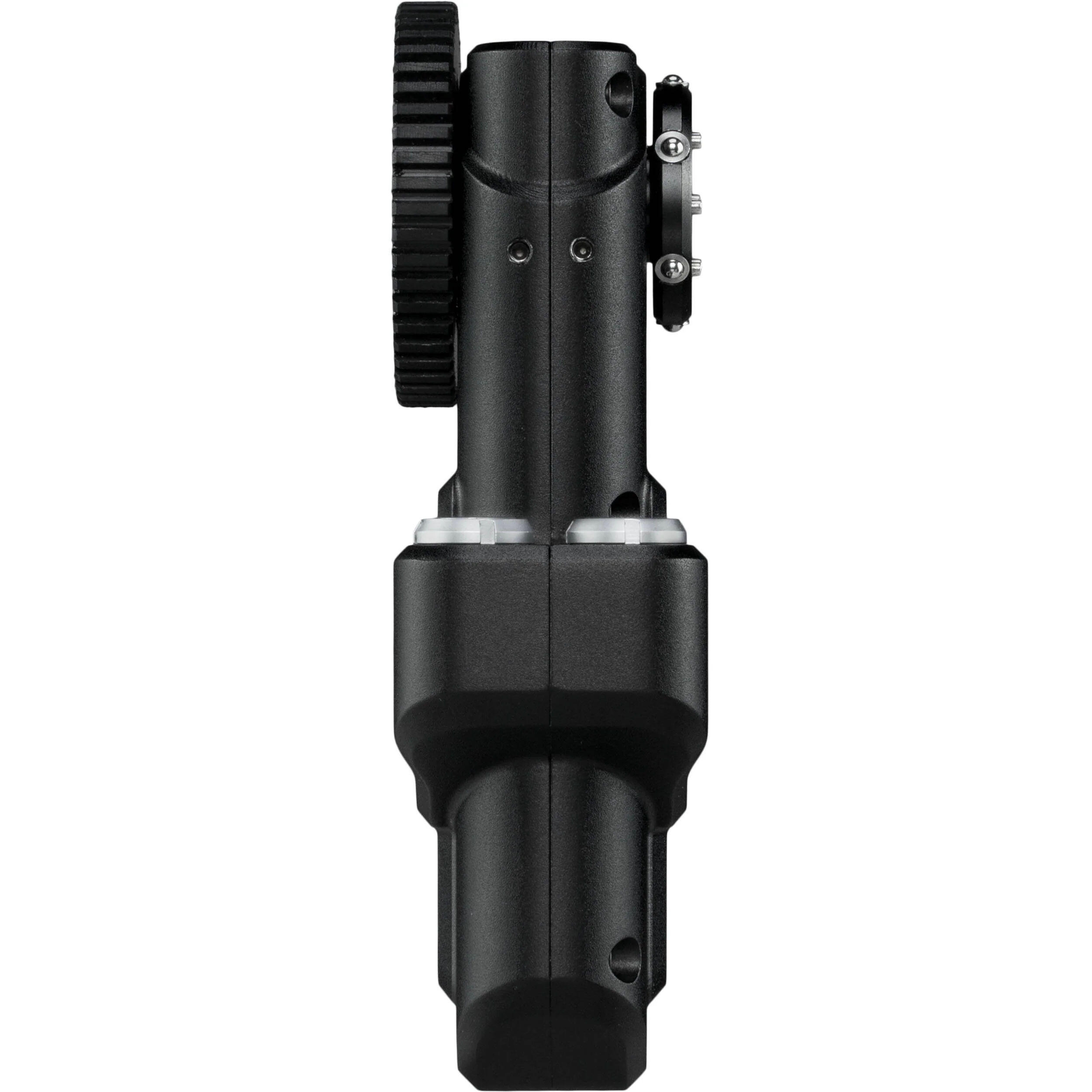

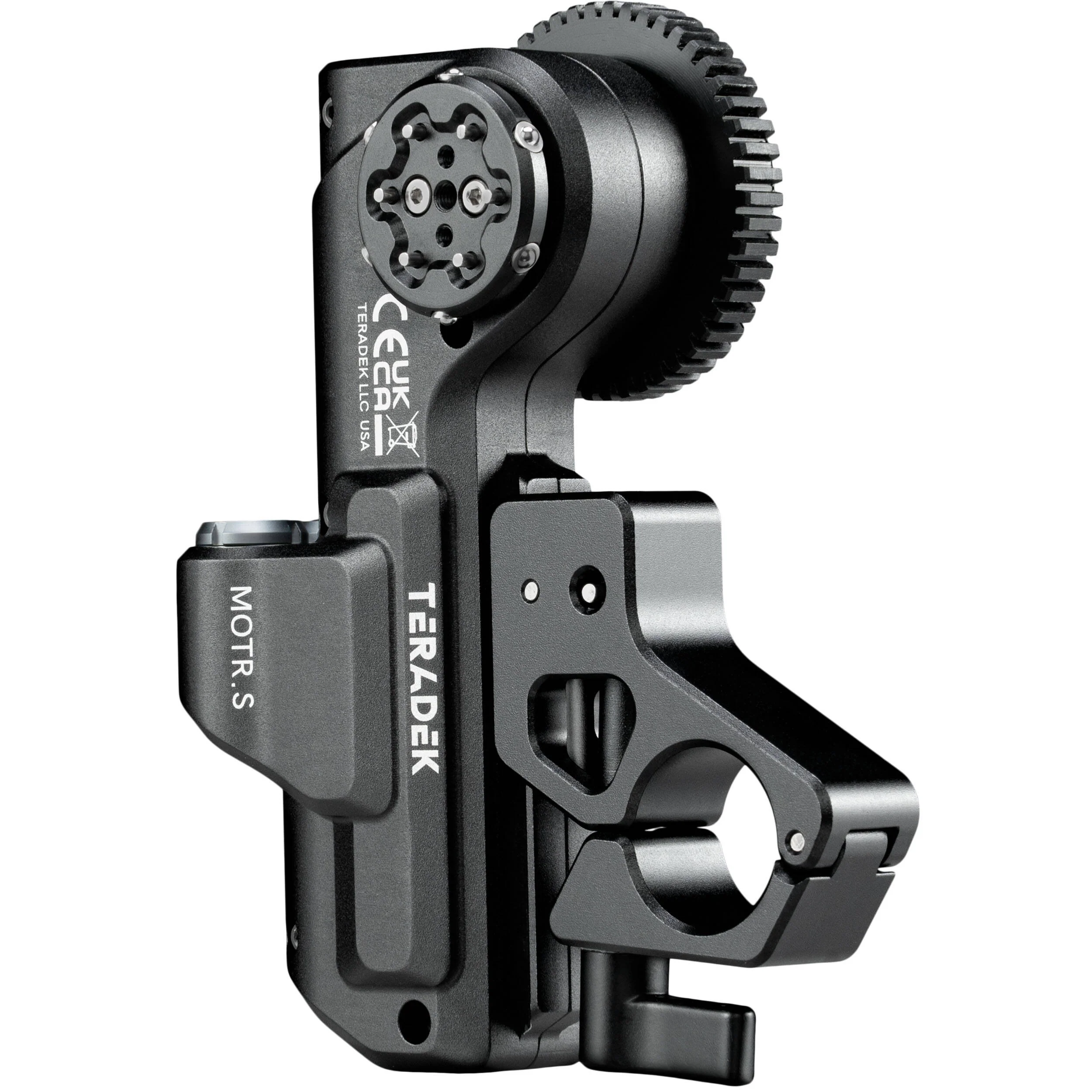

Teradek MOTR.S Overview
Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.
- More compact and lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next gen circuit boards
- New 15/19mm rod clamp with better located handle
- 0.95nm maximum torque, 297 teeth per second
In the Box
- Teradek RT MOTR.S Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket
- Limited 1-Year Manufacturer Warranty
Teradek MOTR.S Specs
| Gear Pitch |
0.8 MOD
|
| Maximum Torque |
0.95 nm (Peak)
0.3 nm (continuous) |
| Maximum Speed |
297 teeth per second
|
| Connectors |
2 x 0B 4-Pin
|
| Power Source |
Plug-In Power
|
| DC Input Power |
7 to 32 VDC
|
| Operating Current |
1 A (Standby)
2 A (Maximum) |
| Environmental Protection |
No
|
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Mounting |
1 x 15mm Rod Clamp
1 x 19mm Rod Clamp |
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.2 x 2.2 x 1.2" / 106 x 56 x 31Â mm
|
| Weight |
6.5Â oz / 184Â g
|
| Package Weight |
0.57 lb
|
| Box Dimensions (LxWxH) |
6.4 x 4.1 x 3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
