Teradek Prism Flex MK II Overview

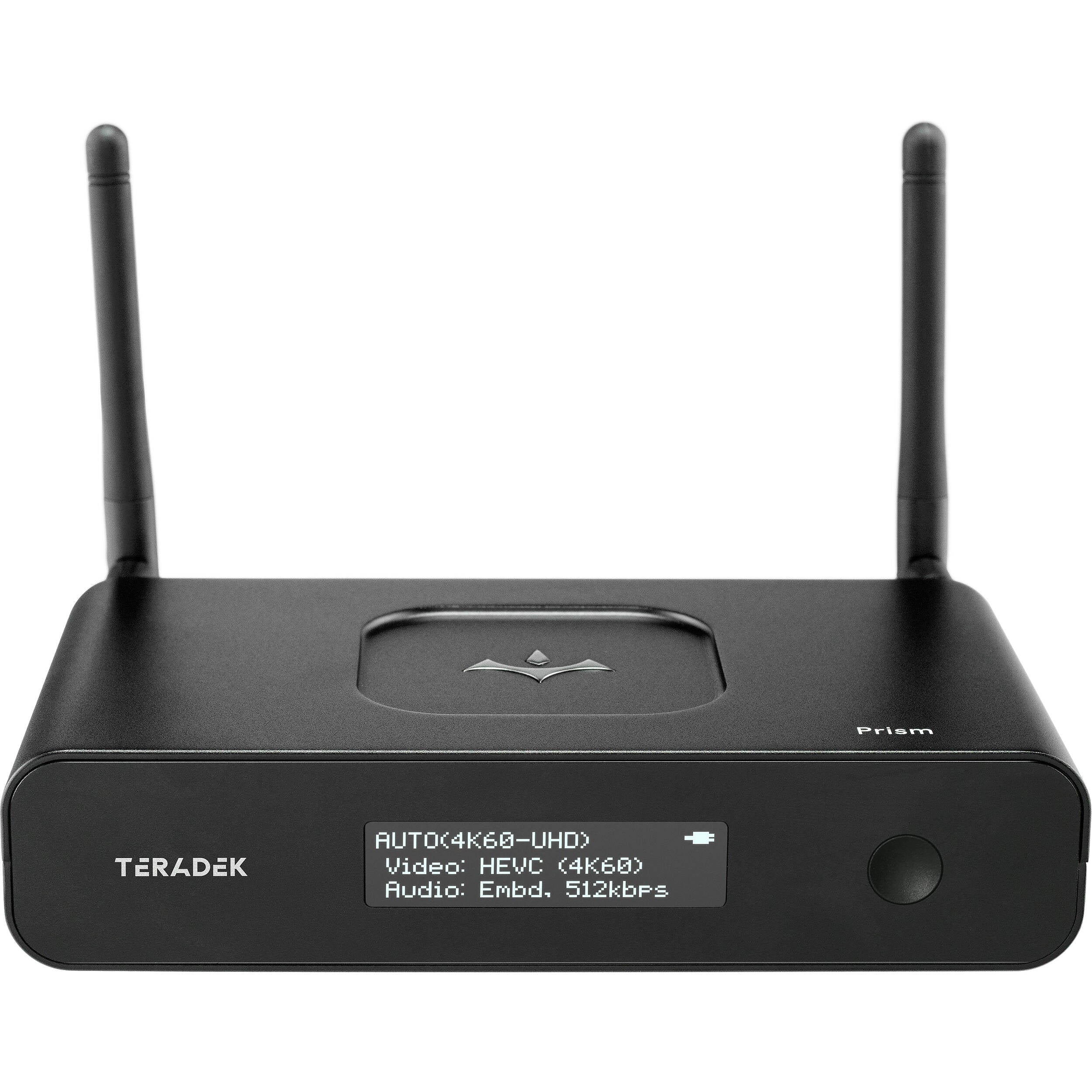

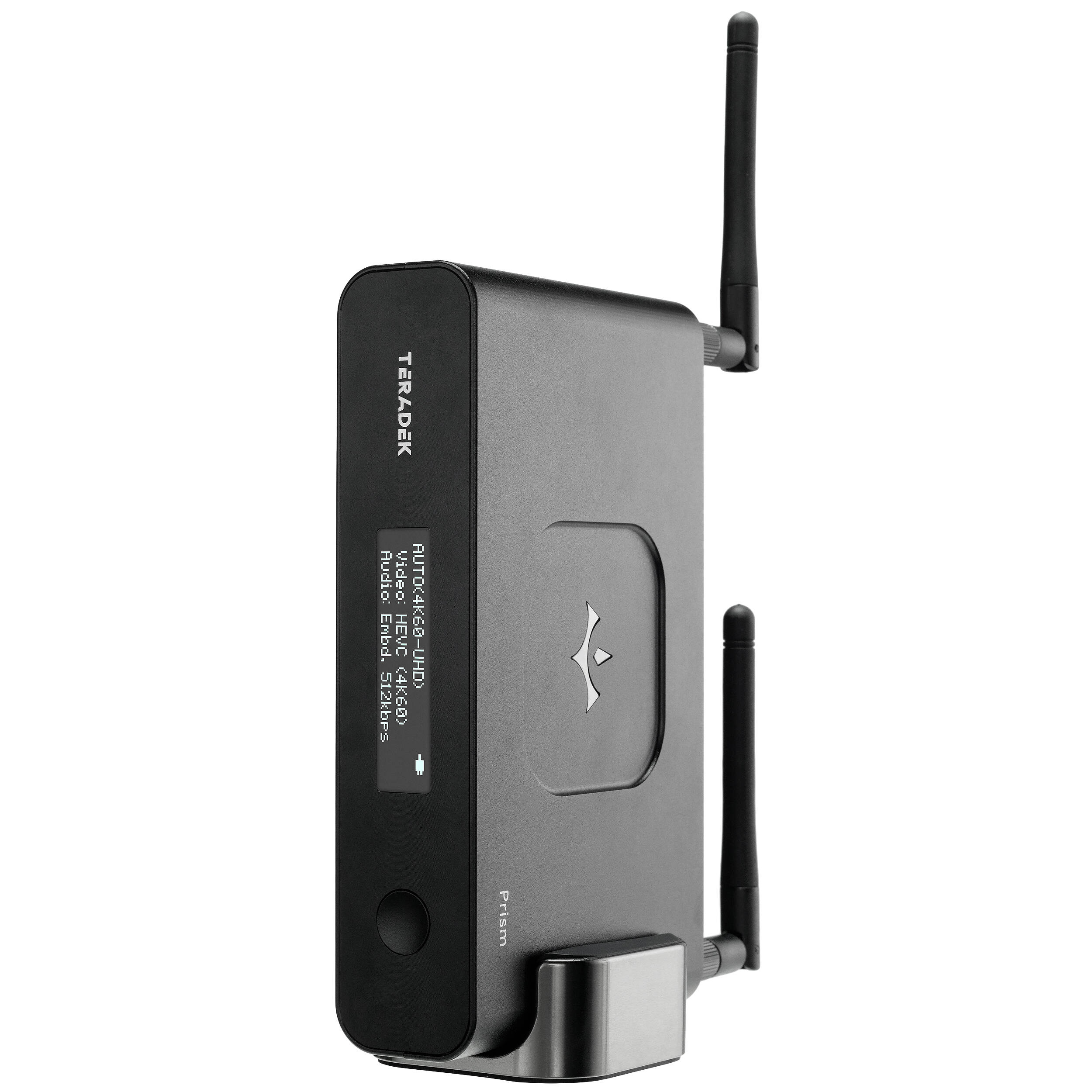

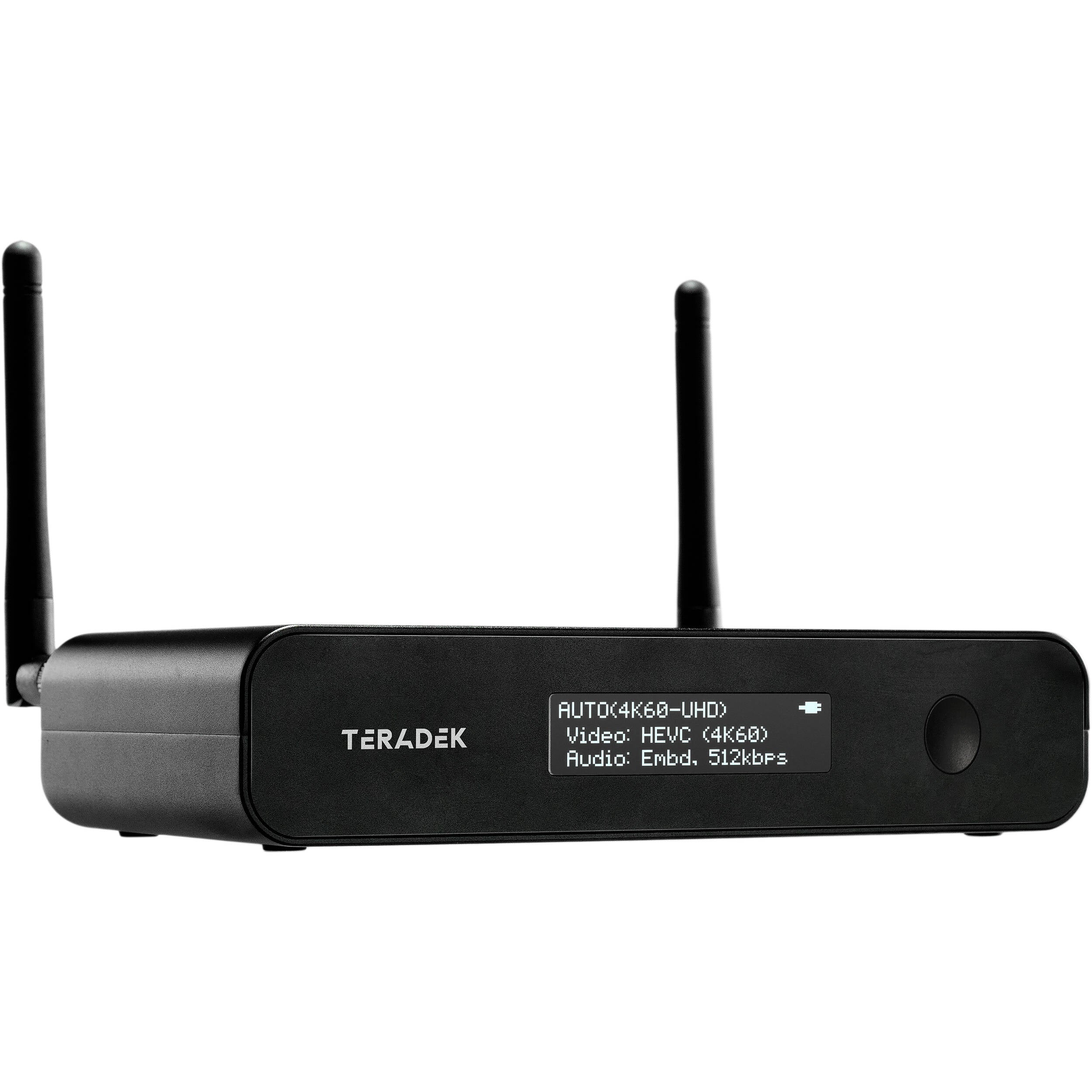

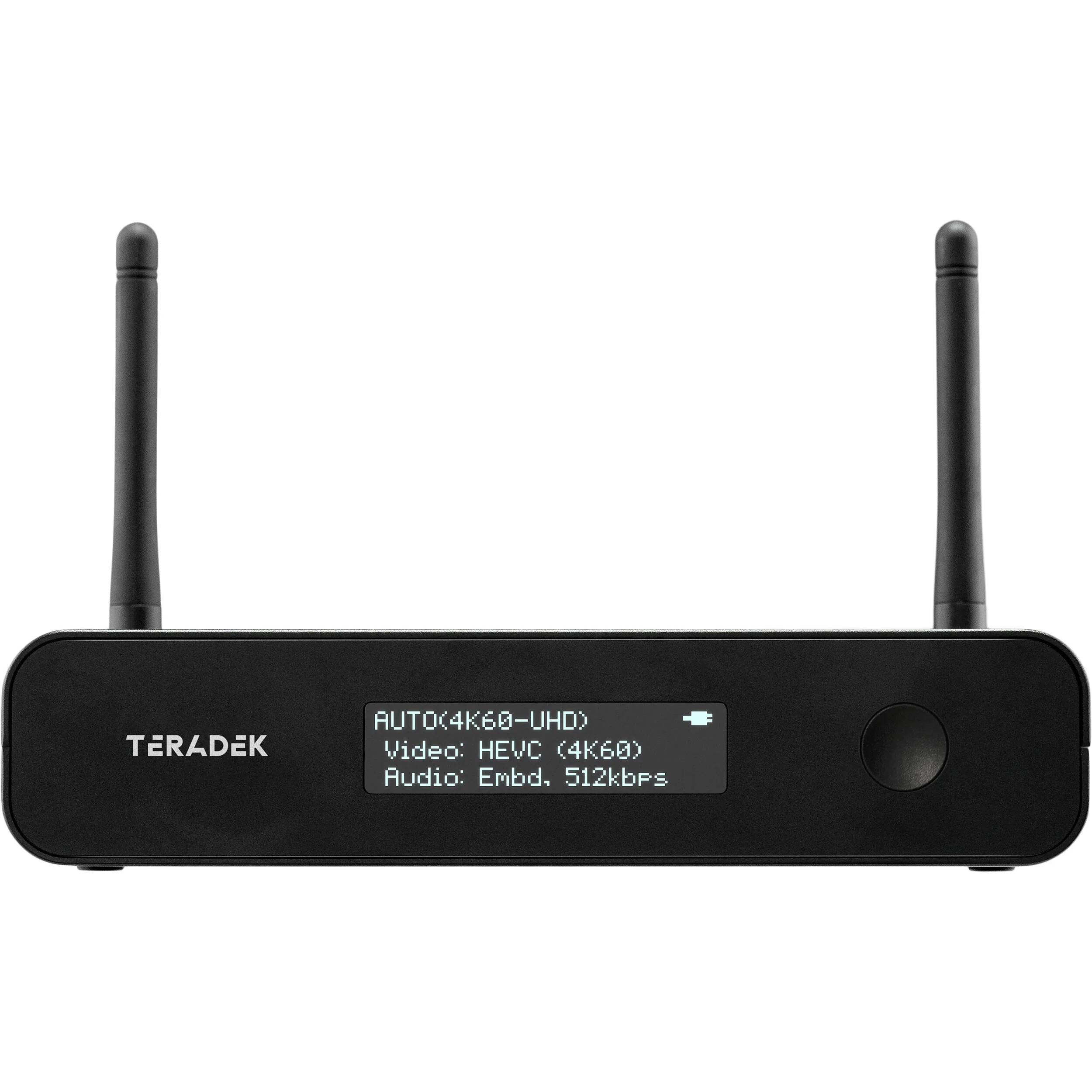

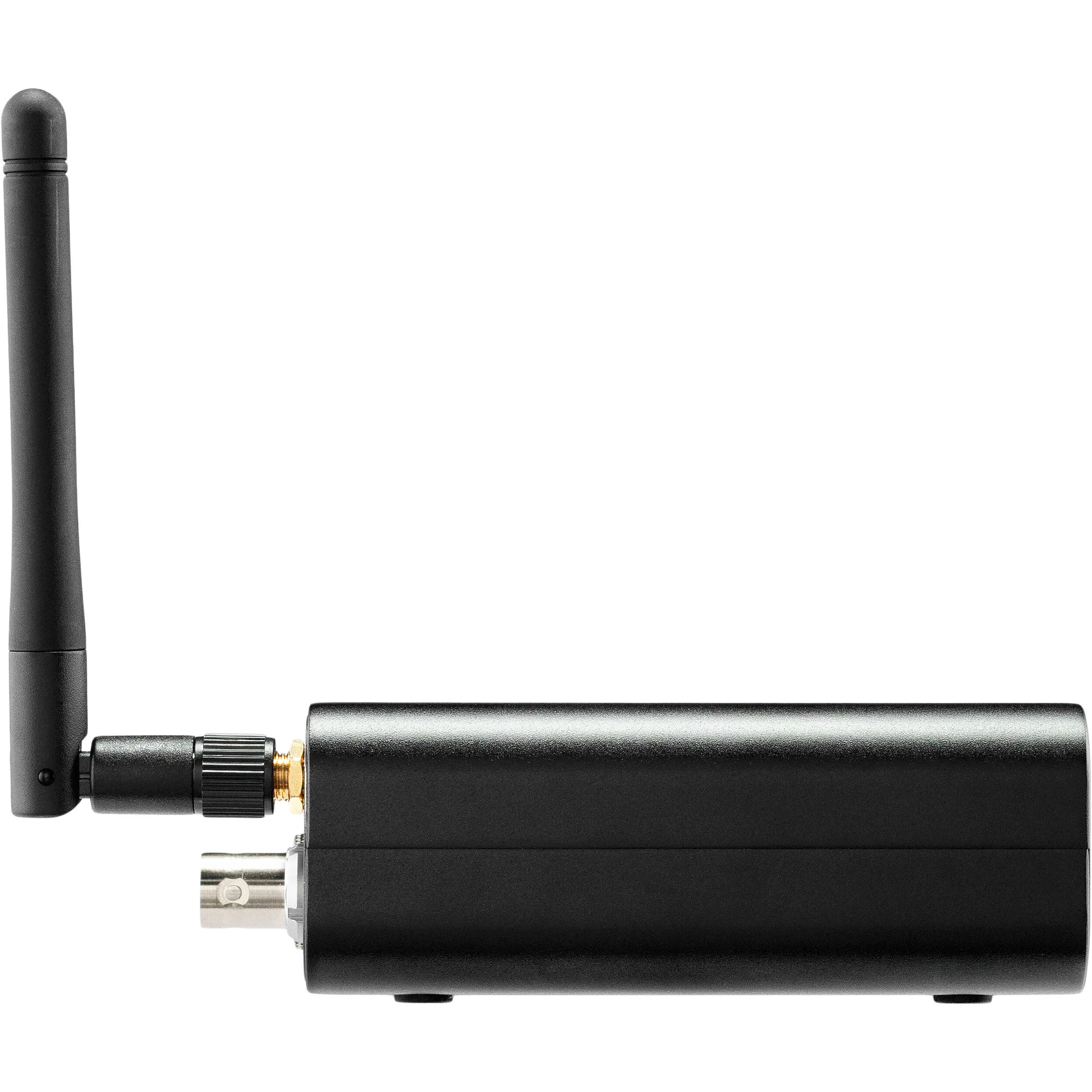

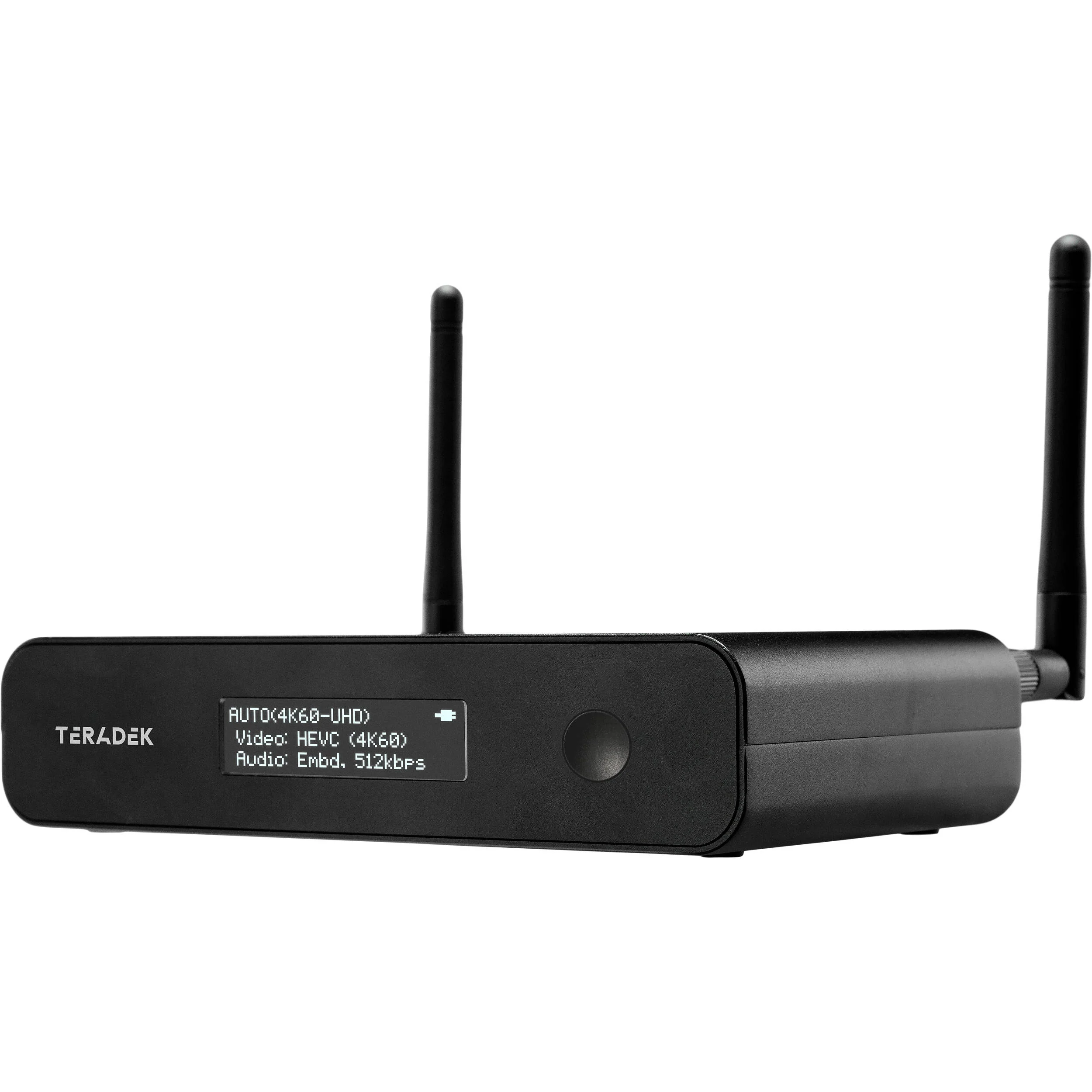

The Prism Flex Mk II HEVC/AVC Decoder from Teradek boasts built-in network bonding with Wi-Fi, Ethernet, and cellular support as well as a compact design that allows it to easily integrate into any workflow. It can be placed on a tabletop, atop a camera, or nestled between a video switcher and audio mixer, and it is capable of decoding up to DCI 4K60 video with impressive 10-bit 4:2:2 image fidelity thanks to the 250 kb/s to 85 Mb/s video bitrate range. It also supports a 32 to 512 kb/s audio bitrate with a 48 kHz sample rate and up to eight channels of audio.Â
The Prism Flex Mk II features a built-in scaler and deinterlacer and an OLED status display with intuitive control buttons for easy navigation. A wide range of streaming protocols, including TRT, SRT, MPEG-TS, RTSP/RTP, and RTMP(S), enhance the unit's flexibility. It can be seamlessly connected to Teradek's Core Cloud platform or a private SDK, and it supports HDR, keeping in step with modern color reproduction technologies. It is constructed from sturdy milled aluminum for extended durability.
Items Included
- Teradek Prism Flex Mk II HEVC/AVC Decoder
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Transmitters & Receivers
Additional Resources
Firmware Updates
v2.22, Nov ' 24
Teradek Prism Flex MK II Specs
| IP Video |
H.264/H.265:
720 x 480 to 4096 x 2160 (85 Mb/s) Decoding |
| IP Audio |
AAC-LC: 32 to 512 Kb/s Decoding
|
| Video I/O |
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Output
1x HDMI (HDMI 2.0) Output |
| Embedded Audio |
HDMI/SDI Input: 8-Channel
HDMI/SDI Output: 8-Channel |
| Power Consumption |
(18 W)
|
| Display |
OLED
|
| IP Video |
H.264/H.265:
720 x 480 to 4096 x 2160 (85 Mb/s) Decoding |
| IP Audio |
AAC-LC: 32 to 512 Kb/s Decoding
|
| Transport Protocols |
DHCP, HTTP, IGMP, RTMP, RTMPS, RTP, RTSP, SRT, SSL, TCP, TCP/IP, UDP
|
| Compatible Services |
Facebook Live, YouTube Live
|
| Wireless |
Wi-Fi 6 (802.11ax)
*Built-In |
| Wi-Fi |
802.11a/b/g; Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
|
| Bluetooth |
No
|
| Cellular Support |
5G NR via Unspecified SIM Type
|

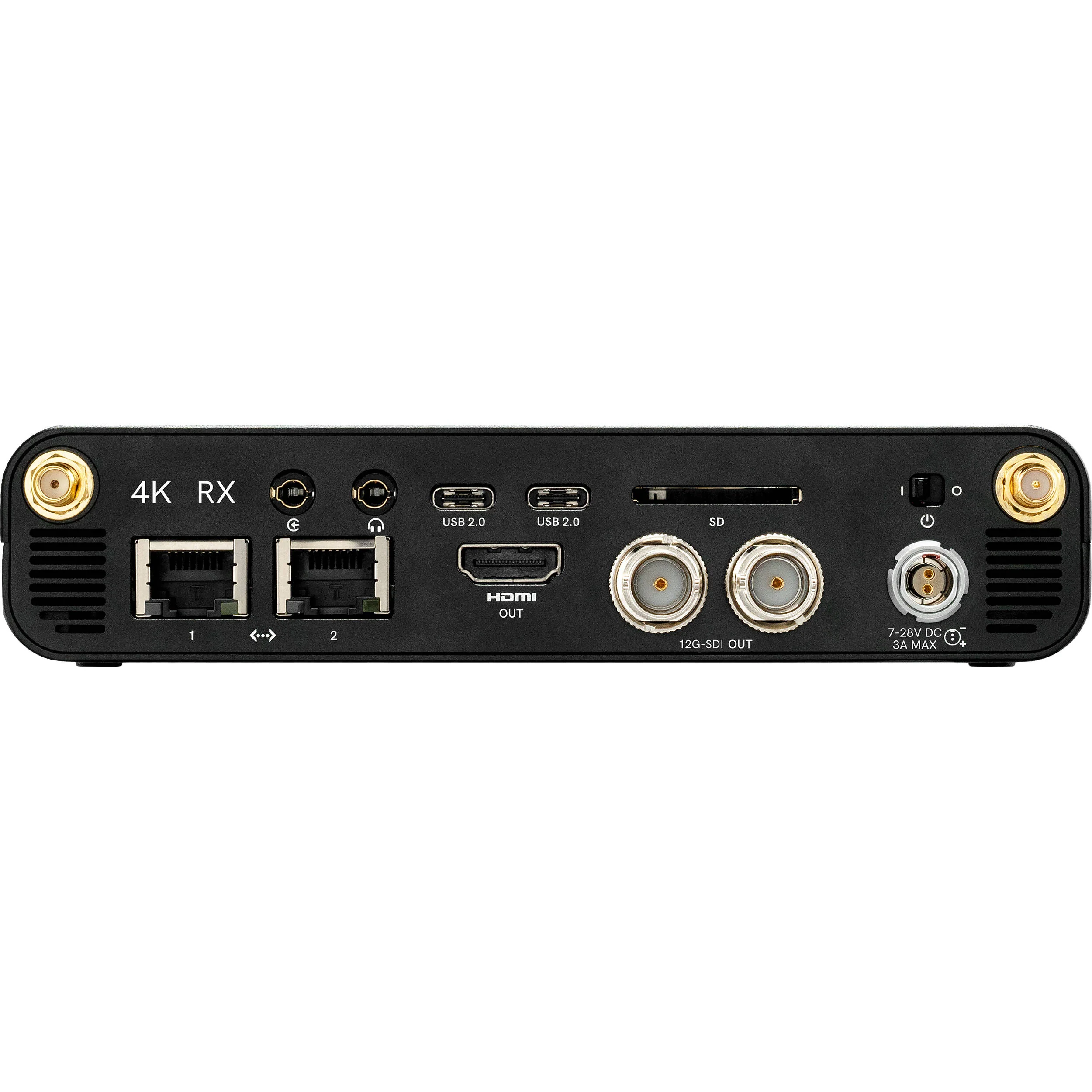

| Video I/O |
1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Output
1x HDMI (HDMI 2.0) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
|
| Other I/O |
2x USB-C 2.0
2x RJ45 HDBaseT Input/Output |
| Embedded Audio |
HDMI/SDI Input: 8-Channel
HDMI/SDI Output: 8-Channel |
| Power I/O |
1x LEMO 2-Pin (6 to 28 VDC) Input
|
| Power Consumption |
(18 W)
|
| Display |
OLED
|
| Materials |
Aluminum
|
| Dimensions |
6.25 x 3.6 x 1.4" / 158.75 x 91.4 x 35.6Â mm
|
| Weight |
11.6Â oz / 328.9Â g
|
| Package Weight |
3.195 lb
|
| Box Dimensions (LxWxH) |
9.1 x 6.7 x 5.9"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
