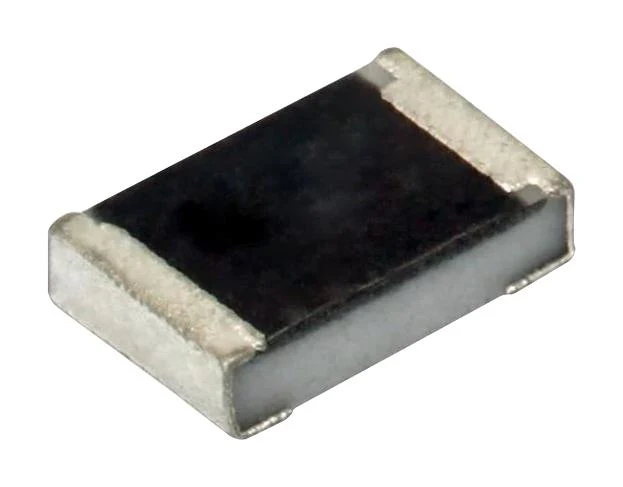

![TE Connectivity RN73C2A499KBTDF SMD Chip Resistor 499 Kohm ± 0.1% 100 mW 0805 [2012 Metric] Thin Film Precision](https://img.tanotishq.shop/images/product/te-connectivity-rn73c2a499kbtdf-smd-chip-resistor-499-kohm-plusmn-0-1-100-mw-0805-2012-metric-thin-film-precision-1.jpg)
$0.39
Original: $1.31
-70%TE Connectivity RN73C2A499KBTDF SMD Chip Resistor 499 Kohm ± 0.1% 100 mW 0805 [2012 Metric] Thin Film Precision—
$1.31
$0.39The Story
The RN73C2A499KBTDF from TE Connectivity is RN73 series high stability 499Kohm thin film (nichrome) precision chip resistor. Value of resistance restricted to the E96 and E24 value grids. This resistor is produced with three sputtered layers giving optimum performance. This resistor has an accurate and uniform physical dimension to facilitate placement.
- Available in 0805 [2012 Metric] chip size
- Resistance tolerance is ±0.1%
- Maximum operating voltage is 100V
- ±10ppm/°C temperature coefficient
- Operating temperature range from -55°C to +155°C
- Insulation resistance is 1000Mohm
- Stability of 0.5%
- Rated power of 0.1W at 70°C
- Electroplated 100% matte Sn finish
Other details
| Brand | TE CONNECTIVITY |
| Part Number | RN73C2A499KBTDF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The RN73C2A499KBTDF from TE Connectivity is RN73 series high stability 499Kohm thin film (nichrome) precision chip resistor. Value of resistance restricted to the E96 and E24 value grids. This resistor is produced with three sputtered layers giving optimum performance. This resistor has an accurate and uniform physical dimension to facilitate placement.
- Available in 0805 [2012 Metric] chip size
- Resistance tolerance is ±0.1%
- Maximum operating voltage is 100V
- ±10ppm/°C temperature coefficient
- Operating temperature range from -55°C to +155°C
- Insulation resistance is 1000Mohm
- Stability of 0.5%
- Rated power of 0.1W at 70°C
- Electroplated 100% matte Sn finish
Other details
| Brand | TE CONNECTIVITY |
| Part Number | RN73C2A499KBTDF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
