$2.89
Original: $9.64

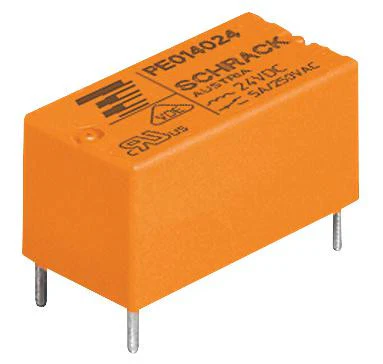

-70%TE CONNECTIVITY PE014F12 General Purpose Relay, PE bistable Series, Power, Latching Single Coil, SPDT, 12 VDC, 5 A—
$9.64
$2.89The Story
The PE014F12 is a miniature PCB Relay with DC coil. This PE-series relay has 1-form-C (1CO) AgNi 90/10 bistable 1-coil contact with flux proof version. Typical applications such as room thermostats, electricity meters, home automation, white goods and battery powered controls.
- PCB terminal type
- Sensitive version with 200mW coil
- -40 to 85°C Ambient temperature range
Applications
Automation & Process Control, HVAC, Power Management, Metering, Consumer Electronics
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | Latching Single Coil |
| Coil Resistance | 650ohm |
| Product Range | PE bistable Series |
| Relay Terminals | Solder |
| Contact Current | 5A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 12VDC |
| Contact Configuration | SPDT |
| Contact Voltage VDC | - |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | PE014F12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
