$1.50
Original: $5.01

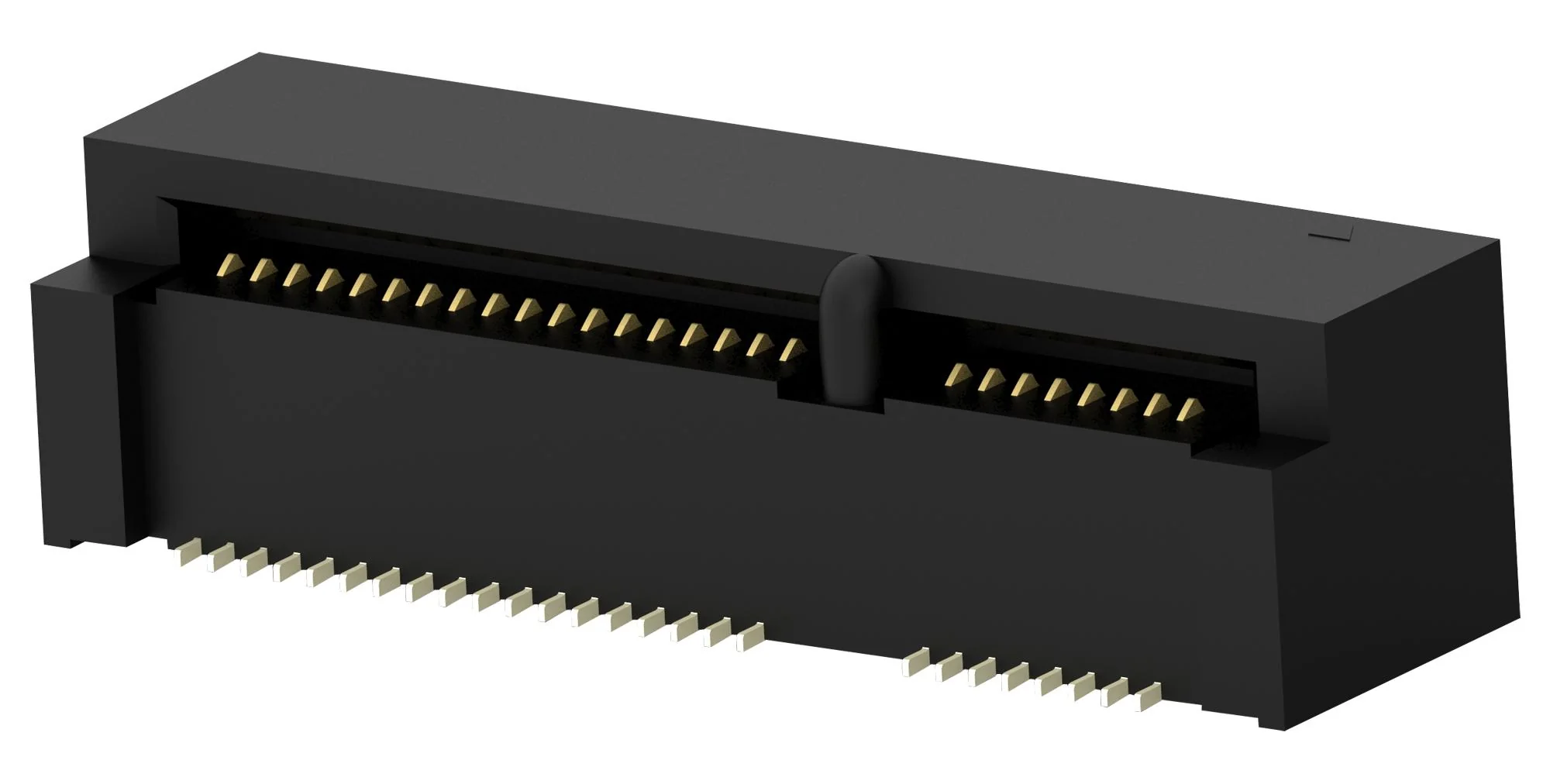

-70%TE Connectivity 1759503-1 Card Edge Connector Mini PCI-E Dual Side 52 Contacts Surface Mount Right Angle Solder—
$5.01
$1.50The Story
This is a Card Edge Connector, Mini PCI-E, Dual Side, 52 Contacts, Surface Mount, Right Angle, Solder product from TE CONNECTIVITY with the model number 1759503-1
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Product details
| Card Edge Connector Type | Dual Side |
| Card Thickness | - |
| No. of Contacts | 52 Contacts |
| Connector Mounting | Surface Mount |
| Connector Body Orientation | Right Angle |
| Contact Termination Type | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating - Mating Side | Gold Plated Contacts |
| Connector Body Material | LCP (Liquid Crystal Polymer) Body |
| Product Range | - |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1759503-1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| One Page Summary EN | |
| CAD Multiple Formats EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
