$137.31
Original: $457.69

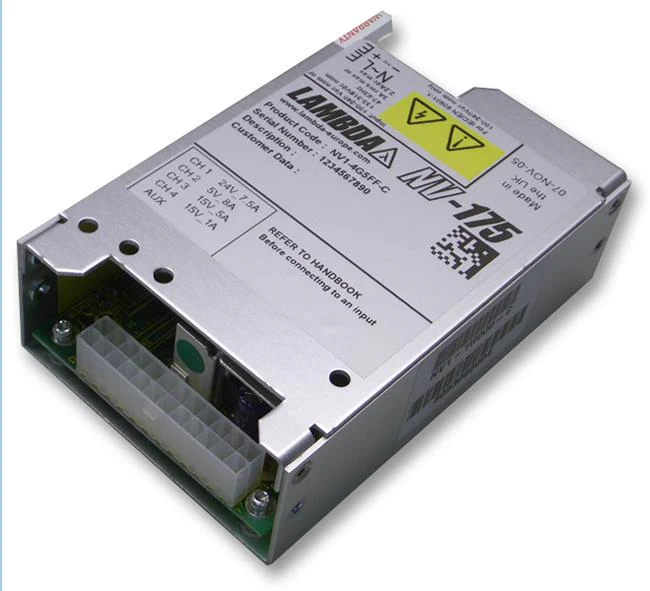

-70%TDK-LAMBDA NV1-4G5FF-C AC/DC Enclosed Power Supply (PSU), Medical, 4 Outputs, 200 W, 24 VDC, 7.5 A, 5 VDC—
$457.69
$137.31The Story
The NV1-4G5FF-C is a 5/±15/24VDC/200W 4-output AC to DC Power Supply with fast acting input fuse and minimises heat in system. No minimum load required and convection cooled. High power density and it is having U-chassis, cover.
- High efficiency
- Low profile
- Less space
- 0 to 50°C Operating temperature range
Applications
Power Management, Sensing & Instrumentation, Medical, Automation & Process Control, Industrial, Security, Communications & Networking
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: Medical |
| No. of Outputs: 4Outputs |
| Output Power Max: 200W |
| Output Voltage - Output 1: 24VDC |
| Output Current - Output 1: 7.5A |
| Output Voltage - Output 2: 5VDC |
| Output Current - Output 2: 8A |
| Output Voltage - Output 3: 15VDC |
| Output Current - Output 3: 5A |
| Output Voltage - Output 4: -15V |
| Output Current - Output 4: 1A |
| Input Voltage VAC: 90V AC to 264V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Product Range: NV Series |
Other details
| Brand | TDK-LAMBDA |
| Part Number | NV1-4G5FF-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
