Tannoy VX6 Overview
Looking for a powerful full-range PA speaker for portable and installation applications? Check out the white Tannoy VXP 6, a single passive 6" loudspeaker offering high output and optimal phase coherence for multipurpose use as a FOH speaker, a floor monitor, or a side fill. The VX 6 is a pint-sized power house well suited for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount.
The speaker utilizes 400W (peak) to drive the 6" PowerDual dual-concentric driver, which provides a frequency response of 92 Hz to 35 kHz with a maximum SPL of 117. The VX 6 offers a 90° conical dispersion for optimum coverage with remarkable forward gain. The vented and internally braced trapezoidal plywood enclosure features an array of mounting points including four M6 inserts, two M6 yoke bracket inserts, and a blanking plate, allowing versatile installation with separately available hardware.
- Full-range multipurpose sound-reinforcement loudspeaker for portable and installation applications
- 100W continuous, 400W peak power
- 6" dual-concentric full-range driver for point-source phase coherence
- Precise 90° dispersion for optimum coverage and forward projection
- Ideal for FOH, floor-monitor, delay, and stage front-fill applications
- Vented and internally braced plywood enclosure
- Finished with hard-wearing semi-matt-black paint
- Rugged powder-coated perforated steel-mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal mounting yoke (available separately)
- Neutrik speakON NL4 and barrier strip connectors for input and link output
- 10-year warranty program
Â
In the Box
- Tannoy VX 6 Dual-Concentric 400W Full-Range 6" Passive Loudspeaker (White)
- Limited 10-Year Warranty
Tannoy VX6 Specs
| Configuration | Passive Full-Range |
| Enclosure Type | Loudspeaker |
| Total Power Capacity | Passive: 400 W Peak (at 8 Ohms) 100 W RMS (at 8 Ohms) |
| Constant Voltage / Transformer Taps | None |
| System Impedance | 8 Ohms |
| Full-Range Driver | 1 x 6" / 15.2Â cm |
| MF Driver | None |
| LF Driver | None |
| Frequency Response | 92 Hz to 35 kHz ±3 dB 80 Hz to 45 kHz -10 dB |
| Maximum SPL | 111 dB (Continuous) 117 dB (Peak) |
| Coverage Angle | 90° (Conical) |
| Directivity | 5.6 (Directivity/Q Factor) 7 (Directivity Index) |
| Speaker Sensitivity | 91 dB |

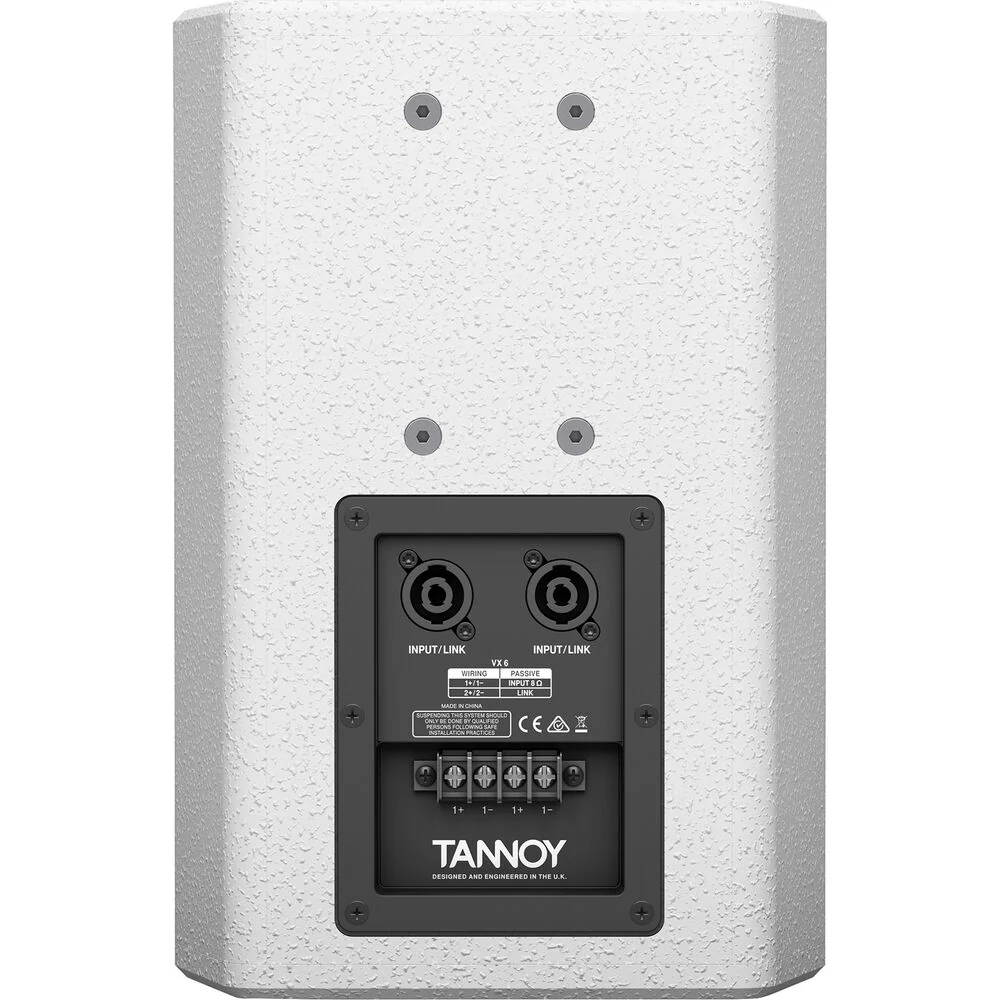

| Audio I/O | 2 x speakON NL4 Male Speaker Input (Lockable) 1 x Barrier Strip 4-Pin Input |
| Filters | None |
| Phase Adjustment | None |
| Mounting | 4 x M6 Fly Point 2 x M6 Bracket Point |
| Handles | None |
| Construction Material | Perforated Metal Grille, Plywood |
| Dimensions | 13.1 x 8.9 x 8.5" / 33.3 x 22.6 x 21.6Â cm |
| Weight | 11Â lb / 5Â kg |
