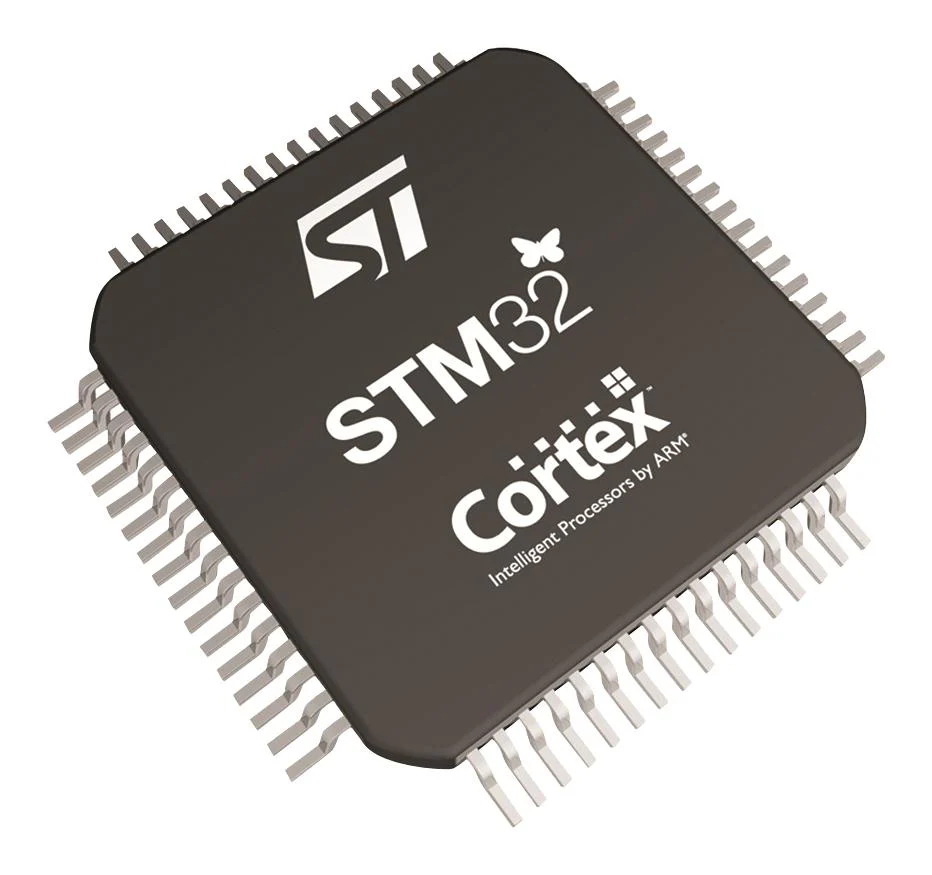

Stmicroelectronics STM32F103RBT7 STM32F103RBT7 ARM MCU Motor Control STM32 Family STM32F1 Series Microcontrollers Cortex-M3 32 bit 72 MHz

The STM32F103RBT7 is a medium density performance line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 72MHz frequency, high speed embedded memories (Flash memory up to 128kB and SRAM up to 20KB) and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard communication interfaces - up to two I²Cs, two SPIs, three USARTs, an USB and a CAN.

• 72MHz Maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
• Single cycle multiplication and hardware division
• Clock, reset and supply management
• POR, PDR and programmable voltage detector (PVD)
• 4 to 16MHz Crystal oscillator
• Internal 8MHz factory trimmed RC
• Internal 40kHz RC
• PLL for CPU clock
• 32kHz Oscillator for RTC with calibration
• Sleep, stop and standby modes
• VBAT supply for RTC and backup registers
• Serial wire debug (SWD) and JTAG interfaces
• 7-channel DMA Controller
• 2 x Watchdog timers (Independent and window)
• SysTick Timer
• CAN interface (2.0B Active)
• USB 2.0 full speed interface
• 96-bit Unique ID

Applications

Motor Drive & Control, Automation & Process Control, Medical, Computers & Computer Peripherals, Communications & Networking, Industrial, Consumer Electronics, Security, Imaging, Video & Vision, HVAC

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32F103RBT7
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
